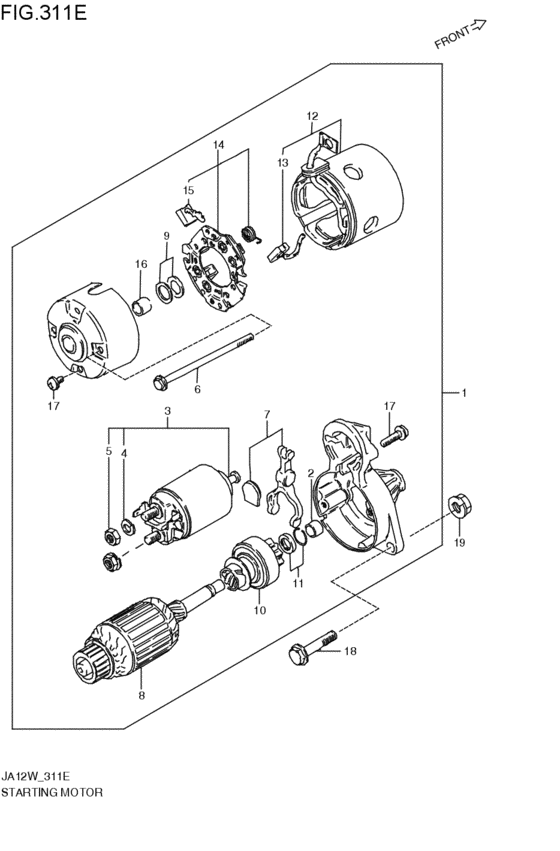

starting motor (1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-82C20-000
モータアッシ,スターティング
カンレイチシヨウ; 3AT; 1995-11-01~1997-04-01 |
31100-82C20-000 |
— | ||
|
2
|
2
31152-79030-000 BEARING,FRONT5MT:イッパンシヨウ; 3AT,5MT; 1995-11-01~1997-04-01 |
31152-79030-000 |
from US $5.11 |
||
|
3
|
3
31220-84030-000 SWITCH ASSY1995-11-01~1997-04-01 |
31220-84030-000 |
from US $165.11 |
||
|
4
|
4
08321-01083-000
Lock washer
1995-11-01~1997-04-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0108B-000 WASHER,LOCK1995-11-01~1997-04-01 |
08321-0108B-000 |
from US $0.76 |
||
|
4
|
4
08321-0108A-000 WASHER,LOCK1995-11-01~1997-04-01 |
08321-0108A-000 |
from US $0.90 |
||
|
5
|
5
08310-00083-000
Nut
1995-11-01~1997-04-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0008B-000 NUT1995-11-01~1997-04-01 |
08310-0008B-000 |
from US $0.96 |
||
|
5
|
5
08310-0008A-000 NUTNut, bead stopper 1995-11-01~1997-04-01 |
08310-0008A-000 |
from US $0.76 |
||
|
6
|
6
31261-82130-000 Bolt1995-11-01~1997-04-01 |
31261-82130-000 |
from US $1.89 |
||
|
7
|
7
31191-82030-000 LEVER ASSYカンレイチシヨウ; 3AT; 1995-11-01~1997-04-01 |
31191-82030-000 |
from US $6.19 |
||
|
8
|
8
31311-82632-000 ARMATUREカンレイチシヨウ; 3AT; 1995-11-01~1997-04-01 |
31311-82632-000 |
from US $179.37 |
||
|
9
|
9
31361-79030-000 WASHER1995-11-01~1997-04-01 |
31361-79030-000 |
from US $5.20 |
||
|
10
|
10
31320-86140-000 CLUTCH ASSY1995-11-01~1997-04-01 |
31320-86140-000 |
US $111.50 |
||
|
11
|
11
31313-80090-000 RING SET1995-11-01~1997-04-01 |
31313-80090-000 |
from US $4.25 |
||
|
12
|
12
31110-83030-000
YOKE ASSY
カンレイチシヨウ; 3AT; 1995-11-01~1997-04-01 |
31110-83030-000 |
— | ||
|
13
|
13
31131-80090-000 BRUSH(+)1995-11-01~1997-04-01 |
31131-80090-000 |
from US $8.84 |
||
|
14
|
14
31173-82130-000 HOLDER ASSY,BRUSH1995-11-01~1997-04-01 |
31173-82130-000 |
from US $43.20 |
||
|
15
|
15
31132-80090-000 BRUSH(-)1995-11-01~1997-04-01 |
31132-80090-000 |
from US $8.60 |
||
|
16
|
16
31172-79030-000 BUSH1995-11-01~1997-04-01 |
31172-79030-000 |
from US $3.38 |
||
|
17
|
17
31136-79030-000 SCREW ASSY1995-11-01~1997-04-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
17
|
17
31175-79030-000 Screw Set1995-11-01~1997-04-01 |
31175-79030-000 |
US $8.16 |
||
|
18
|
18
01550-08503-000
Bolt
1995-11-01~1997-04-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-0850B-000 Bolt1995-11-01~1997-04-01 |
01550-0850B-000 |
from US $1.22 |
||
|
19
|
19
08316-10083-000
Nut
1995-11-01~1997-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1008B-000 NUT1995-11-01~1997-04-01 |
08316-1008B-000 |
from US $0.76 |
||
