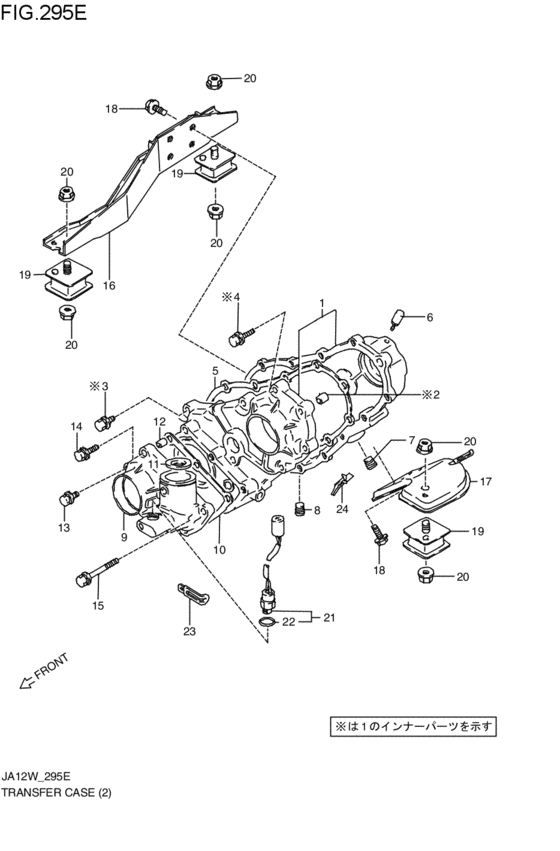

transfer case (C,V; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29510-83050-000 CASE ASSY,T/FC,V; 1995-11-01~1997-04-01 |
29510-83050-000 |
US $366.91 |
||
|
2
|
2
29527-80050-000 PIN,T/F CASE KNOCKC,V; 1995-11-01~1997-04-01 |
29527-80050-000 |
US $1.82 |
||
|
3
|
3
09117-08092-000 BOLT(8X30)C,V; 1995-11-01~1997-04-01 |
09117-08092-000 |
US $19.50 |
||
|
4
|
4
09117-08090-000 BOLT(8X40)C,V; 1995-11-01~1997-04-01 |
09117-08090-000 |
US $21.70 |
||
|
5
|
5
29525-80050-000 GASKET,T/F CASE CENTERC,V; 1995-11-01~1997-04-01 |
29525-80050-000 |
US $2.24 |
||
|
6
|
6
29515-80050-000 PLUG,T/F BREATHERC,V; 1995-11-01~1997-04-01 |
29515-80050-000 |
US $3.52 |
||
|
7
|
7
29945-80051-000 PLUG,OIL FILLERC,V; 1995-11-01~1997-04-01 |
29945-80051-000 |
US $2.24 |
||
|
8
|
8
29946-80051-000 Plug,Oil DrainC,V; 1995-11-01~1997-04-01 |
29946-80051-000 |
US $5.28 |
||
|
9
|
9
29530-80051-000 CASE,T/F,FRC,V; 1995-11-01~1997-04-01 |
29530-80051-000 |
US $241.60 |
||
|
10
|
10
29535-80050-000 GASKET,T/F CASE FRC,V; 1995-11-01~1997-04-01 |
29535-80050-000 |
US $1.60 |
||
|
11
|
11
29541-80051-000 SHEET,T/F SHIFT BALLC,V; 1995-11-01~1997-04-01 |
29541-80051-000 |
from US $11.99 |
||
|
12
|
12
29527-80050-000 PIN,T/F CASE KNOCKC,V; 1995-11-01~1997-04-01 |
29527-80050-000 |
US $1.82 |
||
|
13
|
13
09117-08092-000 BOLT(8X30)C,V; 1995-11-01~1997-04-01 |
09117-08092-000 |
US $19.50 |
||
|
14
|
14
09117-08090-000 BOLT(8X40)C,V; 1995-11-01~1997-04-01 |
09117-08090-000 |
US $21.70 |
||
|
15
|
15
09117-08093-000 BOLT(8X80)C,V; 1995-11-01~1997-04-01 |
09117-08093-000 |
US $32.80 |
||
|
16
|
16
29620-80701-000 BRACKET,T/F MOUNTING,RC,V; 1995-11-01~1997-04-01 |
29620-80701-000 |
US $72 |
||
|
17
|
17
29630-80700-000 BRACKET,T/F MOUNTING,LC,V; 1995-11-01~1997-04-01 |
29630-80700-000 |
US $16.19 |
||
|
18
|
18
01550-08203-000
Bolt
C,V; 1995-11-01~1997-04-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0820B-000 BoltC,V; 1995-11-01~1997-04-01 |
01550-0820B-000 |
from US $0.91 |
||
|
18
|
18
01550-0820A-000 BoltBolt, funnel bracket C,V; 1995-11-01~1997-04-01 |
01550-0820A-000 |
from US $1.12 |
||
|
19
|
19
29610-82C01-000 MOUNTING,T/FC,V; 1995-11-01~1997-04-01 |
29610-82C01-000 |
from US $35.53 |
||
|
20
|
20
08316-10103-000
Nut
C,V; 1995-11-01~1997-04-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1010B-000 NUTC,V; 1995-11-01~1997-04-01 |
08316-1010B-000 |
from US $0.80 |
||
|
21
|
21
37680-80002-000 SWITCH ASSY,4WDC,V; 1995-11-01~1997-04-01 |
37680-80002-000 |
US $32 |
||
|
22
|
22
09280-11002-000 O RING(D:1.9,ID:11.4)C,V; 1995-11-01~1997-04-01 |
09280-11002-000 |
from US $0.97 |
||
|
23
|
23
09404-08420-000 CLAMP(L:120 T:1.0)C,V; 1995-11-01~1997-04-01 |
09404-08420-000 |
from US $2.24 |
||
|
24
|
24
29660-83000-000 PIPE,OIL RECEIVERC,V; 1995-11-01~1997-04-01 |
29660-83000-000 |
US $8.65 |
||
