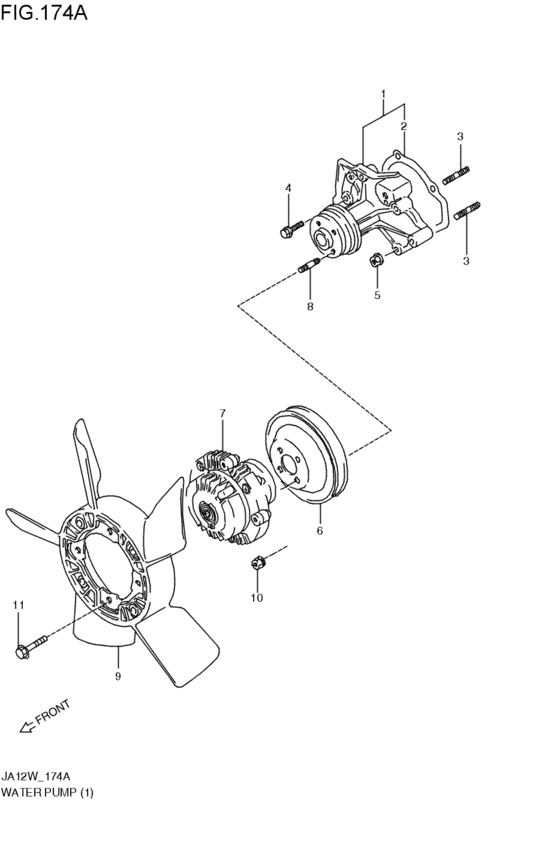

water pump (F6A; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-83841-000 PUMP SET,WATERF6A; 1995-11-01~1997-04-01 |
17400-83841-000 |
US $166.40 |
||
|
2
|
2
17431-73001-000 GASKET,WATER PUMPF6A; 1995-11-01~1997-04-01 |
17431-73001-000 |
from US $1.35 |
||
|
3
|
3
01411-06253-000
Bolt, stud
F6A; 1995-11-01~1997-04-01 |
01411-06253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0625A-000 BOLT,STUDF6A; 1995-11-01~1997-04-01 |
01411-0625A-000 |
from US $0.68 |
||
|
4
|
4
01550-06303-000
Bolt (6x30)
F6A; 1995-11-01~1997-04-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0630A-000 BoltF6A; 1995-11-01~1997-04-01 |
01550-0630A-000 |
from US $1.12 |
||
|
5
|
5
08316-10063-000
Nut
F6A; 1995-11-01~1997-04-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUTF6A; 1995-11-01~1997-04-01 |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
17511-83C00-000 PULLEY,WATER PUMPF6A; 1995-11-01~1997-04-01 |
17511-83C00-000 |
US $52 |
||
|
7
|
7
17120-83C11-000
クラッチアッシ,ファン
F6A; 1995-11-01~1997-04-01 |
17120-83C11-000 |
— | ||
|
8
|
8
09108-06112-000
スタッドボルト
F6A; 1995-11-01~1997-04-01 |
09108-06112-000 |
— | ||
| replacement | |||||
|
8
|
8
09108-06078-000 BOLT,STUDF6A; 1995-11-01~1997-04-01 |
09108-06078-000 |
US $4.48 |
||
|
9
|
9
17110-83C10-000
ファン,エンジンクーリング
F6A; 1995-11-01~1997-04-01 |
17110-83C10-000 |
— | ||
|
10
|
10
08316-10063-000
Nut
F6A; 1995-11-01~1997-04-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUTF6A; 1995-11-01~1997-04-01 |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
01550-06203-000
Bolt
F6A; 1995-11-01~1997-04-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0620B-000 BoltBolt, inspection cap F6A; 1995-11-01~1997-04-01 |
01550-0620B-000 |
from US $0.76 |
||
