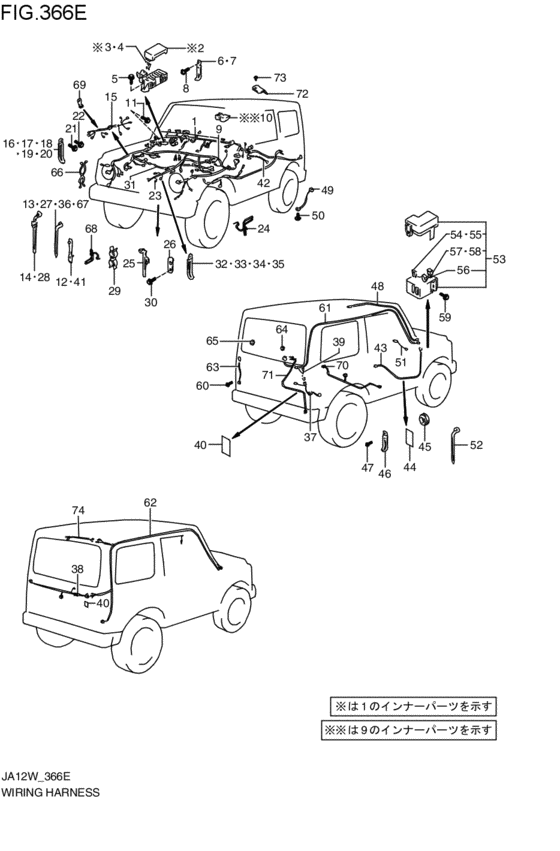

wire ring harness (ワイヤリング ハーネス; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-82CG0-000
ハーネスアッシ,ワイヤリング,NO.1
HA:ユウセイノゾク; CC,HA,XB,XS; 1995-11-01~1995-12-01 |
36610-82CG0-000 |
— | ||
| replacement | |||||
|
1
|
1
36610-82CJ0-000
ハーネスアッシ,ワイヤリング,NO.1
HA:ユウセイノゾク; CC,HA,XB,XS; 1995-11-01~1995-12-01 |
36610-82CJ0-000 |
— | ||
|
1
|
1
36610-82CJ1-000
ハーネスアッシ,ワイヤリング,NO.1
HA:ユウセイノゾク; CC,HA,XB,XS; 1995-12-01~1996-06-01 |
36610-82CJ1-000 |
— | ||
|
1
|
1
36610-82CJ2-000
ハーネスアッシ,ワイヤリング,NO.1
HA:ユウセイノゾク; CC,HA,XB,XS; 1996-06-01~1997-04-01 |
36610-82CJ2-000 |
— | ||
|
1
|
1
36610-82CL2-000
ハーネスアッシ,ワイヤリング,NO.1
ユウセイ; HA; 1995-11-01~1997-04-01 |
36610-82CL2-000 |
— | ||
|
2
|
2
36717-82C00-000
COVER,FUSE BOX
1995-11-01~1997-04-01 |
36717-82C00-000 |
— | ||
|
3
|
3
09481-15101-000 FUSE(15A)Fuse (15a) 1995-11-01~1997-04-01 |
09481-15101-000 |
from US $1.28 |
||
|
4
|
4
09481-30102-000
フューズ,30A
1995-11-01~1997-04-01 |
09481-30102-000 |
— | ||
| replacement | |||||
|
4
|
4
09481-30101-000 FUSE(30A)1995-11-01~1997-04-01 |
09481-30101-000 |
from US $1.22 |
||
|
5
|
5
09115-06001-000
Bolt, lh
1995-11-01~1997-04-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
5
|
5
09115-06005-000 BOLT(6X16)1995-11-01~1997-04-01 |
09115-06005-000 |
US $1.28 |
||
|
6
|
6
09404-06431-000
CLAMP(L:65)
1995-11-01~1997-04-01 |
09404-06431-000 |
— | ||
| replacements | |||||
|
6
|
6
09404-06432-000
CLAMP(L:65)
1995-11-01~1997-04-01 |
09404-06432-000 |
— | ||
|
6
|
6
09404-06039-000 Clamp(L:65)1995-11-01~1997-04-01 |
09404-06039-000 |
from US $1.82 |
||
|
6
|
6
09404-06038-000 Clamp(L:65)1995-11-01~1997-04-01 |
09404-06038-000 |
from US $2.40 |
||
|
7
|
7
09404-06433-000
CLAMP(L:80)
1995-11-01~1997-04-01 |
09404-06433-000 |
— | ||
| replacements | |||||
|
7
|
7
09404-06434-000
CLAMP(L:80 T:1.0)
1995-11-01~1997-04-01 |
09404-06434-000 |
— | ||
|
7
|
7
09404-06436-000 Clamp(L:80)1995-11-01~1997-04-01 |
09404-06436-000 |
from US $2.13 |
||
|
7
|
7
09404-06036-000 Clamp(L:80)1995-11-01~1997-04-01 |
09404-06036-000 |
from US $1.82 |
||
|
8
|
8
03541-05163-000
Screw
1995-11-01~1997-04-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
8
|
8
03541-0516A-000 SCREW1995-11-01~1997-04-01 |
03541-0516A-000 |
from US $0.76 |
||
|
9
|
9
36620-82CF0-000
ハーネスアッシ,ワイヤリング,NO.2
HA:ユウセイノゾク; CC,HA; 1995-11-01~1996-06-01 |
36620-82CF0-000 |
— | ||
| replacement | |||||
|
9
|
9
36621-80CV0-000
WIRE,JOINT
HA:ユウセイノゾク; CC,HA; 1995-11-01~1996-06-01 |
36621-80CV0-000 |
— | ||
|
9
|
9
36620-82CF1-000
ハーネスアッシ,ワイヤリング,NO.2
HA:ユウセイノゾク; CC,HA; 1996-06-01~1997-04-01 |
36620-82CF1-000 |
— | ||
|
9
|
9
36620-83C21-000
ハーネスアッシ,ワイヤリング,NO.2
ユウセイ,エアコンナシ; 3AT:HA; 1995-11-01~1997-04-01 |
36620-83C21-000 |
— | ||
|
9
|
9
36620-83C31-000
ハーネスアッシ,ワイヤリング,NO.2
ユウセイ,エアコンツキ; 3AT:HA; 1995-11-01~1997-04-01 |
36620-83C31-000 |
— | ||
|
10
|
10
33553-52E00-000 FILTER,NOISE SUPPR1995-11-01~1997-04-01 |
33553-52E00-000 |
US $57.76 |
||
|
11
|
11
09129-06002-000 SCREW(6X12)1995-11-01~1997-04-01 |
09129-06002-000 |
US $0.96 |
||
|
12
|
12
09407-05403-000 CLAMP,L:881995-11-01~1997-04-01 |
09407-05403-000 |
from US $0.91 |
||
|
13
|
13
09407-12404-000 CLAMP(L:140)1995-11-01~1997-04-01 |
09407-12404-000 |
US $2.08 |
||
|
15
|
15
36650-82C20-000
ハーネスアッシ,ワイヤリング,エンジン
F6A; 1995-11-01~1997-04-01 |
36650-82C20-000 |
— | ||
|
16
|
16
09404-06432-000
CLAMP(L:65)
F6A; 1995-11-01~1997-04-01 |
09404-06432-000 |
— | ||
|
17
|
17
09404-06435-000 CLAMP(L:135)F6A; 1995-11-01~1997-04-01 |
09404-06435-000 |
from US $2.13 |
||
|
18
|
18
09404-08419-000 CLAMP(L:80)F6A; 1995-11-01~1997-04-01 |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
18
|
18
09404-08422-000 Clamp,wiring HarnessF6A; 1995-11-01~1997-04-01 |
09404-08422-000 |
from US $3.62 |
||
|
19
|
19
09404-08420-000 CLAMP(L:120 T:1.0)F6A; 1995-11-01~1997-04-01 |
09404-08420-000 |
from US $2.24 |
||
|
20
|
20
09404-08420-000 CLAMP(L:120 T:1.0)F6A; 1995-11-01~1997-04-01 |
09404-08420-000 |
from US $2.24 |
||
|
21
|
21
01550-06123-000
Bolt
F6A; 1995-11-01~1997-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0612B-000 BoltBolt, clamp F6A; 1995-11-01~1997-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
21
|
21
01550-0612A-000 BoltF6A; 1995-11-01~1997-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
22
|
22
01580-06123-000
Bolt
F6A; 1995-11-01~1997-04-01 |
01580-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01580-0612B-000 BoltF6A; 1995-11-01~1997-04-01 |
01580-0612B-000 |
US $0.96 |
||
|
22
|
22
01580-0612A-000 BoltF6A; 1995-11-01~1997-04-01 |
01580-0612A-000 |
from US $0.91 |
||
|
24
|
24
36659-80C00-000
クランプ,エンジン/ミッションハーネス
F6A; 1996-03-01~1997-04-01 |
36659-80C00-000 |
— | ||
|
31
|
31
36660-82C20-000
ハーネスアッシ,ワイヤリング,ミッション
ユウセイ; 3AT:HA; 1995-11-01~1997-04-01 |
36660-82C20-000 |
— | ||
|
32
|
32
09404-08206-000 CLAMP(L:65 T:0.8)Clamp 3AT; 1995-11-01~1997-04-01 |
09404-08206-000 |
from US $1.28 |
||
|
33
|
33
09404-08206-000 CLAMP(L:65 T:0.8)Clamp 3AT; 1995-11-01~1997-04-01 |
09404-08206-000 |
from US $1.28 |
||
|
34
|
34
09404-08419-000 CLAMP(L:80)3AT; 1995-11-01~1997-04-01 |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
34
|
34
09404-08422-000 Clamp,wiring Harness3AT; 1995-11-01~1997-04-01 |
09404-08422-000 |
from US $3.62 |
||
|
38
|
38
36840-82C00-000
ワイヤ,バックドア
ユウセイ; HA; 1995-11-01~1997-04-01 |
36840-82C00-000 |
— | ||
|
40
|
40
36930-82010-000 COVER,HARNESSCover, roof wire ユウセイ; HA; 1995-11-01~1997-04-01 |
36930-82010-000 |
from US $1.73 |
||
|
42
|
42
36822-80C00-000
ワイヤ,フューエルゲージ
1995-11-01~1997-04-01 |
36822-80C00-000 |
— | ||
|
43
|
43
36823-80C10-000
ワイヤ,ベルト/パーキングスイッチ
CC,HA,XB,XS,XC,YC,SE; 1995-11-01~1997-04-01 |
36823-80C10-000 |
— | ||
|
44
|
44
36930-82010-000 COVER,HARNESSCover, roof wire 1995-11-01~1997-04-01 |
36930-82010-000 |
from US $1.73 |
||
|
45
|
45
09308-14006-000 GROMMET1995-11-01~1997-04-01 |
09308-14006-000 |
from US $2.88 |
||
|
46
|
46
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire 1995-11-01~1997-04-01 |
09404-06429-000 |
from US $1.52 |
||
|
47
|
47
03111-05123-000
Screw
1995-11-01~1997-04-01 |
03111-05123-000 |
— | ||
| replacement | |||||
|
47
|
47
03111-0512A-000 SCREW1995-11-01~1997-04-01 |
03111-0512A-000 |
from US $0.80 |
||
|
48
|
48
36820-80C00-000
WIRE,ROOM LAMP NO.1
V,W; 1995-11-01~1997-04-01 |
36820-80C00-000 |
— | ||
|
49
|
49
36821-80C00-000
Wire,earth
1995-11-01~1997-04-01 |
36821-80C00-000 |
— | ||
|
50
|
50
09139-05028-000 SCREW(5X14)1995-11-01~1997-04-01 |
09139-05028-000 |
US $1.28 |
||
|
53
|
53
36730-80C10-000
BOX ASSY,MAIN FUSE
F6A; 1995-11-01~1997-04-01 |
36730-80C10-000 |
— | ||
|
54
|
54
09481-15101-000 FUSE(15A)Fuse (15a) 1995-11-01~1997-04-01 |
09481-15101-000 |
from US $1.28 |
||
|
56
|
56
09481-40203-000 FUSE(40A)1995-11-01~1997-04-01 |
09481-40203-000 |
US $56.30 |
||
|
58
|
58
09481-70301-000 FUSE(70A)1995-11-01~1997-04-01 |
09481-70301-000 |
US $64 |
||
|
59
|
59
09138-06040-000 BOLT(6X10)1995-11-01~1997-04-01 |
09138-06040-000 |
US $1.52 |
||
|
60
|
60
03141-05123-000
Screw 5 x 12
1995-11-01~1997-04-01 |
03141-05123-000 |
— | ||
| replacement | |||||
|
60
|
60
03141-0512A-000 SCREWScrew, belt cooling duct 1995-11-01~1997-04-01 |
03141-0512A-000 |
from US $0.76 |
||
|
61
|
61
36890-66700-000
Wire,defogger lead
ユウセイノゾク; HA; 1995-11-01~1997-04-01 |
36890-66700-000 |
— | ||
|
62
|
62
36820-82C00-000
ワイヤ,ルームランプ
ユウセイ; HA; 1995-11-01~1997-04-01 |
36820-82C00-000 |
— | ||
|
63
|
63
36891-66700-000
リードワイヤ,デフォッガアース
V,W; 1995-11-01~1997-04-01 |
36891-66700-000 |
— | ||
|
64
|
64
09308-05011-000 GROMMETHA; 1995-11-01~1997-04-01 |
09308-05011-000 |
US $9.20 |
||
|
65
|
65
09308-06003-000 GROMMETHA; 1995-11-01~1997-04-01 |
09308-06003-000 |
US $16.20 |
||
|
67
|
67
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 3AT:F6A; 1995-11-01~1997-04-01 |
09407-14403-000 |
from US $2.08 |
||
|
68
|
68
36659-80C00-000
クランプ,エンジン/ミッションハーネス
F6A; 1996-03-01~1997-04-01 |
36659-80C00-000 |
— | ||
|
74
|
74
36680-78800-000
ワイヤ,キャリアランプ
ユウセイ; HA; 1995-11-01~1997-04-01 |
36680-78800-000 |
— | ||
