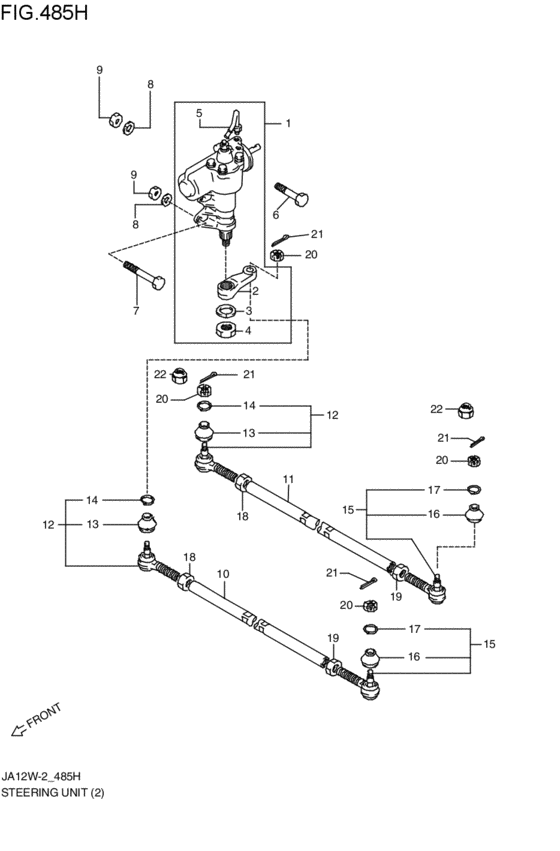

steering unit (パワーステアリングシヨウ; XL,XLL; 1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- F6A
- transmission
- 5MT
- grade
- XL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600-82CA0-000
ボックスアッシ,パワーステアリングギヤ
XL,XLL; 1997-05-01~1998-10-01 |
48600-82CA0-000 |
— | ||
|
2
|
2
48671-82C00-000 ARM,PITMANXL,XLL; 1997-05-01~1998-10-01 |
48671-82C00-000 |
US $109.66 |
||
|
3
|
3
08321-21208-000
Washer,lock 20m
XL,XLL; 1997-05-01~1998-10-01 |
08321-21208-000 |
— | ||
| replacement | |||||
|
3
|
3
48644-80010-000 WASHER,PITMAN ARM LOCKXL,XLL; 1997-05-01~1998-10-01 |
48644-80010-000 |
from US $1.92 |
||
|
4
|
4
48674-63240-000 NUTXL,XLL; 1997-05-01~1998-10-01 |
48674-63240-000 |
from US $3.98 |
||
|
5
|
5
48691-82CA0-000
チューブ,リターン
XL,XLL; 1997-05-01~1998-10-01 |
48691-82CA0-000 |
— | ||
|
6
|
6
01500-12703-000
ボルト
XL,XLL; 1997-05-01~1998-10-01 |
01500-12703-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1270A-000 BoltXL,XLL; 1997-05-01~1998-10-01 |
01500-1270A-000 |
US $1.60 |
||
|
7
|
7
01500-12903-000
New Genuine Part
XL,XLL; 1997-05-01~1998-10-01 |
01500-12903-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-1290A-000 BoltXL,XLL; 1997-05-01~1998-10-01 |
01500-1290A-000 |
US $1.82 |
||
|
8
|
8
08321-01123-000
Washer
XL,XLL; 1997-05-01~1998-10-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCKXL,XLL; 1997-05-01~1998-10-01 |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
08310-00123-000
Nut
XL,XLL; 1997-05-01~1998-10-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUTXL,XLL; 1997-05-01~1998-10-01 |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
48931-82CA0-000
ロッド,ステアリングドラッグ
XL,XLL; 1997-05-01~1998-10-01 |
48931-82CA0-000 |
— | ||
|
11
|
11
48831-82CA0-000
タイロッド,ステアリング
XL,XLL; 1997-05-01~1998-10-01 |
48831-82CA0-000 |
— | ||
|
12
|
12
48820-80002-000
END STEERING RH
ヒダリネジ; XL,XLL; 1997-05-01~1997-12-01 |
48820-80002-000 |
— | ||
| replacement | |||||
|
12
|
12
48820-81A01-000 END,DRAG ROD,RHヒダリネジ; XL,XLL; 1997-05-01~1997-12-01 |
48820-81A01-000 |
from US $47.79 |
||
|
12
|
12
48820-81A00-000 END, ROD RHヒダリネジ; XL,XLL; 1997-12-01~1998-10-01 |
48820-81A00-000 |
US $47.79 |
||
| replacements | |||||
|
12
|
12
04111-3020A-000 PINヒダリネジ; XL,XLL; 1997-12-01~1998-10-01 |
04111-3020A-000 |
from US $0.59 |
||
|
12
|
12
08314-4012A-000 NUTヒダリネジ; XL,XLL; 1997-12-01~1998-10-01 |
08314-4012A-000 |
from US $0.99 |
||
|
12
|
12
48820-81A01-000 END,DRAG ROD,RHヒダリネジ; XL,XLL; 1997-12-01~1998-10-01 |
48820-81A01-000 |
from US $47.79 |
||
|
13
|
13
48806-80000-000
BOOT SET
XL,XLL; 1997-05-01~1998-10-01 |
48806-80000-000 |
— | ||
| replacements | |||||
|
13
|
13
48806-80001-000
Boot Set
XL,XLL; 1997-05-01~1998-10-01 |
48806-80001-000 |
— | ||
|
13
|
13
48800-80810-000 Boot SetXL,XLL; 1997-05-01~1998-10-01 |
48800-80810-000 |
US $32 |
||
|
14
|
14
09401-27402-000 CLIPXL,XLL; 1997-05-01~1998-10-01 |
09401-27402-000 |
from US $1.04 |
||
|
15
|
15
48810-60A00-000
END TIE ROD STEERING
ミギネジ; XL,XLL; 1997-05-01~1997-12-01 |
48810-60A00-000 |
— | ||
| replacement | |||||
|
15
|
15
48810-81A01-000 END,DRAG ROD,Lミギネジ; XL,XLL; 1997-05-01~1997-12-01 |
48810-81A01-000 |
from US $47.39 |
||
|
15
|
15
48810-81A00-000 END, ROD LHミギネジ; XL,XLL; 1997-12-01~1998-10-01 |
48810-81A00-000 |
US $47.39 |
||
| replacements | |||||
|
15
|
15
04111-3020A-000 PINミギネジ; XL,XLL; 1997-12-01~1998-10-01 |
04111-3020A-000 |
from US $0.59 |
||
|
15
|
15
08314-4012A-000 NUTミギネジ; XL,XLL; 1997-12-01~1998-10-01 |
08314-4012A-000 |
from US $0.99 |
||
|
15
|
15
48810-81A01-000 END,DRAG ROD,Lミギネジ; XL,XLL; 1997-12-01~1998-10-01 |
48810-81A01-000 |
from US $47.39 |
||
|
16
|
16
48806-80000-000
BOOT SET
XL,XLL; 1997-05-01~1998-10-01 |
48806-80000-000 |
— | ||
| replacements | |||||
|
16
|
16
48806-80001-000
Boot Set
XL,XLL; 1997-05-01~1998-10-01 |
48806-80001-000 |
— | ||
|
16
|
16
48800-80810-000 Boot SetXL,XLL; 1997-05-01~1998-10-01 |
48800-80810-000 |
US $32 |
||
|
17
|
17
09401-27402-000 CLIPXL,XLL; 1997-05-01~1998-10-01 |
09401-27402-000 |
from US $1.04 |
||
|
18
|
18
09140-16023-000 NUTヒダリネジ; XL,XLL; 1997-05-01~1998-10-01 |
09140-16023-000 |
from US $2.25 |
||
|
19
|
19
09140-16022-000 NUTミギネジ; XL,XLL; 1997-05-01~1998-10-01 |
09140-16022-000 |
from US $2.34 |
||
|
20
|
20
08314-40123-000
Nut
XL,XLL; 1997-05-01~1997-12-01 |
08314-40123-000 |
— | ||
| replacement | |||||
|
20
|
20
08314-4012A-000 NUTXL,XLL; 1997-05-01~1997-12-01 |
08314-4012A-000 |
from US $0.99 |
||
|
21
|
21
04111-30308-000
30 x 30 cotter
XL,XLL; 1997-05-01~1997-12-01 |
04111-30308-000 |
— | ||
| replacement | |||||
|
21
|
21
04111-3030A-000 PINXL,XLL; 1997-05-01~1997-12-01 |
04111-3030A-000 |
from US $0.76 |
||
|
22
|
22
09159-12052-000 NUTXL,XLL; 1997-12-01~1998-10-01 |
09159-12052-000 |
US $1.44 |
||
