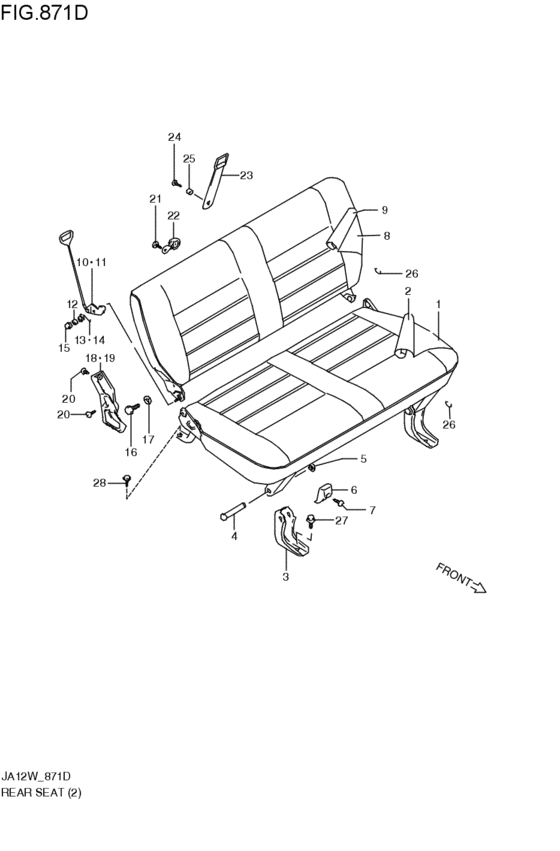

rear seat (XB,XS; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- XS
- air bag
- NAB
- abs
- NABS
- x01
- W
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-82C10-000
クッションサブアッシ,リヤ
XB,XS; 1995-11-01~1997-04-01 |
87105-82C10-000 |
— | ||
|
2
|
2
87180-82C10-F0U
Trim comp,rr seat cush
ブラック; XB,XS; 1995-11-01~1997-04-01 |
87180-82C10-F0U |
— | ||
|
3
|
3
87271-83000-000 MALE, REAR SEAT HINGEXB,XS; 1995-11-01~1997-04-01 |
87271-83000-000 |
from US $5.72 |
||
|
4
|
4
87259-56B10-000 PIN,REAR SEAT HINGEXB,XS; 1995-11-01~1997-04-01 |
87259-56B10-000 |
US $1.76 |
||
|
5
|
5
09148-06005-000
Nut seat moldin
XB,XS; 1995-11-01~1997-04-01 |
09148-06005-000 |
— | ||
| replacement | |||||
|
5
|
5
09148-06008-000 NUTNut, adjuster knob XB,XS; 1995-11-01~1997-04-01 |
09148-06008-000 |
from US $0.83 |
||
|
6
|
6
87195-83000-000
STOPPER,REAR SEAT
XB,XS; 1995-11-01~1997-04-01 |
87195-83000-000 |
— | ||
|
7
|
7
03141-05203-000
スクリュ
XB,XS; 1995-11-01~1997-04-01 |
03141-05203-000 |
— | ||
| replacements | |||||
|
7
|
7
03141-0520B-000 SCREWXB,XS; 1995-11-01~1997-04-01 |
03141-0520B-000 |
US $2.56 |
||
|
7
|
7
03142-0520B-000 SCREWXB,XS; 1995-11-01~1997-04-01 |
03142-0520B-000 |
from US $0.80 |
||
|
8
|
8
87305-82C10-000
バックサブアッシ,リヤ
XB,XS; 1995-11-01~1997-04-01 |
87305-82C10-000 |
— | ||
|
9
|
9
87380-82C10-F0U
トリム,リヤシートバック
ブラック; XB,XS; 1995-11-01~1997-04-01 |
87380-82C10-F0U |
— | ||
|
10
|
10
87840-82C00-000
Lock,rr seat back,r
XB,XS; 1995-11-01~1997-04-01 |
87840-82C00-000 |
— | ||
|
11
|
11
87940-82C00-000
Lock,rr seat back,l
XB,XS; 1995-11-01~1997-04-01 |
87940-82C00-000 |
— | ||
|
12
|
12
87325-83000-000
COLLAR,HINGE BOLT
XB,XS; 1995-11-01~1997-04-01 |
87325-83000-000 |
— | ||
|
13
|
13
83914-73062-000
SPRING,HINGE,R
XB,XS; 1995-11-01~1997-04-01 |
83914-73062-000 |
— | ||
|
14
|
14
83944-73062-000
SPRING,HINGE,L
XB,XS; 1995-11-01~1997-04-01 |
83944-73062-000 |
— | ||
|
15
|
15
08316-20083-000
Nut
XB,XS; 1995-11-01~1997-04-01 |
08316-20083-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-2008A-000 NUTXB,XS; 1995-11-01~1997-04-01 |
08316-2008A-000 |
from US $0.80 |
||
|
16
|
16
09111-08044-000 BOLT(8X16)XB,XS; 1995-11-01~1997-04-01 |
09111-08044-000 |
from US $1.15 |
||
|
17
|
17
85292-82C00-000 WASHER,RR SEAT BACK HINGEXB,XS; 1995-11-01~1997-04-01 |
85292-82C00-000 |
US $1.95 |
||
|
18
|
18
87229-82C00-5PK
COVER,RR SEAT BACK HNG,R
ブラック; XB,XS; 1995-11-01~1997-04-01 |
87229-82C00-5PK |
— | ||
|
19
|
19
87629-82C00-5PK COVER,RR SEAT BACK HNG,Lブラック; XB,XS; 1995-11-01~1997-04-01 |
87629-82C00-5PK |
US $11.33 |
||
|
20
|
20
03241-05083-000
Screw
XB,XS; 1995-11-01~1997-04-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0508A-000 SCREWXB,XS; 1995-11-01~1997-04-01 |
03241-0508A-000 |
US $0.80 |
||
|
21
|
21
03242-05163-000
Screw
XB,XS; 1995-11-01~1997-04-01 |
03242-05163-000 |
— | ||
| replacement | |||||
|
21
|
21
03241-0516A-000 SCREWXB,XS; 1995-11-01~1997-04-01 |
03241-0516A-000 |
from US $0.76 |
||
|
22
|
22
87328-82C00-000
Clamp,hinge lock handle
XB,XS; 1995-11-01~1997-04-01 |
87328-82C00-000 |
— | ||
|
23
|
23
87293-83300-000
BAND,RR SEAT STOPPER FR
XB,XS; 1995-11-01~1997-04-01 |
87293-83300-000 |
— | ||
|
24
|
24
03242-05163-000
Screw
XB,XS; 1995-11-01~1997-04-01 |
03242-05163-000 |
— | ||
| replacement | |||||
|
24
|
24
03241-0516A-000 SCREWXB,XS; 1995-11-01~1997-04-01 |
03241-0516A-000 |
from US $0.76 |
||
|
25
|
25
87327-82C00-000
Collar rr seat stopper band
XB,XS; 1995-11-01~1997-04-01 |
87327-82C00-000 |
— | ||
|
26
|
26
09387-19001-000 RINGXB,XS; 1995-11-01~1997-04-01 |
09387-19001-000 |
from US $0.77 |
||
|
27
|
27
01550-08163-000
Bolt, holder
XB,XS; 1995-11-01~1997-04-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0816B-000 BoltXB,XS; 1995-11-01~1997-04-01 |
01550-0816B-000 |
from US $0.91 |
||
|
27
|
27
01550-0816A-000 BoltBolt, rear XB,XS; 1995-11-01~1997-04-01 |
01550-0816A-000 |
from US $0.91 |
||
|
28
|
28
81241-54F11-5ES
ノブ,パーティションパイプ(ブラック)
ブラツク; XB,XS; 1995-11-01~1997-04-01 |
81241-54F11-5ES |
— | ||
| replacements | |||||
|
28
|
28
81241-54F11-5PK
KNOB,JACK MTG
ブラツク; XB,XS; 1995-11-01~1997-04-01 |
81241-54F11-5PK |
— | ||
|
28
|
28
81241-54F12-5PK Bolt,batt Service Lid(Black)ブラツク; XB,XS; 1995-11-01~1997-04-01 |
81241-54F12-5PK |
US $5.04 |
||
