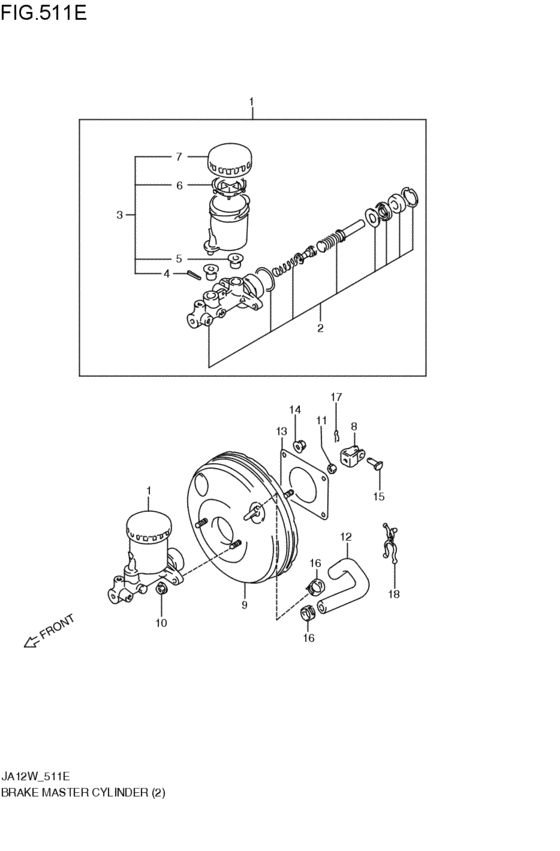

brakes master cylinder (ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- K6A
- transmission
- 3AT
- grade
- SF
- air bag
- NAB
- abs
- ABS
- x01
- W
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-70AF0-000
シリンダアッシ,ブレーキマスタ
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51100-70AF0-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-70AF1-000
New Genuine Part
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51100-70AF1-000 |
— | ||
|
2
|
2
51810-70AF0-000
Piston set
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51810-70AF0-000 |
— | ||
| replacement | |||||
|
2
|
2
51810-70AF1-000 Piston setABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51810-70AF1-000 |
from US $84.67 |
||
|
3
|
3
51200-77E00-000
リザーバアッシ,マスタシリンダ
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51200-77E00-000 |
— | ||
| replacement | |||||
|
3
|
3
51200-77E01-000 RESERVOIR ASSY,MASTER CYLINDERABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51200-77E01-000 |
US $156.80 |
||
|
4
|
4
09205-05003-000 PIN,SPRING(5X45)ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09205-05003-000 |
from US $0.36 |
||
|
5
|
5
51197-85520-000 GROMMET,RESERVOIR CONNECTORABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51197-85520-000 |
from US $2.72 |
||
|
6
|
6
51234-60A20-000 STRAINER,MASTER CYLINDERABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51234-60A20-000 |
from US $5.02 |
||
|
7
|
7
51220-60A20-000 CAP,RESERVOIRABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51220-60A20-000 |
from US $22.40 |
||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH RODABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51182-77E00-000 |
from US $6.37 |
||
|
9
|
9
51300-70AF0-000
ブースタアッシ,ブレーキマスタ
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51300-70AF0-000 |
— | ||
|
10
|
10
09159-08075-000 NUTABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09159-08075-000 |
from US $0.91 |
||
|
11
|
11
09140-10019-000 NUTABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09140-10019-000 |
US $9.20 |
||
|
12
|
12
51010-82CB0-000
ホース,ブレーキバキューム
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51010-82CB0-000 |
— | ||
| replacement | |||||
|
12
|
12
51010-82CB1-000
ホース,ブレーキバキューム
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51010-82CB1-000 |
— | ||
|
13
|
13
51132-82003-000 PACKING,BRAKE MASTER CYLINDERABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
51132-82003-000 |
from US $1.60 |
||
|
14
|
14
09159-08069-000
Nut
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
14
|
14
09159-08135-000 NUTABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09159-08135-000 |
from US $0.81 |
||
|
15
|
15
09200-10021-000 PINABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09200-10021-000 |
from US $1.24 |
||
|
16
|
16
09401-15404-000 CLIPABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09401-15404-000 |
from US $1.33 |
||
|
17
|
17
09385-10006-000 PIN,SNAPPin ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09385-10006-000 |
from US $0.97 |
||
