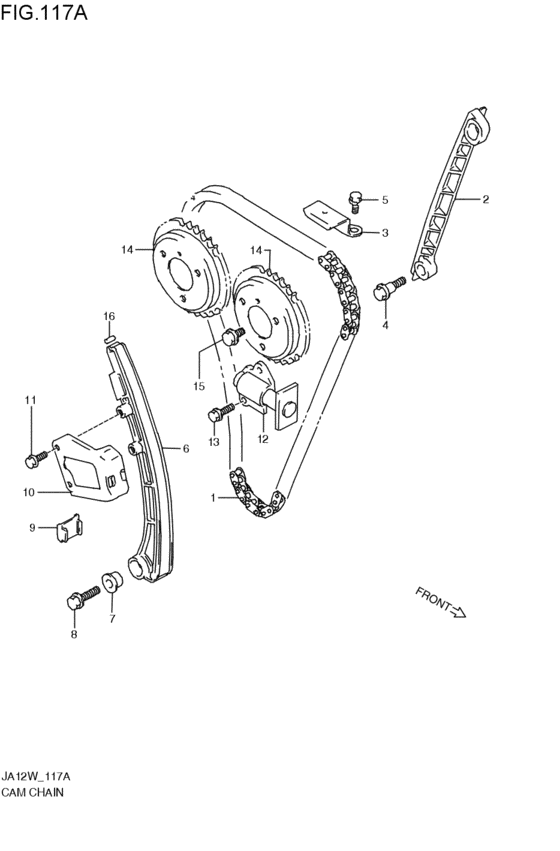

cam chain (K6A; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XC
- air bag
- NAB
- abs
- NABS
- x01
- W
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12761-73G00-000
Chain, timing
K6A; 1995-11-01~1997-04-01 |
12761-73G00-000 |
— | ||
| replacement | |||||
|
1
|
1
12761-73G01-000 CHAIN,TIMINGK6A; 1995-11-01~1997-04-01 |
12761-73G01-000 |
from US $76.76 |
||
|
2
|
2
12771-73G00-000 GUIDE,TIMING CHAIN NO.1K6A; 1995-11-01~1997-04-01 |
12771-73G00-000 |
from US $26.60 |
||
|
3
|
3
12772-73G01-000
GUIDE,TIMING CHAIN,NO.2
K6A; 1995-11-01~1997-04-01 |
12772-73G01-000 |
— | ||
| replacement | |||||
|
3
|
3
12772-73G02-000 Guide,timing Chain,no.2K6A; 1995-11-01~1997-04-01 |
12772-73G02-000 |
US $29.60 |
||
|
4
|
4
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide K6A; 1995-11-01~1997-04-01 |
12776-85FA0-000 |
from US $3.04 |
||
|
5
|
5
01550-06123-000
Bolt
K6A; 1995-11-01~1997-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BoltBolt, clamp K6A; 1995-11-01~1997-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BoltK6A; 1995-11-01~1997-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
12811-73G00-000
テンショナ,タイミングチェーン
K6A; 1995-11-01~1997-04-01 |
12811-73G00-000 |
— | ||
| replacements | |||||
|
6
|
6
12811-58J00-000 Tensioner, Timing ChainK6A; 1995-11-01~1997-04-01 |
12811-58J00-000 |
from US $81.83 |
||
|
6
|
6
12821-58J10-000 LINK,TENSIONERK6A; 1995-11-01~1997-04-01 |
12821-58J10-000 |
from US $7.92 |
||
|
7
|
7
12812-73G00-000 SPACER TIMING CHAIN TENSIONEK6A; 1995-11-01~1997-04-01 |
12812-73G00-000 |
US $5.74 |
||
| replacement | |||||
|
7
|
7
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner K6A; 1995-11-01~1997-04-01 |
12812-73G10-000 |
from US $4.48 |
||
|
8
|
8
01550-08253-000
Bolt, rear
K6A; 1995-11-01~1997-04-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BoltK6A; 1995-11-01~1997-04-01 |
01550-0825B-000 |
from US $1.06 |
||
|
8
|
8
01550-0825A-000 BoltK6A; 1995-11-01~1997-04-01 |
01550-0825A-000 |
from US $0.47 |
||
|
9
|
9
12813-73G00-000 PAD,TIMING CHAIN TENSIONERPad, timing chain tensioner K6A; 1995-11-01~1997-04-01 |
12813-73G00-000 |
from US $2.72 |
||
|
10
|
10
12821-73G00-000
リンク,タイミングチェーンテンショナ
K6A; 1995-11-01~1997-04-01 |
12821-73G00-000 |
— | ||
| replacement | |||||
|
10
|
10
12821-78G00-000 LINK,TIMING CHAIN TENSIONERK6A; 1995-11-01~1997-04-01 |
12821-78G00-000 |
US $33.60 |
||
|
11
|
11
01550-06123-000
Bolt
K6A; 1995-11-01~1997-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BoltBolt, clamp K6A; 1995-11-01~1997-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BoltK6A; 1995-11-01~1997-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
12831-78G00-000
アジャスタアッシ,テンショナ
K6A; 1995-11-01~1997-04-01 |
12831-78G00-000 |
— | ||
| replacements | |||||
|
12
|
12
12831-58J00-000 ADJUSTER ASSY,TENSIONERK6A; 1995-11-01~1997-04-01 |
12831-58J00-000 |
from US $123.01 |
||
|
12
|
12
12832-58J00-000 GASKET,TENSIONER ADJUSTERK6A; 1995-11-01~1997-04-01 |
12832-58J00-000 |
from US $3.26 |
||
|
13
|
13
01550-06203-000
Bolt
K6A; 1995-11-01~1997-04-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-0620B-000 BoltBolt, inspection cap K6A; 1995-11-01~1997-04-01 |
01550-0620B-000 |
from US $0.76 |
||
|
14
|
14
12741-73G00-000
スプロケット,カムシャフトタイミング
K6A-1028584マデ; K6A; 1995-11-01~1997-04-01 |
12741-73G00-000 |
— | ||
|
15
|
15
01550-06123-000
Bolt
K6A-1028584マデ; K6A; 1995-11-01~1997-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BoltBolt, clamp K6A-1028584マデ; K6A; 1995-11-01~1997-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BoltK6A-1028584マデ; K6A; 1995-11-01~1997-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
04221-05109-000 PINK6A-1028584マデ; K6A; 1995-11-01~1997-04-01 |
04221-05109-000 |
from US $0.38 |
||
