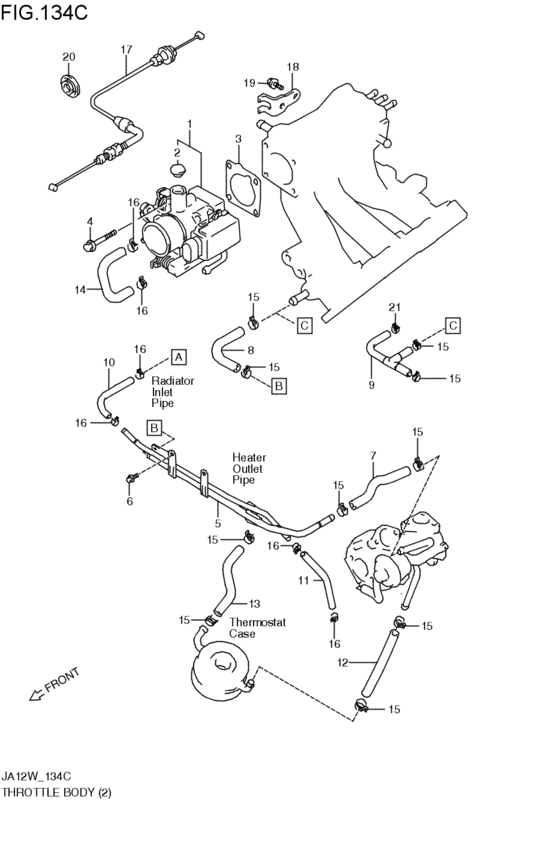

throttle body (K6A; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XC
- air bag
- NAB
- abs
- NABS
- x01
- W
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-80F60-000
Throttle body
K6A; 1995-11-01~1997-04-01 |
13400-80F60-000 |
— | ||
|
2
|
2
13296-86500-000
CAP
K6A; 1995-11-01~1997-04-01 |
13296-86500-000 |
— | ||
|
3
|
3
13421-73G01-000
GASKET,THROTTLE BODY
K6A; 1995-11-01~1997-04-01 |
13421-73G01-000 |
— | ||
|
4
|
4
01550-06503-000
Bolt
K6A; 1995-11-01~1997-04-01 |
01550-06503-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0650B-000 BoltK6A; 1995-11-01~1997-04-01 |
01550-0650B-000 |
US $15.50 |
||
|
4
|
4
01550-0650A-000 BoltBolt (6x50) K6A; 1995-11-01~1997-04-01 |
01550-0650A-000 |
from US $0.96 |
||
|
5
|
5
17960-80F50-000
パイプ,ターボ/オイルクーラ
K6A; 1995-11-01~1996-12-01 |
17960-80F50-000 |
— | ||
| replacement | |||||
|
5
|
5
17960-80F5V-000
パイプ,ターボ/オイルクーラ
K6A; 1995-11-01~1996-12-01 |
17960-80F5V-000 |
— | ||
|
5
|
5
17960-80F51-000
パイプ,ターボ/オイルクーラ
K6A; 1996-12-01~1997-04-01 |
17960-80F51-000 |
— | ||
| replacement | |||||
|
5
|
5
17960-80F5V-000
パイプ,ターボ/オイルクーラ
K6A; 1996-12-01~1997-04-01 |
17960-80F5V-000 |
— | ||
|
6
|
6
01550-06123-000
Bolt
K6A; 1995-11-01~1997-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BoltBolt, clamp K6A; 1995-11-01~1997-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 BoltK6A; 1995-11-01~1997-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
17856-80F50-000
ホース,パイプツーターボ
K6A; 1995-11-01~1997-04-01 |
17856-80F50-000 |
— | ||
| replacements | |||||
|
7
|
7
09401-14404-000 CLIPK6A; 1995-11-01~1997-04-01 |
09401-14404-000 |
from US $3.59 |
||
|
7
|
7
17856-80F51-000
ホース,パイプツーターボ
K6A; 1995-11-01~1997-04-01 |
17856-80F51-000 |
— | ||
|
8
|
8
17859-80F50-000
ホース,マニホールドツーパイプ
K6A; 1995-11-01~1996-10-01 |
17859-80F50-000 |
— | ||
| replacements | |||||
|
8
|
8
09401-14404-000 CLIPK6A; 1995-11-01~1996-10-01 |
09401-14404-000 |
from US $3.59 |
||
|
8
|
8
17972-78A50-000
ホース,パイプツーインレットケース
K6A; 1995-11-01~1996-10-01 |
17972-78A50-000 |
— | ||
|
9
|
9
17859-83CA0-000
ホース,ウォータバイパス
K6A; 1996-10-01~1997-04-01 |
17859-83CA0-000 |
— | ||
|
10
|
10
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>150; K6A; 1995-11-01~1997-04-01 |
09352-70121-600 |
from US $5.93 |
||
|
11
|
11
17857-83CA0-000
ホース,パイプツーサーモケース
K6A; 1995-11-01~1996-10-01 |
17857-83CA0-000 |
— | ||
|
11
|
11
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) K6A; 1996-10-01~1997-04-01 |
09352-70121-600 |
from US $5.93 |
||
|
12
|
12
09352-90141-600 HOSE(9X14X600)L:600>180; K6A; 1995-11-01~1997-04-01 |
09352-90141-600 |
US $26.40 |
||
|
13
|
13
17858-80F50-000
ホース,オイルクーラツーパイプ
K6A; 1995-11-01~1997-04-01 |
17858-80F50-000 |
— | ||
| replacements | |||||
|
13
|
13
09401-14404-000 CLIPK6A; 1995-11-01~1997-04-01 |
09401-14404-000 |
from US $3.59 |
||
|
13
|
13
17858-80F51-000
ホース,オイルクーラツーパイプ
K6A; 1995-11-01~1997-04-01 |
17858-80F51-000 |
— | ||
|
14
|
14
13193-53F00-000
ホース,ウォータインレットパイプ
K6A; 1995-11-01~1997-04-01 |
13193-53F00-000 |
— | ||
| replacements | |||||
|
14
|
14
09401-12410-000 CLIPClip, filter outlet K6A; 1995-11-01~1997-04-01 |
09401-12410-000 |
from US $1.49 |
||
|
14
|
14
13193-53F01-000 HOSE,WATER INLET PIPEK6A; 1995-11-01~1997-04-01 |
13193-53F01-000 |
US $22.40 |
||
|
15
|
15
09401-13417-000 CLIPK6A; 1995-11-01~1997-04-01 |
09401-13417-000 |
from US $0.79 |
||
|
16
|
16
09401-11407-000
CLIP
K6A; 1995-11-01~1997-04-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
16
|
16
09401-11415-000 CLIPK6A; 1995-11-01~1997-04-01 |
09401-11415-000 |
from US $1.06 |
||
|
17
|
17
15910-83CA0-000
ケーブルアッシ,アクセル
CHKK; K6A; 1995-11-01~1997-04-01 |
15910-83CA0-000 |
— | ||
| replacement | |||||
|
17
|
17
15910-83C1V-000
ケーブルアッシ,アクセル
CHKK; K6A; 1995-11-01~1997-04-01 |
15910-83C1V-000 |
— | ||
|
18
|
18
15919-83CA0-000
ブラケット,アクセルケーブル
K6A; 1995-11-01~1997-04-01 |
15919-83CA0-000 |
— | ||
|
19
|
19
01550-06123-000
Bolt
K6A; 1995-11-01~1997-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0612B-000 BoltBolt, clamp K6A; 1995-11-01~1997-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
19
|
19
01550-0612A-000 BoltK6A; 1995-11-01~1997-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
20
|
20
15939-83000-000 PLUG,CHOKE CABLEK6A; 1995-11-01~1997-04-01 |
15939-83000-000 |
US $1.52 |
||
|
21
|
21
09401-13417-000 CLIPK6A; 1996-10-01~1997-04-01 |
09401-13417-000 |
from US $0.79 |
||
