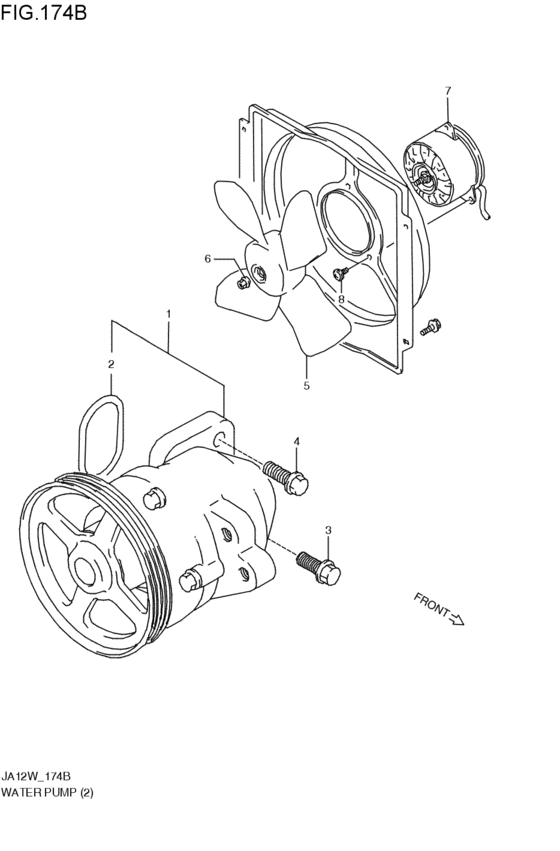

water pump (K6A; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XC
- air bag
- NAB
- abs
- NABS
- x01
- W
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-80811-000
ポンプセット,ウォータ
K6A; 1995-11-01~1997-04-01 |
17400-80811-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-80815-000
PUMP SET,WATER
K6A; 1995-11-01~1997-04-01 |
17400-80815-000 |
— | ||
|
2
|
2
17611-73G00-000
O ring
K6A; 1995-11-01~1997-04-01 |
17611-73G00-000 |
— | ||
| replacement | |||||
|
2
|
2
17611-73G03-000 O-RING,WATER PUMPK6A; 1995-11-01~1997-04-01 |
17611-73G03-000 |
from US $4.95 |
||
|
3
|
3
01550-08403-000
Bolt
K6A; 1995-11-01~1997-04-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 BoltK6A; 1995-11-01~1997-04-01 |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BoltK6A; 1995-11-01~1997-04-01 |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
01550-08303-000
Bolt
K6A; 1995-11-01~1997-04-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 BoltK6A; 1995-11-01~1997-04-01 |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BoltBolt, mount oil seal cover K6A; 1995-11-01~1997-04-01 |
01550-0830A-000 |
from US $1.06 |
||
|
5
|
5
17111-83CA0-000
ファン,エンジンクーリング
DENSO; K6A; 1995-11-01~1997-04-01 |
17111-83CA0-000 |
— | ||
|
6
|
6
08316-20053-000
Nut
K6A; 1995-11-01~1997-04-01 |
08316-20053-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-2005A-000 NUTK6A; 1995-11-01~1997-04-01 |
08316-2005A-000 |
from US $0.80 |
||
|
7
|
7
17120-71C20-000 MOTOR,COOLING FANDENSO; K6A; 1995-11-01~1997-04-01 |
17120-71C20-000 |
US $548.80 |
||
|
8
|
8
02142-0510A-000 SCREWBolt, oil pump rotor plate K6A; 1995-11-01~1997-04-01 |
02142-0510A-000 |
from US $0.77 |
||
| replacement | |||||
|
8
|
8
02142-0510B-000 SCREWBolt K6A; 1995-11-01~1997-04-01 |
02142-0510B-000 |
from US $0.72 |
||
