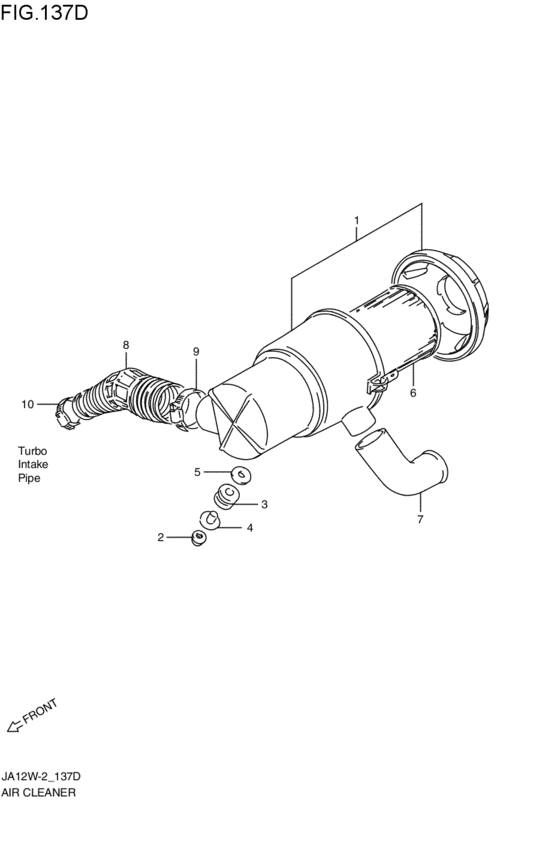

air cleaner (1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-83C00-000
ケースアッシ,エアクリーナ
1997-05-01~1998-10-01 |
13701-83C00-000 |
— | ||
|
2
|
2
08316-10083-000
Nut
1997-05-01~1998-10-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
2
|
2
08316-1008B-000 NUT1997-05-01~1998-10-01 |
08316-1008B-000 |
from US $0.76 |
||
|
3
|
3
13813-83C00-000
クッション
1997-05-01~1998-10-01 |
13813-83C00-000 |
— | ||
|
4
|
4
13814-83C00-000
スペーサ
1997-05-01~1998-10-01 |
13814-83C00-000 |
— | ||
| replacement | |||||
|
4
|
4
13814-83C0V-000
New Genuine Part
1997-05-01~1998-10-01 |
13814-83C0V-000 |
— | ||
|
5
|
5
09160-08135-000 WASHER(8.5X28X1.6)Washer, exhaust support 1997-05-01~1998-10-01 |
09160-08135-000 |
from US $0.72 |
||
|
6
|
6
13780-79210-000 ELEMENT,AIR CLEANER1997-05-01~1998-10-01 |
13780-79210-000 |
from US $23.36 |
||
|
7
|
7
13871-80701-000
Hose, air cleaner, inlet
1997-05-01~1998-10-01 |
13871-80701-000 |
— | ||
|
8
|
8
13881-83C00-000
ホース,エアクリーナ,アウトレット
1997-05-01~1998-10-01 |
13881-83C00-000 |
— | ||
|
9
|
9
09402-69511-000 CLAMPClamp (thb) 1997-05-01~1998-10-01 |
09402-69511-000 |
from US $8.71 |
||
|
10
|
10
09402-50511-000 CLAMP1997-05-01~1998-10-01 |
09402-50511-000 |
from US $7.52 |
||
