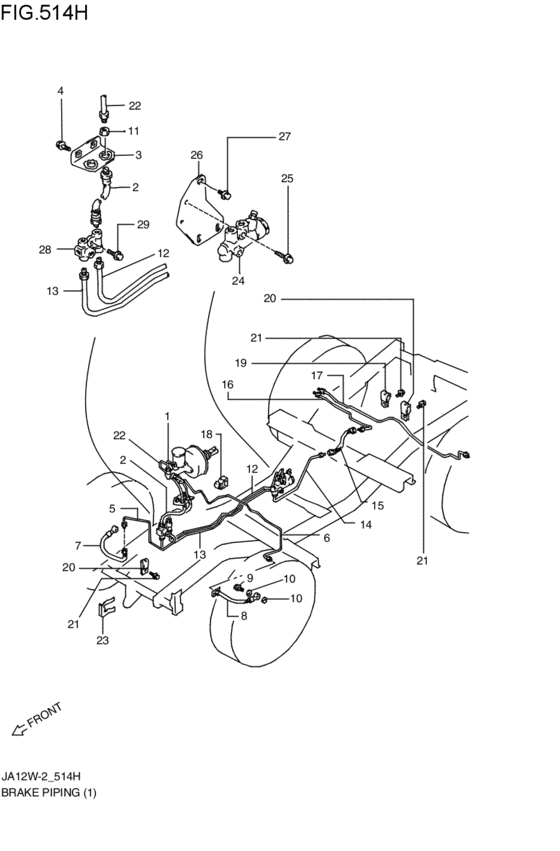

brakes piping (ABSナシ; NABS; 1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-70AA0-000
Pipe,ma primary to joint
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51410-70AA0-000 |
— | ||
|
2
|
2
51570-80030-000 HOSE,MASTER CYLINDER FLEXIBLEABSナシ; NABS; 1997-05-01~1998-10-01 |
51570-80030-000 |
US $14.08 |
||
|
3
|
3
51712-83001-000 BRACKET,MA CYL HOSEABSナシ; NABS; 1997-05-01~1998-10-01 |
51712-83001-000 |
US $2.72 |
||
|
4
|
4
02162-06163-000
Screw
ABSナシ; NABS; 1997-05-01~1998-10-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0616B-000 SCREWBolt, adjust ABSナシ; NABS; 1997-05-01~1998-10-01 |
02162-0616B-000 |
from US $0.96 |
||
|
5
|
5
51420-70AA1-000
PIPE,JOINT TO FR BK HOSE
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51420-70AA1-000 |
— | ||
|
6
|
6
51430-70AA0-000 PIPE,MA SEC TO FL BK HOSEABSナシ; NABS; 1997-05-01~1998-10-01 |
51430-70AA0-000 |
US $19.87 |
||
|
7
|
7
51540-82CA0-000
ホース,フロントブレーキフレキシブル,ライト
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51540-82CA0-000 |
— | ||
|
8
|
8
51550-82CA0-000
ホース,フロントブレーキフレキシブル,レフト
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51550-82CA0-000 |
— | ||
|
9
|
9
09360-10026-000 Union boltABSナシ; NABS; 1997-05-01~1998-10-01 |
09360-10026-000 |
from US $2.08 |
||
|
10
|
10
09161-10009-000 WASHER(10X15X1.5)Lock washer ABSナシ; NABS; 1997-05-01~1998-10-01 |
09161-10009-000 |
from US $1.06 |
||
|
11
|
11
09140-16007-000 NUTABSナシ; NABS; 1997-05-01~1998-10-01 |
09140-16007-000 |
US $1.92 |
||
|
12
|
12
51460-82CA0-000
PIPE,JOINT TO VALVE REAR
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51460-82CA0-000 |
— | ||
|
13
|
13
51340-82CA0-000
Pipe,joint to valve,front
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51340-82CA0-000 |
— | ||
|
14
|
14
51350-82CA0-000 PIPE,VALVE TO RR BK HOSEABSナシ; NABS; 1997-05-01~1998-10-01 |
51350-82CA0-000 |
US $16.41 |
||
|
15
|
15
51560-70AA0-000
HOSE,RR BRAKE FLEXIBLE
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51560-70AA0-000 |
— | ||
|
16
|
16
51470-82CA0-000
パイプ,リヤブレーキホースツーライトブレーキ
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51470-82CA0-000 |
— | ||
|
17
|
17
51480-82CA0-000
パイプ,ライトブレーキツーレフトブレーキ
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51480-82CA0-000 |
— | ||
|
18
|
18
51752-70B00-000 CLAMP,BK PIPEABSナシ; NABS; 1997-05-01~1998-10-01 |
51752-70B00-000 |
US $1.60 |
||
|
19
|
19
09403-06404-000 CLAMPABSナシ; NABS; 1997-05-01~1998-10-01 |
09403-06404-000 |
US $2.72 |
||
|
20
|
20
09403-06401-000 CLAMPABSナシ; NABS; 1997-05-01~1998-10-01 |
09403-06401-000 |
from US $1.08 |
||
|
21
|
21
09132-06006-000 SCREW(6X12)ABSナシ; NABS; 1997-05-01~1998-10-01 |
09132-06006-000 |
from US $0.88 |
||
|
22
|
22
51520-70AA0-000
パイプ,マスタセカンダリツージョイント
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51520-70AA0-000 |
— | ||
|
23
|
23
09383-13001-000 E RINGABSナシ; NABS; 1997-05-01~1998-10-01 |
09383-13001-000 |
from US $0.70 |
||
| replacement | |||||
|
23
|
23
09383-13003-000 E-RINGABSナシ; NABS; 1997-05-01~1998-10-01 |
09383-13003-000 |
from US $1.46 |
||
|
24
|
24
51920-82C30-000 VALVE ASSY,P&BABSナシ; NABS; 1997-05-01~1998-10-01 |
51920-82C30-000 |
from US $90.52 |
||
|
25
|
25
01550-06403-000
Bolt (green)
ABSナシ; NABS; 1997-05-01~1998-10-01 |
01550-06403-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0640B-000 BoltABSナシ; NABS; 1997-05-01~1998-10-01 |
01550-0640B-000 |
from US $0.96 |
||
|
25
|
25
01550-0640A-000 BoltBolt (l:40) ABSナシ; NABS; 1997-05-01~1998-10-01 |
01550-0640A-000 |
from US $3.83 |
||
|
26
|
26
51950-70A00-000
Plate,p & b valve
ABSナシ; NABS; 1997-05-01~1998-10-01 |
51950-70A00-000 |
— | ||
|
27
|
27
02162-06123-000
Bolt (6x12)
ABSナシ; NABS; 1997-05-01~1998-10-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
02162-0612B-000 SCREWBolt ABSナシ; NABS; 1997-05-01~1998-10-01 |
02162-0612B-000 |
from US $0.80 |
||
|
27
|
27
02162-0612A-000 SCREWBolt, bracket ABSナシ; NABS; 1997-05-01~1998-10-01 |
02162-0612A-000 |
from US $0.79 |
||
|
28
|
28
51640-80000-000 JOINT,5WAY BRAKEABSナシ; NABS; 1997-05-01~1998-10-01 |
51640-80000-000 |
US $64.77 |
||
|
29
|
29
01550-06253-000
Bolt (6x25)
ABSナシ; NABS; 1997-05-01~1998-10-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0625B-000 BoltBolt, head cover ABSナシ; NABS; 1997-05-01~1998-10-01 |
01550-0625B-000 |
from US $0.91 |
||
|
29
|
29
01550-0625A-000 BoltBolt ABSナシ; NABS; 1997-05-01~1998-10-01 |
01550-0625A-000 |
from US $0.96 |
||
