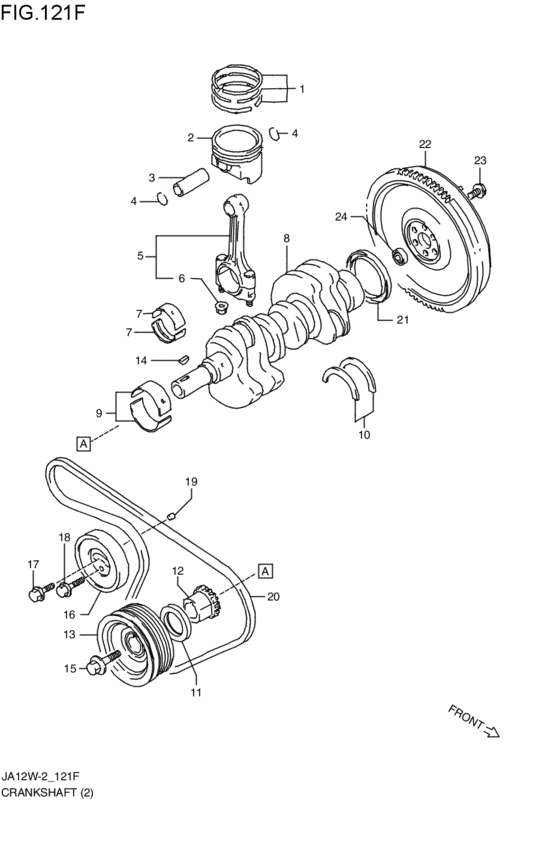

crankshaft (K6A; 1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12140-73G01-000 RING SET,PISTON STDK6A; 1997-05-01~1998-10-01 |
12140-73G01-000 |
from US $51.62 |
||
|
2
|
2
12111-73G01-0A0
PISTON,STD MARK 1
マ-ク 1; K6A; 1997-05-01~1997-10-01 |
12111-73G01-0A0 |
— | ||
|
2
|
2
12111-73G01-0B0
ピストン,STD,マーク 2
マ-ク 2; K6A; 1997-05-01~1997-10-01 |
12111-73G01-0B0 |
— | ||
|
2
|
2
12111-73G02-0A0
ピストン,STD,マーク 1
マ-ク 1; K6A; 1997-10-01~1998-10-01 |
12111-73G02-0A0 |
— | ||
| replacement | |||||
|
2
|
2
12111-83G51-0A0 PISTON,STD MARK 1マ-ク 1; K6A; 1997-10-01~1998-10-01 |
12111-83G51-0A0 |
US $64.77 |
||
|
2
|
2
12111-73G02-0B0
ピストン,STD,マーク 2
マ-ク 2; K6A; 1997-10-01~1998-10-01 |
12111-73G02-0B0 |
— | ||
| replacement | |||||
|
2
|
2
12111-83G51-0B0 PISTON,STD MARK 2マ-ク 2; K6A; 1997-10-01~1998-10-01 |
12111-83G51-0B0 |
US $64.77 |
||
|
3
|
3
12151-54A50-000 PIN,PISTONK6A; 1997-05-01~1998-10-01 |
12151-54A50-000 |
from US $7.92 |
||
|
4
|
4
09381-18005-000 CIRCLIPK6A; 1997-05-01~1998-10-01 |
09381-18005-000 |
from US $1.12 |
||
|
5
|
5
12160-73G00-000
CONNROD ASSY
K6A; 1997-05-01~1998-10-01 |
12160-73G00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-73G01-000 CONNROD ASSYK6A; 1997-05-01~1998-10-01 |
12160-73G01-000 |
from US $117.20 |
||
|
6
|
6
09159-08033-000 NUTK6A; 1997-05-01~1998-10-01 |
09159-08033-000 |
from US $0.97 |
||
|
7
|
7
12181-54A50-0A0 BEARING,CONNRODBearing, connrod K6A; 1997-05-01~1998-10-01 |
12181-54A50-0A0 |
from US $15.91 |
||
| replacement | |||||
|
7
|
7
12181-81051-000
BEARING,CONNROD std
K6A; 1997-05-01~1998-10-01 |
12181-81051-000 |
— | ||
|
8
|
8
12221-73G70-000 CRANKSHAFTK6A; 1997-05-01~1998-10-01 |
12221-73G70-000 |
US $1,362.20 |
||
|
9
|
9
12340-82000-0D0 BEARING SET,CRANKSHAFT STD (Yellow)カラー:イエロ; K6A; 1997-05-01~1998-10-01 |
12340-82000-0D0 |
from US $13.82 |
||
|
9
|
9
12340-82000-0E0 BEARING SET,CRANKSHAFT STD (Blue)カラー:ブルー; K6A; 1997-05-01~1998-10-01 |
12340-82000-0E0 |
from US $10.44 |
||
|
9
|
9
12340-82000-0A0 BEARING SET,CRANKSHAFT STD (Green)カラー:グリーン; K6A; 1997-05-01~1998-10-01 |
12340-82000-0A0 |
from US $13.73 |
||
|
9
|
9
12340-82000-0B0 BEARING SET,CRANKSHAFT STD (Black)カラー:ブラック; K6A; 1997-05-01~1998-10-01 |
12340-82000-0B0 |
from US $11.59 |
||
|
9
|
9
12340-82000-0C0 BEARING SET,CRANKSHAFT STD (None)カラー:ナシ; K6A; 1997-05-01~1998-10-01 |
12340-82000-0C0 |
from US $14.29 |
||
|
10
|
10
12300-82820-000
Bearing set, crank thrust (STD)
K6A; 1997-05-01~1998-10-01 |
12300-82820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-000 BEARING SET,CRANK THRUST (STD)K6A; 1997-05-01~1998-10-01 |
12300-60840-000 |
from US $10.10 |
||
|
10
|
10
12300-82820-012
Bearing set, crank thrust (OS:0.125)
K6A; 1997-05-01~1998-10-01 |
12300-82820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)K6A; 1997-05-01~1998-10-01 |
12300-60840-012 |
from US $12.24 |
||
|
11
|
11
09283-35047-000 SEAL,OIL(35X47X6)Seal, oil K6A; 1997-05-01~1998-10-01 |
09283-35047-000 |
from US $8.66 |
||
|
12
|
12
12631-73G60-000
Sprocket, crank timing
K6A; 1997-05-01~1998-10-01 |
12631-73G60-000 |
— | ||
| replacement | |||||
|
12
|
12
12631-58J00-000 Sprocket, Crankshaft TimingK6A; 1997-05-01~1998-10-01 |
12631-58J00-000 |
from US $31.32 |
||
|
13
|
13
12611-73G60-000 PULLEY,CRANKSHAFTK6A; 1997-05-01~1998-10-01 |
12611-73G60-000 |
US $296 |
||
|
14
|
14
09420-04008-000 KEYK6A; 1997-05-01~1998-10-01 |
09420-04008-000 |
from US $1.76 |
||
|
15
|
15
12619-73G00-000
Bolt
K6A; 1997-05-01~1998-10-01 |
12619-73G00-000 |
— | ||
| replacement | |||||
|
15
|
15
12619-69G10-000 BOLT,CRANK PULLEYK6A; 1997-05-01~1998-10-01 |
12619-69G10-000 |
from US $9.60 |
||
|
16
|
16
17540-80F51-000 TENSIONER ASSY,WATER PUMP BELTK6A; 1997-05-01~1998-10-01 |
17540-80F51-000 |
from US $114.91 |
||
|
17
|
17
07120-08253-000
Bolt, front
K6A; 1997-05-01~1997-12-01 |
07120-08253-000 |
— | ||
| replacement | |||||
|
17
|
17
07120-0825B-000 BoltK6A; 1997-05-01~1997-12-01 |
07120-0825B-000 |
from US $1.44 |
||
|
17
|
17
07120-08303-000
Bolt
K6A; 1998-01-01~1998-10-01 |
07120-08303-000 |
— | ||
| replacement | |||||
|
17
|
17
07120-0830A-000 BoltK6A; 1998-01-01~1998-10-01 |
07120-0830A-000 |
from US $1.60 |
||
|
18
|
18
07120-08303-000
Bolt
K6A; 1997-05-01~1998-10-01 |
07120-08303-000 |
— | ||
| replacement | |||||
|
18
|
18
07120-0830A-000 BoltK6A; 1997-05-01~1998-10-01 |
07120-0830A-000 |
from US $1.60 |
||
|
19
|
19
04211-11129-000 PINK6A; 1997-05-01~1998-10-01 |
04211-11129-000 |
from US $0.99 |
||
|
20
|
20
17521-80F52-000 BELT,WATER PUMP 4PK1030K6A; 1997-05-01~1998-10-01 |
17521-80F52-000 |
US $45.60 |
||
|
21
|
21
09283-79001-000
Seal, oil (78x99x8)
K6A; 1997-05-01~1998-10-01 |
09283-79001-000 |
— | ||
| replacement | |||||
|
21
|
21
09283-79002-000 SEAL,OIL(79X99X8)K6A; 1997-05-01~1998-10-01 |
09283-79002-000 |
from US $43.81 |
||
|
22
|
22
12620-83C50-000
フライホイール
K6A:5MT; 1997-05-01~1998-10-01 |
12620-83C50-000 |
— | ||
|
23
|
23
09103-10282-000 BOLT(10X18.5)K6A:5MT; 1997-05-01~1998-10-01 |
09103-10282-000 |
from US $2.08 |
||
|
24
|
24
12623-70B00-000 BEARING,INPUT SHAFTK6A:5MT; 1997-05-01~1998-10-01 |
12623-70B00-000 |
from US $15.91 |
||
