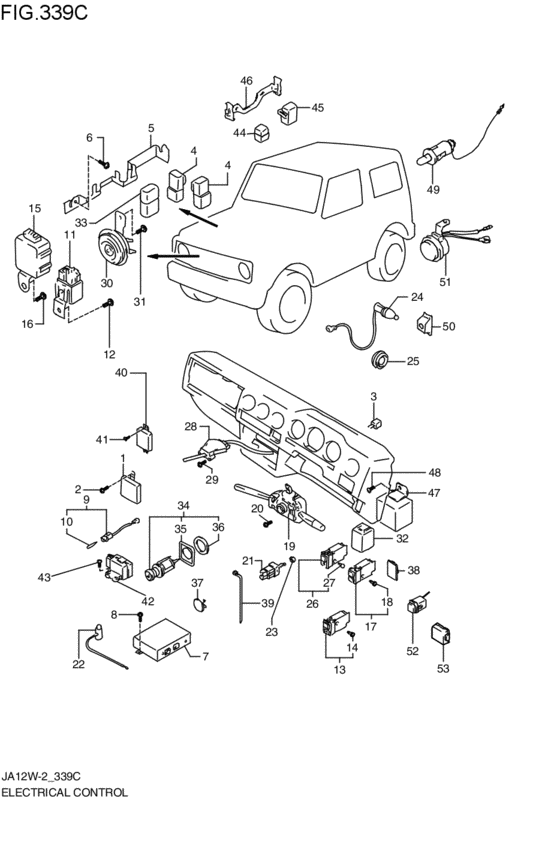

electrical control (インストルメントパネル エレクトリカル; 1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33920-82CV0-000
コントローラ,インジェクション/エアコン
5MT:(XC,XE,XF,XG); 1997-05-01~1998-10-01 |
33920-82CV0-000 |
— | ||
|
2
|
2
02162-06123-000
Bolt (6x12)
1997-05-01~1998-10-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02162-0612B-000 SCREWBolt 1997-05-01~1998-10-01 |
02162-0612B-000 |
from US $0.80 |
||
|
2
|
2
02162-0612A-000 SCREWBolt, bracket 1997-05-01~1998-10-01 |
02162-0612A-000 |
from US $0.80 |
||
|
4
|
4
38860-72G00-000 RELAY ASSYRelay, air con メイン/フューエルリレー; 1997-05-01~1998-10-01 |
38860-72G00-000 |
US $67.20 |
||
|
5
|
5
38861-81C00-000
Bracket,epi relay
1997-05-01~1998-10-01 |
38861-81C00-000 |
— | ||
|
6
|
6
02142-06103-000
Screw
1997-05-01~1998-10-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0610B-000 SCREWStopper, cl rlse cam shaft 1997-05-01~1998-10-01 |
02142-0610B-000 |
from US $0.76 |
||
|
6
|
6
02142-0610A-000 SCREW1997-05-01~1998-10-01 |
02142-0610A-000 |
from US $0.96 |
||
|
7
|
7
38720-82C02-000 Controller assembly, power steeringK6A; 1997-05-01~1998-10-01 |
38720-82C02-000 |
US $915.20 |
||
|
8
|
8
02162-06103-000
Bolt
K6A; 1997-05-01~1998-10-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0610A-000 SCREWK6A; 1997-05-01~1998-10-01 |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUMCC,XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
36550-60E00-000 |
US $21.90 |
||
|
10
|
10
09471-12091-000 BULB(12V1.4W G30)CC,XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
09471-12091-000 |
US $28 |
||
|
11
|
11
38590-77E10-000 CONTROLLER,WARNING BUZZER1997-05-01~1998-10-01 |
38590-77E10-000 |
US $138 |
||
|
12
|
12
03541-05163-000
Screw
1997-05-01~1998-10-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0516A-000 SCREW1997-05-01~1998-10-01 |
03541-0516A-000 |
from US $0.76 |
||
|
13
|
13
37270-86000-000
SWITCH ASSY,FR FOG LAMP
XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
37270-86000-000 |
— | ||
|
14
|
14
09471-12135-000 BULB(CLEAR)クリア; XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
09471-12135-000 |
US $57 |
||
|
15
|
15
95572-63C00-000 RELAY ASSYフォグランプリレー; XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
95572-63C00-000 |
US $42.69 |
||
|
16
|
16
03541-05163-000
Screw
XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0516A-000 SCREWXC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
03541-0516A-000 |
from US $0.76 |
||
|
17
|
17
37370-86000-000
SWITCH ASSY,RR WIPER&WASHER
XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
37370-86000-000 |
— | ||
|
18
|
18
09471-12135-000 BULB(CLEAR)クリア; XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
09471-12135-000 |
US $57 |
||
|
19
|
19
37400-80C10-000 SWITCH ASSY,COMBCC,XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
37400-80C10-000 |
from US $498.15 |
||
|
20
|
20
02112-05123-000
Screw 5x12
1997-05-01~1998-10-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-0512A-000 SCREW1997-05-01~1998-10-01 |
02112-0512A-000 |
from US $0.80 |
||
|
21
|
21
37740-60D01-000 SWITCH ASSY,STOP LAMP5MT; 1997-05-01~1998-10-01 |
37740-60D01-000 |
US $42.40 |
||
|
22
|
22
37940-80000-000 SWITCH ASSY,PARKING BRAKE1997-05-01~1998-10-01 |
37940-80000-000 |
US $15.84 |
||
|
23
|
23
09140-10043-000 NUTNut, tie rod rh thread 1997-05-01~1998-10-01 |
09140-10043-000 |
from US $0.91 |
||
|
24
|
24
37670-80010-000 SWITCH ASSY,DOOR1997-05-01~1998-10-01 |
37670-80010-000 |
US $11.48 |
||
|
25
|
25
09250-14008-000 CAP(OD:17.3)1997-05-01~1998-10-01 |
09250-14008-000 |
US $1.12 |
||
|
26
|
26
37860-60A00-000 SWITCH ASSY,RR DEFOGGERV,W; 1997-05-01~1998-10-01 |
37860-60A00-000 |
US $28.84 |
||
|
27
|
27
09471-12135-000 BULB(CLEAR)クリア; V,W; 1997-05-01~1998-10-01 |
09471-12135-000 |
US $57 |
||
|
28
|
28
37870-80000-000 SWITCH ASSY,HTR FAN MOTOR1997-05-01~1998-10-01 |
37870-80000-000 |
US $64 |
||
|
29
|
29
03211-04103-000
Screw
1997-05-01~1998-10-01 |
03211-04103-000 |
— | ||
| replacements | |||||
|
29
|
29
03211-0410B-000 SCREW1997-05-01~1998-10-01 |
03211-0410B-000 |
from US $0.80 |
||
|
29
|
29
03211-0410A-000 SCREW1997-05-01~1998-10-01 |
03211-0410A-000 |
from US $1.31 |
||
|
30
|
30
38500-70E00-000 HORN ASSY,LOW PITCHED1997-05-01~1998-10-01 |
38500-70E00-000 |
US $74.40 |
||
|
31
|
31
01570-08123-000
Bolt
1997-05-01~1998-10-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
31
|
31
01570-0812A-000 Bolt1997-05-01~1998-10-01 |
01570-0812A-000 |
US $14.40 |
||
|
32
|
32
38610-84001-000
リレー,ターンシグナル/4ウェイ
OMRON; 1997-05-01~1998-10-01 |
38610-84001-000 |
— | ||
| replacement | |||||
|
32
|
32
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way OMRON; 1997-05-01~1998-10-01 |
38610-76G00-000 |
US $63.20 |
||
|
33
|
33
38860-72G00-000 RELAY ASSYRelay, air con ラジエータファンリレー; K6A; 1997-05-01~1998-10-01 |
38860-72G00-000 |
US $67.20 |
||
|
34
|
34
39400-83811-000 LIGHTER ASSY,CIGARETTECC,XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
39400-83811-000 |
US $14.40 |
||
|
35
|
35
39471-78001-000 RIM,CIGARETTE LIGHTERCC,XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
39471-78001-000 |
US $4.31 |
||
|
36
|
36
09160-23007-000 WASHER(23X34X1)CC,XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
09160-23007-000 |
US $15.50 |
||
|
38
|
38
37275-70E10-000 CAP,OPTION SW HOLE1997-05-01~1998-10-01 |
37275-70E10-000 |
US $11.20 |
||
|
39
|
39
09407-30401-000 CLAMP(L:300)K6A; 1997-05-01~1998-10-01 |
09407-30401-000 |
from US $7.79 |
||
|
47
|
47
38885-82C00-000 CONTROLLER ASSY,4WDXC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
38885-82C00-000 |
US $200 |
||
|
48
|
48
02162-06103-000
Bolt
XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
48
|
48
02162-0610A-000 SCREWXC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
02162-0610A-000 |
from US $0.64 |
||
