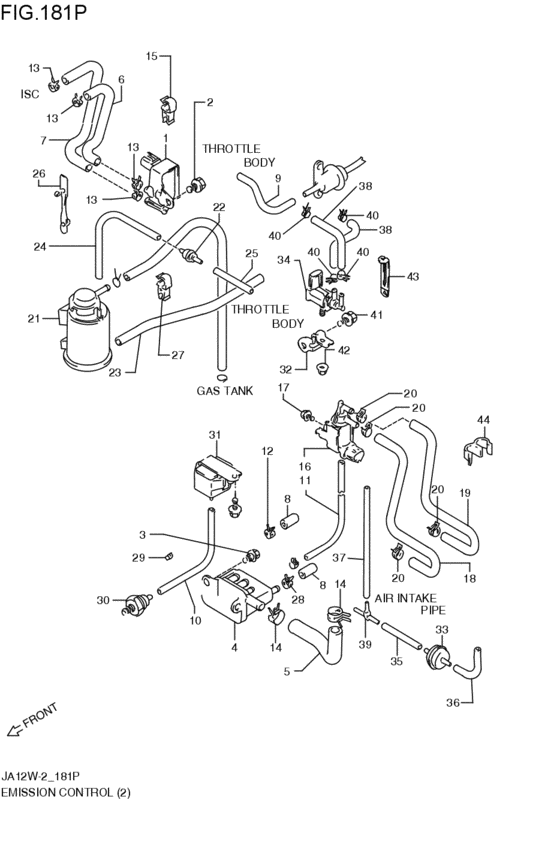

emission control (K6A; 1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-75D51-000
バルブ,ISC
K6A; 1997-05-01~1998-10-01 |
18117-75D51-000 |
— | ||
|
2
|
2
01550-08123-000
Bolt
K6A; 1997-05-01~1998-10-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0812B-000 BoltPlug, drain K6A; 1997-05-01~1998-10-01 |
01550-0812B-000 |
from US $0.96 |
||
|
2
|
2
01550-0812A-000 BoltK6A; 1997-05-01~1998-10-01 |
01550-0812A-000 |
from US $0.91 |
||
|
3
|
3
18495-50E00-000 BoltK6A; 1997-05-01~1998-10-01 |
18495-50E00-000 |
US $2.36 |
||
|
4
|
4
18575-80F50-000
チャンバ,アイドルスロットルコントロール
K6A; 1997-05-01~1998-10-01 |
18575-80F50-000 |
— | ||
|
5
|
5
18586-83CA0-000
ホース,チャンバ,インレット
K6A; 1997-05-01~1998-10-01 |
18586-83CA0-000 |
— | ||
|
6
|
6
18588-80F50-000
ホース,インレット
K6A; 1997-05-01~1998-10-01 |
18588-80F50-000 |
— | ||
|
7
|
7
18589-80F50-000
ホース,アウトレット
K6A; 1997-05-01~1998-10-01 |
18589-80F50-000 |
— | ||
|
8
|
8
09251-05006-000 CAP(OD:11)Cap, balancer cover K6A:5MT; 1997-05-01~1998-10-01 |
09251-05006-000 |
from US $9.11 |
||
|
9
|
9
09355-35754-601
HOSE(3.5X7.5X601)
L:601>120; K6A; 1997-05-01~1998-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
9
|
9
09355-35006-601 Hose(3.5X7.5X601)L:601>120; K6A; 1997-05-01~1998-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
L:601>180; K6A; 1997-05-01~1998-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)L:601>180; K6A; 1997-05-01~1998-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
09355-35754-00B
HOSE(3.5X7.5X2000)
L:2000>640; K6A; 1997-05-01~1998-10-01 |
09355-35754-00B |
— | ||
| replacement | |||||
|
11
|
11
09355-35006-00B Hose(3.5X7.5X2000)L:2000>640; K6A; 1997-05-01~1998-10-01 |
09355-35006-00B |
US $28.80 |
||
|
12
|
12
09401-10409-000 CLIPK6A:5MT; 1997-05-01~1998-10-01 |
09401-10409-000 |
from US $1.12 |
||
|
13
|
13
09401-11415-000 CLIPK6A; 1997-05-01~1998-10-01 |
09401-11415-000 |
from US $1.06 |
||
|
14
|
14
09401-16403-000 CLIPClip, 2nd air hose no.2 K6A; 1997-05-01~1998-10-01 |
09401-16403-000 |
from US $3.86 |
||
|
15
|
15
09408-00111-000 CLAMPK6A; 1997-05-01~1998-10-01 |
09408-00111-000 |
US $2.08 |
||
|
17
|
17
01550-05083-000
Bolt
K6A; 1997-05-01~1998-10-01 |
01550-05083-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-0508B-000 BoltK6A; 1997-05-01~1998-10-01 |
01550-0508B-000 |
from US $2.28 |
||
|
21
|
21
18560-82C00-000
キャニスタ
K6A; 1997-05-01~1998-10-01 |
18560-82C00-000 |
— | ||
|
22
|
22
18565-84150-000
バルブ,キャニスタパージ
K6A; 1997-05-01~1998-10-01 |
18565-84150-000 |
— | ||
| replacement | |||||
|
22
|
22
18565-84151-000 VALVE,CANISTER PURGEK6A; 1997-05-01~1998-10-01 |
18565-84151-000 |
US $21.60 |
||
|
23
|
23
09351-70113-600 HOSE(7X11X600)L:600>260; K6A; 1997-05-01~1998-10-01 |
09351-70113-600 |
US $3.52 |
||
|
24
|
24
09355-35754-601
HOSE(3.5X7.5X601)
L:601>210; K6A; 1997-05-01~1998-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
24
|
24
09355-35006-601 Hose(3.5X7.5X601)L:601>210; K6A; 1997-05-01~1998-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
25
|
25
09355-35754-601
HOSE(3.5X7.5X601)
L:601>40; K6A; 1997-05-01~1998-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
25
|
25
09355-35006-601 Hose(3.5X7.5X601)L:601>40; K6A; 1997-05-01~1998-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
26
|
26
09407-05406-000 CLAMP(L:118)K6A; 1997-05-01~1998-10-01 |
09407-05406-000 |
from US $1.06 |
||
|
27
|
27
09408-00111-000 CLAMPK6A; 1997-05-01~1998-10-01 |
09408-00111-000 |
US $2.08 |
||
|
28
|
28
09401-10409-000 CLIPK6A; 1997-05-01~1998-10-01 |
09401-10409-000 |
from US $1.12 |
||
|
29
|
29
15616-64D00-000 JETK6A; 1997-05-01~1998-10-01 |
15616-64D00-000 |
US $3.64 |
||
|
30
|
30
18133-61A01-000 FILTER,GASK6A; 1997-05-01~1998-10-01 |
18133-61A01-000 |
US $29.62 |
||
|
31
|
31
18590-73G10-000
センサ,プレッシャ
K6A; 1997-05-01~1998-10-01 |
18590-73G10-000 |
— | ||
|
32
|
32
18113-83CA1-000
ブラケット,コントロールバルブ
K6A; 1997-05-01~1998-10-01 |
18113-83CA1-000 |
— | ||
|
33
|
33
18114-80020-000
VALVE,VACUUM TRANSMITTING
K6A; 1997-05-01~1998-10-01 |
18114-80020-000 |
— | ||
|
34
|
34
18117-73G00-000
バルブ,ウエストゲートコントロール
K6A; 1997-05-01~1998-10-01 |
18117-73G00-000 |
— | ||
|
35
|
35
09355-35754-601
HOSE(3.5X7.5X601)
L:601>40; K6A; 1997-05-01~1998-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
35
|
35
09355-35006-601 Hose(3.5X7.5X601)L:601>40; K6A; 1997-05-01~1998-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
36
|
36
09355-35754-601
HOSE(3.5X7.5X601)
L:601>40; K6A; 1997-05-01~1998-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
36
|
36
09355-35006-601 Hose(3.5X7.5X601)L:601>40; K6A; 1997-05-01~1998-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
37
|
37
09355-35754-601
HOSE(3.5X7.5X601)
L:601>100; K6A; 1997-05-01~1998-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
37
|
37
09355-35006-601 Hose(3.5X7.5X601)L:601>100; K6A; 1997-05-01~1998-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
38
|
38
09355-40805-600 HOSE(4X8X600)L:600>100; K6A; 1997-05-01~1998-10-01 |
09355-40805-600 |
from US $6.24 |
||
|
39
|
39
09367-04009-000 JOINTJoint, 3 way K6A; 1997-05-01~1998-10-01 |
09367-04009-000 |
from US $1.67 |
||
|
40
|
40
09401-07402-000
Clip, boost hose
K6A; 1997-05-01~1998-10-01 |
09401-07402-000 |
— | ||
| replacement | |||||
|
40
|
40
09401-08409-000 CLIPK6A; 1997-05-01~1998-10-01 |
09401-08409-000 |
from US $0.99 |
||
|
41
|
41
01550-08163-000
Bolt, holder
K6A; 1997-05-01~1998-10-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
41
|
41
01550-0816B-000 BoltK6A; 1997-05-01~1998-10-01 |
01550-0816B-000 |
from US $0.91 |
||
|
41
|
41
01550-0816A-000 BoltBolt, rear K6A; 1997-05-01~1998-10-01 |
01550-0816A-000 |
from US $0.91 |
||
|
42
|
42
08316-10063-000
Nut
K6A; 1997-05-01~1998-10-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
42
|
42
08316-1006B-000 NUTK6A; 1997-05-01~1998-10-01 |
08316-1006B-000 |
from US $0.76 |
||
|
43
|
43
09404-08206-000 CLAMP(L:65 T:0.8)Clamp K6A; 1997-05-01~1998-10-01 |
09404-08206-000 |
from US $1.28 |
||
|
44
|
44
09408-00100-000 CLIPK6A; 1997-05-01~1998-10-01 |
09408-00100-000 |
US $19.50 |
||
