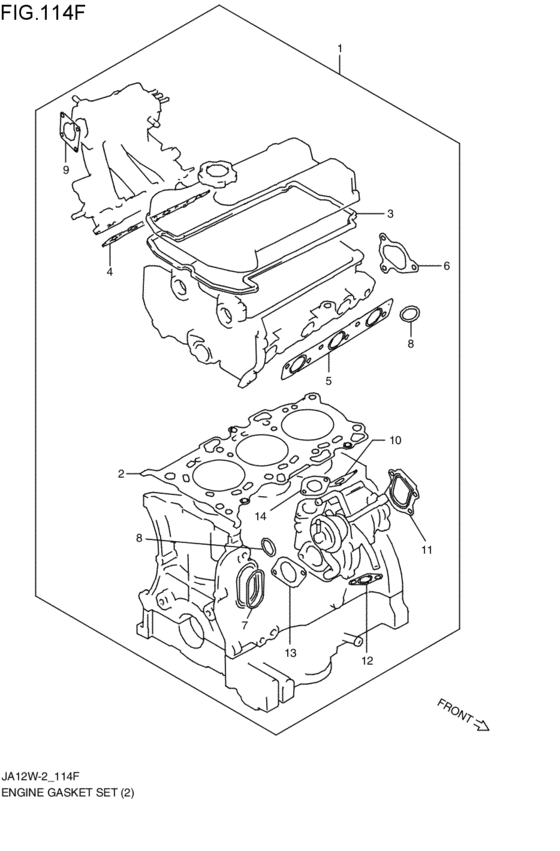

engine gasket set (K6A; 1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11401-73834-000
ガスケットセット,エンジン
K6A; 1997-05-01~1997-07-01 |
11401-73834-000 |
— | ||
| replacement | |||||
|
1
|
1
11402-73873-000 GASKET SET,ENGINEK6A; 1997-05-01~1997-07-01 |
11402-73873-000 |
US $427.20 |
||
|
1
|
1
11401-73892-000
ガスケットセット,エンジン
K6A; 1997-07-01~1998-10-01 |
11401-73892-000 |
— | ||
| replacement | |||||
|
1
|
1
11402-73882-000
New Genuine Part
K6A; 1997-07-01~1998-10-01 |
11402-73882-000 |
— | ||
|
2
|
2
11141-73G00-000
Gasket, cylinder head
K6A; 1997-05-01~1998-10-01 |
11141-73G00-000 |
— | ||
| replacement | |||||
|
2
|
2
11141-73G03-000 GASKET,CYL HEADK6A; 1997-05-01~1998-10-01 |
11141-73G03-000 |
US $163.20 |
||
|
3
|
3
11189-73G00-000 GASKET,CYL HEAD COVERK6A; 1997-05-01~1998-10-01 |
11189-73G00-000 |
US $86.64 |
||
|
4
|
4
13119-73G02-000 GASKET, INTAKE MANIFOLDK6A; 1997-05-01~1997-07-01 |
13119-73G02-000 |
US $24.80 |
||
|
4
|
4
13119-73G40-000 GASKET,INTK MANFGasket, intake manifold K6A; 1997-07-01~1998-10-01 |
13119-73G40-000 |
from US $8.93 |
||
|
5
|
5
14141-73G02-000 GASKET,EXH MANFGasket, exhaust manifold K6A; 1997-05-01~1998-10-01 |
14141-73G02-000 |
from US $18.68 |
||
|
6
|
6
17699-73G01-000 GASKET,THERMOSTAT CASEGasket, thermostat case K6A; 1997-05-01~1998-10-01 |
17699-73G01-000 |
from US $3.74 |
||
|
7
|
7
17611-73G00-000
O ring
K6A; 1997-05-01~1998-10-01 |
17611-73G00-000 |
— | ||
| replacement | |||||
|
7
|
7
17611-73G03-000 O-RING,WATER PUMPK6A; 1997-05-01~1998-10-01 |
17611-73G03-000 |
from US $4.95 |
||
|
8
|
8
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe K6A; 1997-05-01~1998-10-01 |
17849-53E00-000 |
US $1.52 |
||
|
9
|
9
13421-73G01-000
GASKET,THROTTLE BODY
K6A; 1997-05-01~1998-10-01 |
13421-73G01-000 |
— | ||
|
10
|
10
14181-54A51-000 GASKET,EXH MANFGasket, exhaust manifold K6A; 1997-05-01~1998-10-01 |
14181-54A51-000 |
from US $18 |
||
|
11
|
11
14182-85550-000
ガスケット,エキゾーストパイプ
K6A; 1997-05-01~1998-10-01 |
14182-85550-000 |
— | ||
| replacement | |||||
|
11
|
11
14182-85551-000 GASKET,EXH PIPEGasket, t/c outlet pipe K6A; 1997-05-01~1998-10-01 |
14182-85551-000 |
US $11.10 |
||
|
12
|
12
13945-70G50-000 GASKET,OIL DRAINGasket, oil drain K6A; 1997-05-01~1998-10-01 |
13945-70G50-000 |
from US $4.68 |
||
|
13
|
13
13955-56F00-000 GASKET,INTK AIR PIPEGasket, intk air pipe K6A; 1997-05-01~1998-10-01 |
13955-56F00-000 |
US $2.28 |
||
|
14
|
14
13965-56F00-000 GASKET,OUTLET AIR PIPEGasket, outlet air pipe K6A; 1997-05-01~1998-10-01 |
13965-56F00-000 |
US $2.40 |
||
