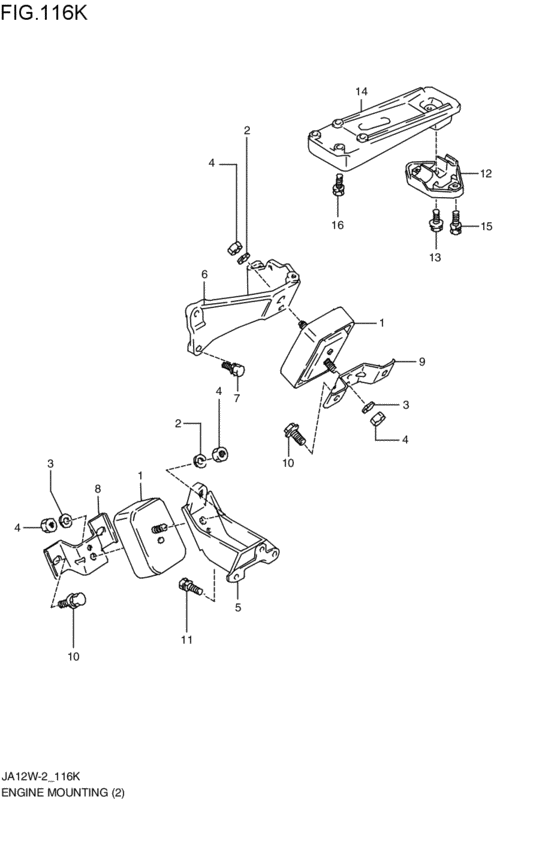

engine mounting (K6A:5MT; 1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-82C00-000 MOUNTING,ENG FRK6A:5MT; 1997-05-01~1998-10-01 |
11610-82C00-000 |
US $125.60 |
||
|
2
|
2
08321-01103-000
Washer
K6A:5MT; 1997-05-01~1998-10-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
2
|
2
08321-0110B-000 WASHER,LOCKWasher, knuckle end K6A:5MT; 1997-05-01~1998-10-01 |
08321-0110B-000 |
from US $0.96 |
||
|
2
|
2
08321-0110A-000 WASHER,LOCKK6A:5MT; 1997-05-01~1998-10-01 |
08321-0110A-000 |
from US $0.96 |
||
|
3
|
3
08321-01103-000
Washer
K6A:5MT; 1997-05-01~1998-10-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0110B-000 WASHER,LOCKWasher, knuckle end K6A:5MT; 1997-05-01~1998-10-01 |
08321-0110B-000 |
from US $0.96 |
||
|
3
|
3
08321-0110A-000 WASHER,LOCKK6A:5MT; 1997-05-01~1998-10-01 |
08321-0110A-000 |
from US $0.96 |
||
|
4
|
4
08310-00103-000
Nut
K6A:5MT; 1997-05-01~1998-10-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0010B-000 NUTK6A:5MT; 1997-05-01~1998-10-01 |
08310-0010B-000 |
from US $0.83 |
||
|
4
|
4
08310-0010A-000 NUTK6A:5MT; 1997-05-01~1998-10-01 |
08310-0010A-000 |
from US $0.80 |
||
|
5
|
5
11641-83C00-000
ブラケット,エンジンフロントマウンチング,ライト
K6A:5MT; 1997-05-01~1998-10-01 |
11641-83C00-000 |
— | ||
|
6
|
6
11651-83CA0-000 BRACKET,ENG FR MTG,LK6A:5MT; 1997-05-01~1998-10-01 |
11651-83CA0-000 |
US $172.80 |
||
|
7
|
7
01550-08253-000
Bolt, rear
K6A:5MT; 1997-05-01~1998-10-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0825B-000 BoltK6A:5MT; 1997-05-01~1998-10-01 |
01550-0825B-000 |
from US $1.06 |
||
|
7
|
7
01550-0825A-000 BoltK6A:5MT; 1997-05-01~1998-10-01 |
01550-0825A-000 |
from US $0.47 |
||
|
8
|
8
11661-80002-000 BRACKET,FRAME SIDE MTG,RK6A:5MT; 1997-05-01~1998-10-01 |
11661-80002-000 |
US $8.10 |
||
|
9
|
9
11671-80011-000 BRACKET,FRAME SIDE MTG,LK6A:5MT; 1997-05-01~1998-10-01 |
11671-80011-000 |
US $8.46 |
||
|
10
|
10
09118-10070-000
Bolt,10x30
K6A:5MT; 1997-05-01~1998-10-01 |
09118-10070-000 |
— | ||
| replacement | |||||
|
10
|
10
09118-10070-XC0 BOLT(10X30)K6A:5MT; 1997-05-01~1998-10-01 |
09118-10070-XC0 |
US $23.60 |
||
|
11
|
11
01570-10253-000
ボルト
K6A:5MT; 1997-05-01~1998-10-01 |
01570-10253-000 |
— | ||
| replacement | |||||
|
11
|
11
01570-1025A-000 BoltK6A:5MT; 1997-05-01~1998-10-01 |
01570-1025A-000 |
US $1.12 |
||
|
12
|
12
11710-80010-000
マウンチング,エンジン,リヤ
K6A:5MT; 1997-05-01~1998-10-01 |
11710-80010-000 |
— | ||
| replacement | |||||
|
12
|
12
11710-80011-000 MOUNTING,ENG RRK6A:5MT; 1997-05-01~1998-10-01 |
11710-80011-000 |
US $121.60 |
||
|
13
|
13
01580-08203-000
Bolt, rear
K6A:5MT; 1997-05-01~1998-10-01 |
01580-08203-000 |
— | ||
| replacement | |||||
|
13
|
13
01580-0820A-000 BoltK6A:5MT; 1997-05-01~1998-10-01 |
01580-0820A-000 |
from US $0.91 |
||
|
14
|
14
11741-82C01-000
ブラケット,エンジンリヤマウンチング
K6A:5MT; 1997-05-01~1998-10-01 |
11741-82C01-000 |
— | ||
|
15
|
15
01570-08163-000
Bolt
K6A:5MT; 1997-05-01~1998-10-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-0816A-000 BoltK6A:5MT; 1997-05-01~1998-10-01 |
01570-0816A-000 |
from US $1.12 |
||
|
16
|
16
01570-08303-000
Bolt, rear
K6A:5MT; 1997-05-01~1998-10-01 |
01570-08303-000 |
— | ||
| replacement | |||||
|
16
|
16
01570-0830A-000 BoltK6A:5MT; 1997-05-01~1998-10-01 |
01570-0830A-000 |
US $1.12 |
||
