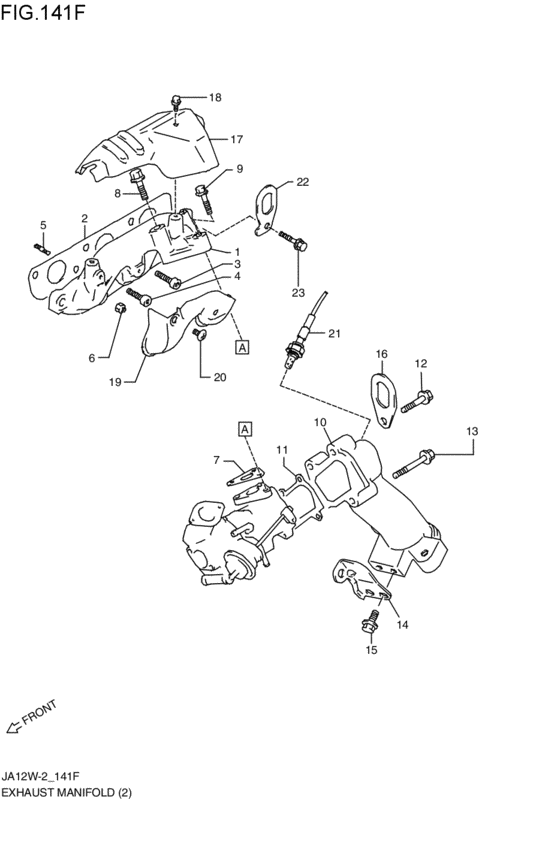

exhaust manifold (K6A; 1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-73G03-000
マニホールド,エキゾースト
K6A; 1997-05-01~1998-10-01 |
14111-73G03-000 |
— | ||
| replacements | |||||
|
1
|
1
14111-81AA2-000 MANIFOLD,EXHK6A; 1997-05-01~1998-10-01 |
14111-81AA2-000 |
US $417.60 |
||
|
1
|
1
14131-78G52-000 COVER,EXH MANFK6A; 1997-05-01~1998-10-01 |
14131-78G52-000 |
US $49.60 |
||
|
2
|
2
14141-73G02-000 GASKET,EXH MANFGasket, exhaust manifold K6A; 1997-05-01~1998-10-01 |
14141-73G02-000 |
from US $18.68 |
||
|
3
|
3
14118-73G01-000 BOLT,EXH MANFK6A; 1997-05-01~1998-10-01 |
14118-73G01-000 |
from US $15.45 |
||
|
4
|
4
14118-73G01-000 BOLT,EXH MANFK6A; 1997-05-01~1998-10-01 |
14118-73G01-000 |
from US $15.45 |
||
|
5
|
5
14119-81402-000 STUD BOLTK6A; 1997-05-01~1998-10-01 |
14119-81402-000 |
US $2.72 |
||
|
6
|
6
09159-08056-000 NUTK6A; 1997-05-01~1998-10-01 |
09159-08056-000 |
US $1.28 |
||
|
7
|
7
14181-54A51-000 GASKET,EXH MANFGasket, exhaust manifold K6A; 1997-05-01~1998-10-01 |
14181-54A51-000 |
from US $18 |
||
|
8
|
8
14119-54A50-000 BOLT,EXH T/C L:58K6A; 1997-05-01~1998-10-01 |
14119-54A50-000 |
from US $12.47 |
||
|
9
|
9
09103-08118-000 BOLT(8X35)K6A; 1997-05-01~1998-10-01 |
09103-08118-000 |
from US $10.55 |
||
|
10
|
10
14115-83CA0-000
Pipe, exhaust
K6A; 1997-05-01~1998-10-01 |
14115-83CA0-000 |
— | ||
|
11
|
11
14182-85550-000
ガスケット,エキゾーストパイプ
K6A; 1997-05-01~1998-10-01 |
14182-85550-000 |
— | ||
| replacement | |||||
|
11
|
11
14182-85551-000 GASKET,EXH PIPEGasket, t/c outlet pipe K6A; 1997-05-01~1998-10-01 |
14182-85551-000 |
US $11.10 |
||
|
12
|
12
09103-08118-000 BOLT(8X35)K6A; 1997-05-01~1998-10-01 |
09103-08118-000 |
from US $10.55 |
||
|
13
|
13
09103-08120-000 BOLT(8X51)K6A; 1997-05-01~1998-10-01 |
09103-08120-000 |
US $28 |
||
|
14
|
14
14171-80700-000
ブラケット,ターボチャージャ
K6A; 1997-05-01~1998-10-01 |
14171-80700-000 |
— | ||
| replacement | |||||
|
14
|
14
14171-8070V-000
ブラケット,ターボチャージャ
K6A; 1997-05-01~1998-10-01 |
14171-8070V-000 |
— | ||
|
15
|
15
01550-08163-000
Bolt, holder
K6A; 1997-05-01~1998-10-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0816B-000 BoltK6A; 1997-05-01~1998-10-01 |
01550-0816B-000 |
from US $0.91 |
||
|
15
|
15
01550-0816A-000 BoltBolt, rear K6A; 1997-05-01~1998-10-01 |
01550-0816A-000 |
from US $0.91 |
||
|
16
|
16
11851-62B00-000 HOOKK6A; 1997-05-01~1998-10-01 |
11851-62B00-000 |
from US $1.87 |
||
|
17
|
17
14131-73G02-000
カバー,エキゾーストマニホールド,アッパ
K6A; 1997-05-01~1998-10-01 |
14131-73G02-000 |
— | ||
|
18
|
18
09103-06168-000 BOLT(6X10)K6A; 1997-05-01~1998-10-01 |
09103-06168-000 |
from US $0.95 |
||
|
19
|
19
14135-73G00-000
カバー,エキゾーストマニホールド,ロア
K6A; 1997-05-01~1998-10-01 |
14135-73G00-000 |
— | ||
|
20
|
20
02142-06103-000
Screw
K6A; 1997-05-01~1998-10-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
20
|
20
02142-0610B-000 SCREWStopper, cl rlse cam shaft K6A; 1997-05-01~1998-10-01 |
02142-0610B-000 |
from US $0.76 |
||
|
20
|
20
02142-0610A-000 SCREWK6A; 1997-05-01~1998-10-01 |
02142-0610A-000 |
from US $0.96 |
||
|
21
|
21
18213-83CA0-000
センサ,オキシジェン
NGK; K6A; 1997-05-01~1998-10-01 |
18213-83CA0-000 |
— | ||
|
22
|
22
11851-78G00-000
フック,エンジン
K6A; 1998-01-01~1998-10-01 |
11851-78G00-000 |
— | ||
| replacement | |||||
|
22
|
22
11851-62B00-000 HOOKK6A; 1998-01-01~1998-10-01 |
11851-62B00-000 |
from US $1.87 |
||
|
23
|
23
01550-08163-000
Bolt, holder
K6A; 1998-01-01~1998-10-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0816B-000 BoltK6A; 1998-01-01~1998-10-01 |
01550-0816B-000 |
from US $0.91 |
||
|
23
|
23
01550-0816A-000 BoltBolt, rear K6A; 1998-01-01~1998-10-01 |
01550-0816A-000 |
from US $0.91 |
||
