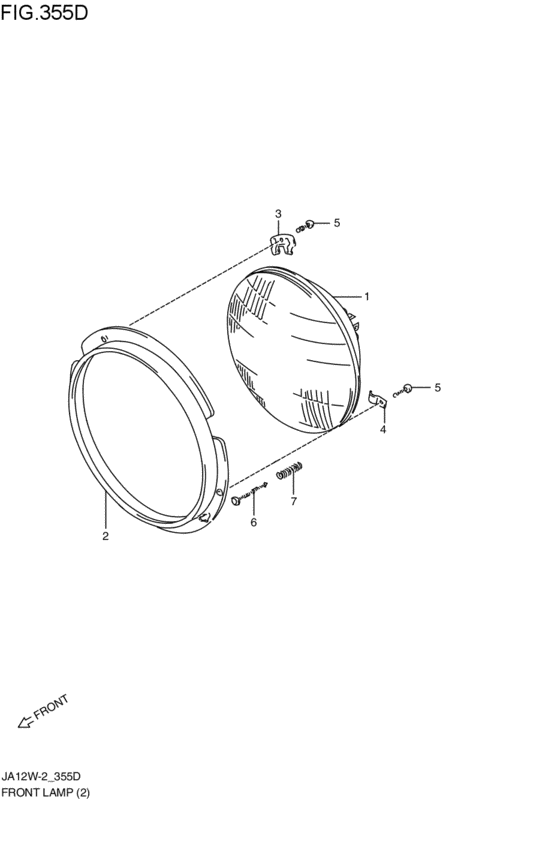

front lamp (1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35121-83021-000 UNIT,LAMPCC,XC,XL,XLL,XE,XF,XG; 1997-05-01~1998-10-01 |
35121-83021-000 |
US $256 |
||
|
2
|
2
35131-51032-000 RIM,HEAD LAMP1997-05-01~1998-10-01 |
35131-51032-000 |
US $47.20 |
||
|
3
|
3
35132-72600-000 PLATE,NO.21997-05-01~1998-10-01 |
35132-72600-000 |
US $1.60 |
||
|
4
|
4
35136-51030-000 PLATE,NO.31997-05-01~1998-10-01 |
35136-51030-000 |
US $1.60 |
||
|
5
|
5
02112-04087-000 SCREW1997-05-01~1998-10-01 |
02112-04087-000 |
from US $0.80 |
||
|
6
|
6
35151-80C10-000
スクリュ,ヘッドランプ
1997-05-01~1998-10-01 |
35151-80C10-000 |
— | ||
| replacement | |||||
|
6
|
6
09122-45002-000 SCREW(5X45)1997-05-01~1998-10-01 |
09122-45002-000 |
US $2.24 |
||
|
7
|
7
35154-80C00-000
スプリング,ヘッドランプ
1997-05-01~1998-10-01 |
35154-80C00-000 |
— | ||
| replacement | |||||
|
7
|
7
35154-80C01-000 SPRING,HEADLAMP1997-05-01~1998-10-01 |
35154-80C01-000 |
US $4.16 |
||
