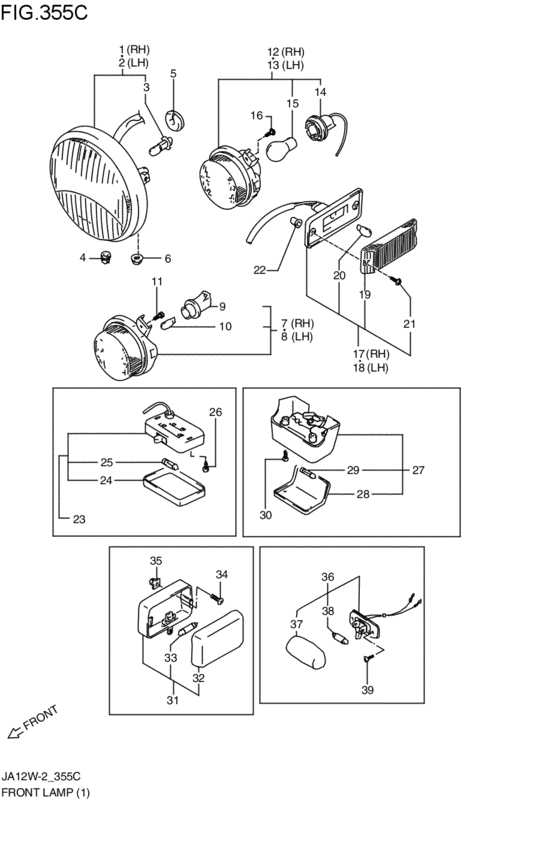

front lamp (1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35501-80C20-000
ランプアッシ,フォグ,ライト
V,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
35501-80C20-000 |
— | ||
|
2
|
2
35502-80C20-000
ランプアッシ,フォグ,レフト
V,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
35502-80C20-000 |
— | ||
|
3
|
3
09471-12106-000 BULB(12V55W,H3)V,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
09471-12106-000 |
US $174.80 |
||
| replacement | |||||
|
3
|
3
09471-12106-CDN
Bulb,h3 64151
V,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
09471-12106-CDN |
— | ||
|
4
|
4
35522-80C00-000 GROMMET,FOG LAMPV,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
35522-80C00-000 |
US $1.95 |
||
|
5
|
5
09308-08007-000 GROMMETV,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
09308-08007-000 |
US $1.92 |
||
|
6
|
6
08316-10103-000
Nut
V,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1010B-000 NUTV,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
08316-1010B-000 |
from US $0.80 |
||
|
7
|
7
36101-80C00-000 LAMP ASSY,FR POSN,R1997-05-01~1998-10-01 |
36101-80C00-000 |
US $132.24 |
||
|
8
|
8
36102-80C00-000 LAMP ASSY,FR POSN,L1997-05-01~1998-10-01 |
36102-80C00-000 |
US $132.24 |
||
|
9
|
9
35618-70B20-000
Socket
1997-05-01~1998-10-01 |
35618-70B20-000 |
— | ||
| replacement | |||||
|
9
|
9
35618-70B00-000 SOCKET,LAMP1997-05-01~1998-10-01 |
35618-70B00-000 |
US $6.40 |
||
|
10
|
10
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 1997-05-01~1998-10-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 1997-05-01~1998-10-01 |
09471-12216-000 |
from US $3.02 |
||
|
11
|
11
03541-04163-000
Screw
1997-05-01~1998-10-01 |
03541-04163-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0416A-000 SCREWScrew, trunk box lamp 1997-05-01~1998-10-01 |
03541-0416A-000 |
from US $0.76 |
||
|
12
|
12
35601-80C00-000 LAMP ASSY,FR TURN,R1997-05-01~1998-10-01 |
35601-80C00-000 |
US $187.20 |
||
|
13
|
13
35602-80C00-000 LAMP ASSY,FR TURN,L1997-05-01~1998-10-01 |
35602-80C00-000 |
US $132.24 |
||
|
14
|
14
35618-80C00-000 SOCKET,LAMP1997-05-01~1998-10-01 |
35618-80C00-000 |
US $52.45 |
||
|
15
|
15
09471-12045-000 BULB(12V21W)1997-05-01~1998-10-01 |
09471-12045-000 |
from US $4.41 |
||
|
16
|
16
03541-04163-000
Screw
1997-05-01~1998-10-01 |
03541-04163-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0416A-000 SCREWScrew, trunk box lamp 1997-05-01~1998-10-01 |
03541-0416A-000 |
from US $0.76 |
||
|
17
|
17
36410-80C00-000 LAMP ASSY,SIDE TURN SIG,R1997-05-01~1998-10-01 |
36410-80C00-000 |
US $76.77 |
||
|
18
|
18
36430-80C00-000 LAMP ASSY,SIDE TURN SIG,L1997-05-01~1998-10-01 |
36430-80C00-000 |
US $76.77 |
||
|
19
|
19
36412-80000-000 LENS1997-05-01~1998-10-01 |
36412-80000-000 |
US $7.60 |
||
|
20
|
20
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 1997-05-01~1998-10-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
20
|
20
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 1997-05-01~1998-10-01 |
09471-12216-000 |
from US $3.02 |
||
|
21
|
21
03112-04163-000
Screw
1997-05-01~1998-10-01 |
03112-04163-000 |
— | ||
| replacement | |||||
|
21
|
21
03111-0416A-000 SCREW1997-05-01~1998-10-01 |
03111-0416A-000 |
US $0.80 |
||
|
22
|
22
09159-04004-000 NUT1997-05-01~1998-10-01 |
09159-04004-000 |
US $1.76 |
||
|
27
|
27
36210-80C00-000 LAMP ASSY,ROOMV,W; 1997-05-01~1998-10-01 |
36210-80C00-000 |
US $34.22 |
||
|
28
|
28
36212-50F30-000 LENS,ROOM LAMPV,W; 1997-05-01~1998-10-01 |
36212-50F30-000 |
from US $15.36 |
||
|
29
|
29
09471-12073-000 BULB(12V,5W)TOKAI DENSO; V,W; 1997-05-01~1998-10-01 |
09471-12073-000 |
from US $2.40 |
||
|
30
|
30
03211-04207-000 SCREWV,W; 1997-05-01~1998-10-01 |
03211-04207-000 |
from US $0.80 |
||
|
31
|
31
36230-80C00-000
ランプアッシ,ラゲッジ
V,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
36230-80C00-000 |
— | ||
|
32
|
32
36212-79001-000 LENS,ROOM LAMPLens, room lamp V,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
36212-79001-000 |
from US $11.80 |
||
|
33
|
33
09471-12073-000 BULB(12V,5W)TOKAI DENSO; V,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
09471-12073-000 |
from US $2.40 |
||
|
34
|
34
03541-04253-000
Screw
V,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
03541-04253-000 |
— | ||
| replacement | |||||
|
34
|
34
03541-0425B-000 SCREWV,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
03541-0425B-000 |
from US $3.35 |
||
|
35
|
35
09148-04021-000 NUTV,W:(XC,XL,XLL,XE,XF,XG); 1997-05-01~1998-10-01 |
09148-04021-000 |
from US $1.12 |
||
