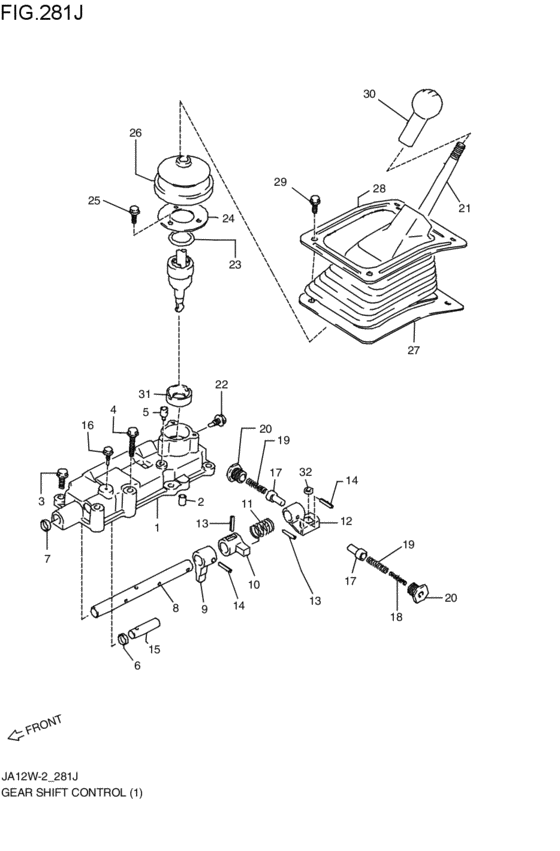

gearlever control (5MT; 1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25121-80703-000
ケース,ギヤシフトレバー
5MT; 1997-05-01~1998-10-01 |
25121-80703-000 |
— | ||
|
2
|
2
04211-09169-000 PIN5MT; 1997-05-01~1998-10-01 |
04211-09169-000 |
from US $0.68 |
||
|
3
|
3
01550-08253-000
Bolt, rear
5MT; 1997-05-01~1998-10-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 Bolt5MT; 1997-05-01~1998-10-01 |
01550-0825B-000 |
from US $1.06 |
||
|
3
|
3
01550-0825A-000 Bolt5MT; 1997-05-01~1998-10-01 |
01550-0825A-000 |
from US $0.47 |
||
|
4
|
4
01550-08503-000
Bolt
5MT; 1997-05-01~1998-10-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0850B-000 Bolt5MT; 1997-05-01~1998-10-01 |
01550-0850B-000 |
from US $1.22 |
||
|
5
|
5
24821-09001-000 PLUG,T/M BREATHERPlug, breather 5MT; 1997-05-01~1998-10-01 |
24821-09001-000 |
from US $2.97 |
||
|
6
|
6
09241-12002-000 PLUG5MT; 1997-05-01~1998-10-01 |
09241-12002-000 |
from US $1.26 |
||
|
7
|
7
09241-14002-000 PLUG(OD:14)5MT; 1997-05-01~1998-10-01 |
09241-14002-000 |
from US $1.76 |
||
|
8
|
8
25521-80702-000
シャフト,ギヤシフト
5MT; 1997-05-01~1998-10-01 |
25521-80702-000 |
— | ||
|
9
|
9
25541-80710-000
レバー,ギヤシフト
5MT; 1997-05-01~1998-10-01 |
25541-80710-000 |
— | ||
|
10
|
10
25271-80700-000
YOKE,REV GEAR SHIFT LIM
5MT; 1997-05-01~1998-10-01 |
25271-80700-000 |
— | ||
|
11
|
11
09448-16022-000
SPRING
5MT; 1997-05-01~1998-10-01 |
09448-16022-000 |
— | ||
|
12
|
12
25531-80703-000
アーム,ギヤシフト
5MT; 1997-05-01~1998-10-01 |
25531-80703-000 |
— | ||
|
13
|
13
09205-05012-000 PIN,SPRING(5X25)5MT; 1997-05-01~1998-10-01 |
09205-05012-000 |
from US $1.17 |
||
|
14
|
14
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) 5MT; 1997-05-01~1998-10-01 |
09205-06007-000 |
from US $1.04 |
||
|
15
|
15
25281-80700-000
SHAFT,REV GEAR SHF LIM
5MT; 1997-05-01~1998-10-01 |
25281-80700-000 |
— | ||
|
16
|
16
09135-06015-000 BOLT(6X17)5MT; 1997-05-01~1998-10-01 |
09135-06015-000 |
US $19.10 |
||
|
17
|
17
25341-80701-000 PIN,SELECT GUIDE5MT; 1997-05-01~1998-10-01 |
25341-80701-000 |
from US $3.94 |
||
|
18
|
18
09440-05033-000 SPRING5MT; 1997-05-01~1998-10-01 |
09440-05033-000 |
from US $0.70 |
||
|
19
|
19
25125-82C00-000 スプリング,セレクトリターン,アウタ5MT; 1997-05-01~1998-10-01 |
25125-82C00-000 |
US $1.21 |
||
|
20
|
20
09247-16005-000 PLUG5MT; 1997-05-01~1998-10-01 |
09247-16005-000 |
from US $1.80 |
||
|
21
|
21
28101-82C02-000
レバー,ギヤシフトコントロール
5MT; 1997-05-01~1998-10-01 |
28101-82C02-000 |
— | ||
|
22
|
22
09135-10005-000 BOLT(10X18.4)5MT; 1997-05-01~1998-10-01 |
09135-10005-000 |
from US $1.78 |
||
|
23
|
23
09164-24007-000 WASHER5MT; 1997-05-01~1998-10-01 |
09164-24007-000 |
from US $2.24 |
||
|
24
|
24
25125-80001-000 COVER,GEAR SHF LEVER CASE5MT; 1997-05-01~1998-10-01 |
25125-80001-000 |
from US $16.63 |
||
|
25
|
25
01550-06123-000
Bolt
5MT; 1997-05-01~1998-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BoltBolt, clamp 5MT; 1997-05-01~1998-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 Bolt5MT; 1997-05-01~1998-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
28135-80000-000 BOOT,NO.15MT; 1997-05-01~1998-10-01 |
28135-80000-000 |
from US $15.32 |
||
|
27
|
27
28104-82C00-000 BOOT,GR SHF CONT LEVER5MT; 1997-05-01~1998-10-01 |
28104-82C00-000 |
from US $20.63 |
||
|
28
|
28
28137-83000-000 COVER,GEAR SHF CONT BOOT5MT; 1997-05-01~1998-10-01 |
28137-83000-000 |
from US $6.28 |
||
|
29
|
29
01550-06123-000
Bolt
5MT; 1997-05-01~1998-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0612B-000 BoltBolt, clamp 5MT; 1997-05-01~1998-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
29
|
29
01550-0612A-000 Bolt5MT; 1997-05-01~1998-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
30
|
30
28113-81A80-5PK
KNOB,CONTROL LEVER
ブラック; 5MT; 1997-05-01~1998-10-01 |
28113-81A80-5PK |
— | ||
| replacement | |||||
|
30
|
30
28113-81A81-5PK KNOB,CONTROL LEVER(BLACK)ブラック; 5MT; 1997-05-01~1998-10-01 |
28113-81A81-5PK |
from US $21.06 |
||
|
31
|
31
28117-82C00-000
SEAT GEAR SHIFT
5MT; 1997-05-01~1998-10-01 |
28117-82C00-000 |
— | ||
| replacement | |||||
|
31
|
31
28117-82C02-000 SEAT,GEAR CONTROL LOWER5MT; 1997-05-01~1998-10-01 |
28117-82C02-000 |
from US $9.11 |
||
|
32
|
32
25551-82C00-000 BUSH5MT; 1997-05-01~1998-10-01 |
25551-82C00-000 |
US $4.05 |
||
