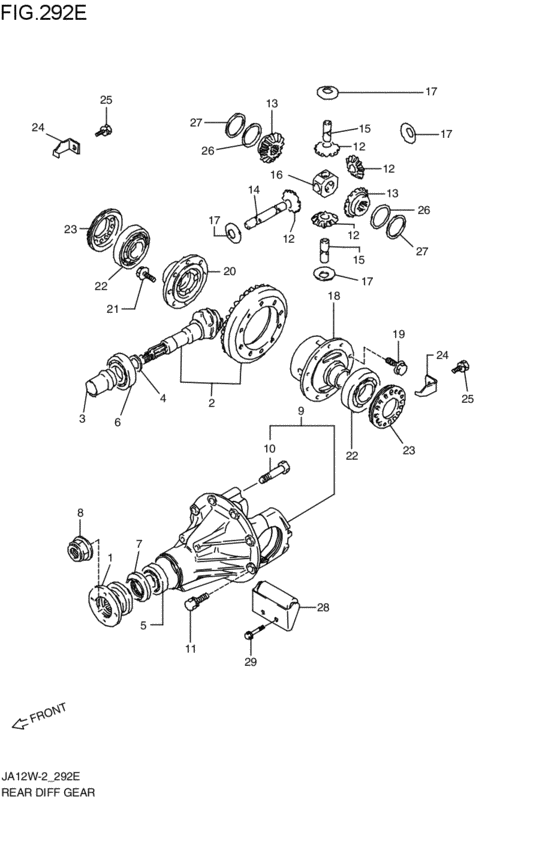

リヤデファレンシャルギヤ (1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-83C00-000 FLANGE,UNIVERSAL JOINT1997-05-01~1998-10-01 |
27110-83C00-000 |
from US $68.80 |
||
|
2
|
2
27300-55822-000
ベベルピニオン/ギヤセット
イッパン; C,V:5MT,W; 1997-05-01~1998-10-01 |
27300-55822-000 |
— | ||
|
3
|
3
27315-60A01-000 SPACER,DRIVE BEVEL PINION1997-05-01~1998-10-01 |
27315-60A01-000 |
from US $16.83 |
||
|
4
|
4
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) V,W; 1997-05-01~1998-10-01 |
09181-35101-000 |
from US $1.49 |
||
|
4
|
4
09181-35117-000 SHIM(35X42X1.12)V,W; 1997-05-01~1998-10-01 |
09181-35117-000 |
from US $1.44 |
||
|
4
|
4
09181-35118-000 SHIM(35X42X1.15)V,W; 1997-05-01~1998-10-01 |
09181-35118-000 |
from US $1.76 |
||
|
4
|
4
09181-35119-000 SHIM(35X42X1.18)V,W; 1997-05-01~1998-10-01 |
09181-35119-000 |
from US $1.82 |
||
|
4
|
4
09181-35121-000 SHIM(35X42X1.21)V,W; 1997-05-01~1998-10-01 |
09181-35121-000 |
from US $1.58 |
||
|
4
|
4
09181-35122-000 SHIM(35X42X1.24)V,W; 1997-05-01~1998-10-01 |
09181-35122-000 |
from US $1.76 |
||
|
4
|
4
09181-35124-000 SHIM(35X42X1.27)V,W; 1997-05-01~1998-10-01 |
09181-35124-000 |
from US $1.69 |
||
|
4
|
4
09181-35125-000 SHIM(35X42X1.3)V,W; 1997-05-01~1998-10-01 |
09181-35125-000 |
from US $1.76 |
||
|
5
|
5
09265-30012-000
Rt 30x72x21 brg
1997-05-01~1998-10-01 |
09265-30012-000 |
— | ||
| replacement | |||||
|
5
|
5
09265-30018-000 BEARING(30X72X20.75)1997-05-01~1998-10-01 |
09265-30018-000 |
from US $40.80 |
||
|
6
|
6
09265-35002-000
ベアリング,35X80X22.75
1997-05-01~1998-10-01 |
09265-35002-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-35011-000 BEARING(35X80X22.75)1997-05-01~1998-10-01 |
09265-35011-000 |
from US $40 |
||
|
7
|
7
09283-40027-000 SEAL,OIL(40x72x11x18)1997-05-01~1998-10-01 |
09283-40027-000 |
from US $8.80 |
||
|
8
|
8
27375-60A00-000 NUT,UNIVERSAL JOINT1997-05-01~1998-10-01 |
27375-60A00-000 |
from US $6.71 |
||
|
9
|
9
27450-83030-000 CARRIER ASSY,DIFF1997-05-01~1998-10-01 |
27450-83030-000 |
from US $232.81 |
||
|
10
|
10
09111-12010-000 BOLT(12X58)1997-05-01~1998-10-01 |
09111-12010-000 |
from US $2.43 |
||
|
11
|
11
01570-08253-000
Bolt, upper
1997-05-01~1998-10-01 |
01570-08253-000 |
— | ||
| replacements | |||||
|
11
|
11
01570-0825B-000 Bolt1997-05-01~1998-10-01 |
01570-0825B-000 |
from US $1.28 |
||
|
11
|
11
01570-0825A-000 Bolt1997-05-01~1998-10-01 |
01570-0825A-000 |
from US $1.06 |
||
|
12
|
12
27331-83020-000 PINION,DIFFERENTIAL1997-05-01~1998-10-01 |
27331-83020-000 |
from US $32.31 |
||
| replacements | |||||
|
12
|
12
27331-76A20-000
PINION,DIFFERENTIAL
1997-05-01~1998-10-01 |
27331-76A20-000 |
— | ||
|
12
|
12
27331-76A21-000 Pinion,differential1997-05-01~1998-10-01 |
27331-76A21-000 |
from US $31.91 |
||
|
13
|
13
27341-83000-000 GEAR,DIFF1997-05-01~1998-10-01 |
27341-83000-000 |
from US $49.88 |
||
|
14
|
14
27351-83000-000
シャフト,ピニオン,NO.1
1997-05-01~1998-10-01 |
27351-83000-000 |
— | ||
| replacement | |||||
|
14
|
14
27351-65D00-000 SHAFT,DIFF PINION NO.11997-05-01~1998-10-01 |
27351-65D00-000 |
from US $17.48 |
||
|
15
|
15
27355-83000-000
シャフト,ピニオン,NO.2
1997-05-01~1998-10-01 |
27355-83000-000 |
— | ||
| replacement | |||||
|
15
|
15
27355-65D00-000 SHAFT,DIFF PINION NO.21997-05-01~1998-10-01 |
27355-65D00-000 |
from US $13.77 |
||
|
16
|
16
27356-86081-000 JOINT,DIFF PINION SHAFT1997-05-01~1998-10-01 |
27356-86081-000 |
from US $27.65 |
||
|
17
|
17
09164-15006-000 WASHER1997-05-01~1998-10-01 |
09164-15006-000 |
from US $1.67 |
||
|
18
|
18
27411-83000-000 CASE,DIFF,L1997-05-01~1998-10-01 |
27411-83000-000 |
from US $128.52 |
||
|
19
|
19
09103-10028-000
Bolt, oil pump drive gear
1997-05-01~1998-10-01 |
09103-10028-000 |
— | ||
| replacement | |||||
|
19
|
19
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear 1997-05-01~1998-10-01 |
09103-10290-000 |
from US $1.76 |
||
|
20
|
20
27421-83000-000 CASE,DIFF,R1997-05-01~1998-10-01 |
27421-83000-000 |
from US $63.14 |
||
|
21
|
21
09103-08030-000
ボルト,8X18.5
1997-05-01~1998-10-01 |
09103-08030-000 |
— | ||
| replacement | |||||
|
21
|
21
09103-08348-000 BOLT(8X18.5)1997-05-01~1998-10-01 |
09103-08348-000 |
from US $1.76 |
||
|
22
|
22
09265-45002-000 BEARING(45.2X80X19.84)1997-05-01~1998-10-01 |
09265-45002-000 |
from US $45.60 |
||
|
23
|
23
27461-83000-000 ADJUSTER,DIFF SIDE BEARING1997-05-01~1998-10-01 |
27461-83000-000 |
from US $7.52 |
||
|
24
|
24
27462-63202-000 PLATE,BEARING LOCK1997-05-01~1998-10-01 |
27462-63202-000 |
from US $2.74 |
||
|
25
|
25
01550-08123-000
Bolt
1997-05-01~1998-10-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0812B-000 BoltPlug, drain 1997-05-01~1998-10-01 |
01550-0812B-000 |
from US $0.96 |
||
|
25
|
25
01550-0812A-000 Bolt1997-05-01~1998-10-01 |
01550-0812A-000 |
from US $0.91 |
||
|
26
|
26
09164-35003-000 WASHERCHKK; 1997-05-01~1998-10-01 |
09164-35003-000 |
from US $4.07 |
||
|
27
|
27
09160-35013-000 WASHER(35X46X0.8)CHKK; V,W; 1997-05-01~1998-10-01 |
09160-35013-000 |
from US $2.88 |
||
|
27
|
27
09160-35014-000 WASHER(35X46X0.7)CHKK; V,W; 1997-05-01~1998-10-01 |
09160-35014-000 |
from US $2.88 |
||
|
27
|
27
09160-35015-000 WASHER(35X46X0.6)CHKK; V,W; 1997-05-01~1998-10-01 |
09160-35015-000 |
from US $2.88 |
||
|
28
|
28
27471-55C00-000 DAMPER DIFF CARRIER1997-05-01~1997-11-01 |
27471-55C00-000 |
US $71.64 |
||
| replacements | |||||
|
28
|
28
01550-1020A-000 BoltBolt, bal sprocket 1997-05-01~1997-11-01 |
01550-1020A-000 |
from US $0.96 |
||
|
28
|
28
27471-55C01-000 DAMPER,DIFF CARRIER1997-05-01~1997-11-01 |
27471-55C01-000 |
US $71.64 |
||
|
28
|
28
27471-55C01-000 DAMPER,DIFF CARRIER1997-11-01~1998-10-01 |
27471-55C01-000 |
US $71.64 |
||
|
29
|
29
01550-10203-000
Bolt
1997-11-01~1998-10-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
29
|
29
01550-1020A-000 BoltBolt, bal sprocket 1997-11-01~1998-10-01 |
01550-1020A-000 |
from US $0.96 |
||
|
29
|
29
09103-10056-000 BOLT(10X20)1997-05-01~1997-11-01 |
09103-10056-000 |
from US $0.81 |
||
