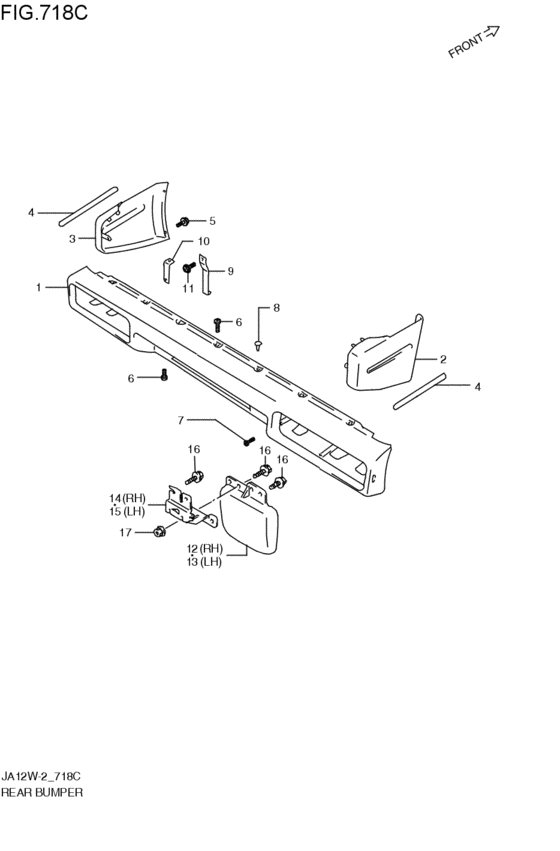

rear bumper (1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- XE
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-82CB0-799
BUMPER,RR,CENTER(PRIMARY)
プライマリ-; XL,XLL,XE,XG; 1997-05-01~1998-10-01 |
71811-82CB0-799 |
— | ||
|
2
|
2
71831-82CA0-799
バンパ,リヤサイド,ライト(プライマリー)
プライマリ-; XL,XLL,XE,XG; 1997-05-01~1998-10-01 |
71831-82CA0-799 |
— | ||
|
3
|
3
71841-82CA0-799
バンパ,リヤサイド,レフト(プライマリー)
プライマリ-; XL,XLL,XE,XG; 1997-05-01~1998-10-01 |
71841-82CA0-799 |
— | ||
|
4
|
4
71832-82CA0-0PG
モールディング,リヤバンパ,サイド(クローム)
クロ-ム; XE; 1997-05-01~1998-10-01 |
71832-82CA0-0PG |
— | ||
|
5
|
5
71869-60A00-000
ボルト,リヤバンパ
1997-05-01~1998-10-01 |
71869-60A00-000 |
— | ||
| replacement | |||||
|
5
|
5
71869-60A02-000 BOLT,RR BUMPER1997-05-01~1998-10-01 |
71869-60A02-000 |
US $1.60 |
||
|
6
|
6
09139-06072-000 SCREW(6X16)1997-05-01~1998-10-01 |
09139-06072-000 |
from US $1.28 |
||
|
7
|
7
09122-66004-000
Screw,6x14
1997-05-01~1998-10-01 |
09122-66004-000 |
— | ||
| replacement | |||||
|
7
|
7
09122-66007-000 SCREW(6X14)1997-05-01~1998-10-01 |
09122-66007-000 |
from US $0.80 |
||
|
8
|
8
09409-07325-5PK CLIP(BLACK)ブラック; 1997-05-01~1998-10-01 |
09409-07325-5PK |
from US $1.76 |
||
|
9
|
9
71851-82CA0-000 BRACKET,RR BUMPER INSIDE1997-05-01~1998-10-01 |
71851-82CA0-000 |
US $5.78 |
||
|
10
|
10
71852-82CA0-000 BRACKET,RR BUMPER OUTSIDE1997-05-01~1998-10-01 |
71852-82CA0-000 |
US $29.97 |
||
|
11
|
11
02162-06123-000
Bolt (6x12)
1997-05-01~1998-10-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02162-0612B-000 SCREWBolt 1997-05-01~1998-10-01 |
02162-0612B-000 |
from US $0.80 |
||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket 1997-05-01~1998-10-01 |
02162-0612A-000 |
from US $0.79 |
||
