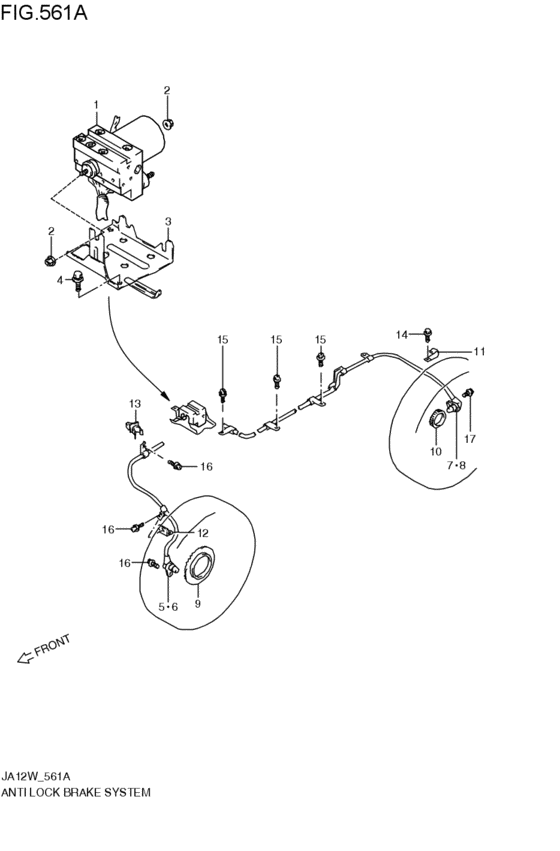

antilock brake system (ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- K6A
- transmission
- 5MT
- grade
- SF
- air bag
- NAB
- abs
- ABS
- x01
- W
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-82CA0-000
アクチュエータアッシ,アブソーバ
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
56100-82CA0-000 |
— | ||
|
2
|
2
08316-10083-000
Nut
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
2
|
2
08316-1008B-000 NUTABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
3
|
3
56160-82CA0-000
ブラケット,アクチュエータ
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
56160-82CA0-000 |
— | ||
| replacement | |||||
|
3
|
3
56160-70AV0-000
ブラケット,アクチュエータ
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
56160-70AV0-000 |
— | ||
|
4
|
4
02162-06123-000
Bolt (6x12)
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
02162-0612B-000 SCREWBolt ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
02162-0612B-000 |
from US $0.80 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
02162-0612A-000 |
from US $0.79 |
||
|
5
|
5
56210-82CA0-000
センサ,フロントホイール,ライト
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
56210-82CA0-000 |
— | ||
|
6
|
6
56220-82CA0-000
センサ,フロントホイール,レフト
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
56220-82CA0-000 |
— | ||
|
7
|
7
56310-82CA0-000
センサ,リヤホイール,ライト
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
56310-82CA0-000 |
— | ||
|
8
|
8
56320-82CA0-000
センサ,リヤホイール,レフト
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
56320-82CA0-000 |
— | ||
|
9
|
9
56411-70AA0-000
リング,フロントホイールセンサ
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
56411-70AA0-000 |
— | ||
|
10
|
10
56451-77E00-000 RING,RR WHEEL SENSORABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
56451-77E00-000 |
from US $40.29 |
||
|
11
|
11
09403-09316-000 CLAMPClamp, tilt limit lead ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09403-09316-000 |
US $11.80 |
||
|
12
|
12
56213-70AA0-000
ブラケット,フロントセンサ
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
56213-70AA0-000 |
— | ||
|
13
|
13
09403-08313-000 CLAMPABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09403-08313-000 |
from US $0.59 |
||
|
14
|
14
09132-06006-000 SCREW(6X12)ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
09132-06006-000 |
from US $0.88 |
||
|
15
|
15
02162-06123-000
Bolt (6x12)
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
02162-0612A-000 |
from US $0.79 |
||
|
16
|
16
02162-06123-000
Bolt (6x12)
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
02162-0612B-000 SCREWBolt ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
02162-0612B-000 |
from US $0.80 |
||
|
16
|
16
02162-0612A-000 SCREWBolt, bracket ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
02162-0612A-000 |
from US $0.79 |
||
|
17
|
17
01550-08123-000
Bolt
ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0812B-000 BoltPlug, drain ABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
01550-0812B-000 |
from US $0.96 |
||
|
17
|
17
01550-0812A-000 BoltABSシヨウ; SF:ABS; 1996-07-01~1997-04-01 |
01550-0812A-000 |
from US $0.91 |
||
