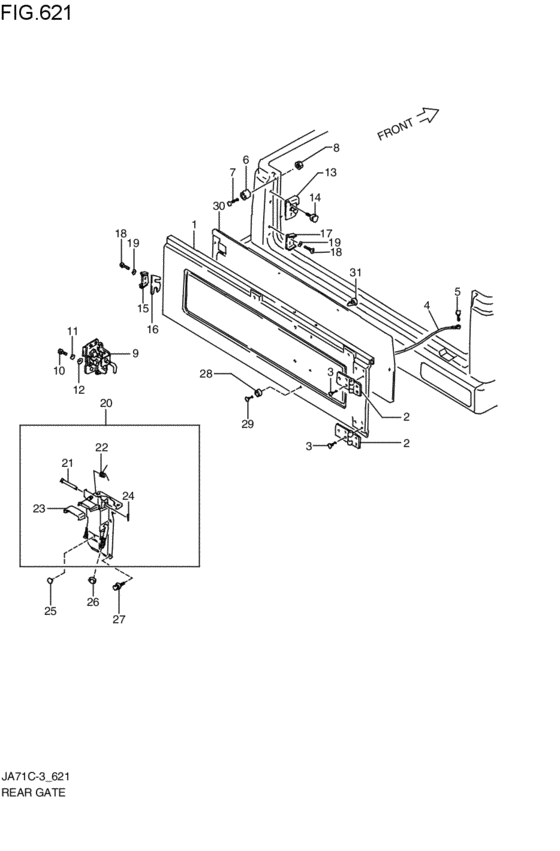

rear panel (ホロ; C; 1987-11-01~1990-01-01) Diagram Suzuki JIMNY
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- NORMAL
- type
- TYPE4
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67700-80002-000
PANEL ASSY,RR GATE
C; 1987-11-01~1990-01-01 |
67700-80002-000 |
— | ||
|
2
|
2
67790-80033-000 HINGE,RR GATEC; 1987-11-01~1990-01-01 |
67790-80033-000 |
US $27.97 |
||
|
3
|
3
09125-08002-000
スクリュ,8X20
C; 1987-11-01~1990-01-01 |
09125-08002-000 |
— | ||
| replacement | |||||
|
3
|
3
09125-08015-XC0 SCREW(8X20)C; 1987-11-01~1990-01-01 |
09125-08015-XC0 |
US $1.60 |
||
|
4
|
4
72850-80002-000 CABLE,RR GATEC; 1987-11-01~1990-01-01 |
72850-80002-000 |
US $8.66 |
||
|
5
|
5
09100-06075-000 BOLT(6X14)Bolt, carrier (6x14) C; 1987-11-01~1990-01-01 |
09100-06075-000 |
US $1.12 |
||
|
6
|
6
72875-80003-000 CUSHION,REAR GATEC; 1987-11-01~1990-01-01 |
72875-80003-000 |
US $2.88 |
||
|
7
|
7
02112-06163-000
Screw
C; 1987-11-01~1990-01-01 |
02112-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-0616B-000 SCREWC; 1987-11-01~1990-01-01 |
02112-0616B-000 |
from US $0.96 |
||
|
7
|
7
02112-0616A-000 SCREWC; 1987-11-01~1990-01-01 |
02112-0616A-000 |
from US $0.76 |
||
|
8
|
8
08313-11066-000
ナット
C; 1987-11-01~1990-01-01 |
08313-11066-000 |
— | ||
| replacements | |||||
|
8
|
8
08313-1006A-000 NUTC; 1987-11-01~1990-01-01 |
08313-1006A-000 |
from US $0.80 |
||
|
8
|
8
08313-1006B-000 NUTC; 1987-11-01~1990-01-01 |
08313-1006B-000 |
from US $0.80 |
||
|
9
|
9
82550-80002-000 LATCH ASSY,RR GATE SIDEC; 1987-11-01~1990-01-01 |
82550-80002-000 |
US $65.87 |
||
|
10
|
10
02112-06123-000
Screw, breather cover
C; 1987-11-01~1990-01-01 |
02112-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
02112-0612B-000 SCREWScrew, oil guide plate C; 1987-11-01~1990-01-01 |
02112-0612B-000 |
from US $0.76 |
||
|
10
|
10
02112-0612A-000 SCREWC; 1987-11-01~1990-01-01 |
02112-0612A-000 |
from US $0.76 |
||
|
11
|
11
08321-21063-000 Lock washerC; 1987-11-01~1990-01-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
11
|
11
08321-0106A-000 WASHER,LOCKC; 1987-11-01~1990-01-01 |
08321-0106A-000 |
from US $0.76 |
||
|
12
|
12
08322-21063-000
Washer
C; 1987-11-01~1990-01-01 |
08322-21063-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-0106B-000 WASHERC; 1987-11-01~1990-01-01 |
08322-0106B-000 |
from US $0.76 |
||
|
13
|
13
77810-60021-000 STRIKER,RR GATE LATCHC; 1987-11-01~1990-01-01 |
77810-60021-000 |
US $25.09 |
||
|
14
|
14
09137-08006-000
Screw
C; 1987-11-01~1990-01-01 |
09137-08006-000 |
— | ||
| replacements | |||||
|
14
|
14
09137-08011-000 SCREW(8X18)C; 1987-11-01~1990-01-01 |
09137-08011-000 |
US $1.44 |
||
|
14
|
14
09137-08004-000 SCREW(8X18)C; 1987-11-01~1990-01-01 |
09137-08004-000 |
from US $0.99 |
||
|
15
|
15
78251-68201-000 MALE,BACK DR ST0PC; 1987-11-01~1990-01-01 |
78251-68201-000 |
US $13.44 |
||
|
16
|
16
77891-63100-000 SPACERC; 1987-11-01~1990-01-01 |
77891-63100-000 |
US $5.60 |
||
|
17
|
17
78261-68201-000 MALE,BACK DR ST0PC; 1987-11-01~1990-01-01 |
78261-68201-000 |
US $11.04 |
||
|
18
|
18
02112-06163-000
Screw
C; 1987-11-01~1990-01-01 |
02112-06163-000 |
— | ||
| replacements | |||||
|
18
|
18
02112-0616B-000 SCREWC; 1987-11-01~1990-01-01 |
02112-0616B-000 |
from US $0.96 |
||
|
18
|
18
02112-0616A-000 SCREWC; 1987-11-01~1990-01-01 |
02112-0616A-000 |
from US $0.76 |
||
|
19
|
19
08321-21063-000 Lock washerC; 1987-11-01~1990-01-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
08321-0106A-000 WASHER,LOCKC; 1987-11-01~1990-01-01 |
08321-0106A-000 |
from US $0.76 |
||
|
20
|
20
72810-80015-000
キャリア,スペアタイヤ
C; 1987-11-01~1990-01-01 |
72810-80015-000 |
— | ||
|
21
|
21
72825-80010-000
ピン,スペアタイヤアーム
C; 1987-11-01~1990-01-01 |
72825-80010-000 |
— | ||
|
22
|
22
72831-80012-000
スプリング,スペアタイヤアーム
C; 1987-11-01~1990-01-01 |
72831-80012-000 |
— | ||
|
23
|
23
72836-80011-000
プロテクタ,スペアタイヤアーム
C; 1987-11-01~1990-01-01 |
72836-80011-000 |
— | ||
|
24
|
24
04111-25158-000
Pin 25x15
C; 1987-11-01~1990-01-01 |
04111-25158-000 |
— | ||
| replacement | |||||
|
24
|
24
04111-2515A-000 PINC; 1987-11-01~1990-01-01 |
04111-2515A-000 |
from US $0.77 |
||
|
25
|
25
09250-06002-000 CAP(OD:19.5)C; 1987-11-01~1990-01-01 |
09250-06002-000 |
from US $2.45 |
||
|
26
|
26
83979-80100-000
ナット,スペアタイヤ
C; 1987-11-01~1990-01-01 |
83979-80100-000 |
— | ||
| replacement | |||||
|
26
|
26
83979-81A01-000
ナット,スペアタイヤ
C; 1987-11-01~1990-01-01 |
83979-81A01-000 |
— | ||
|
27
|
27
01517-08163-000
Bolt 8 x 16
C; 1987-11-01~1990-01-01 |
01517-08163-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0816B-000 BoltC; 1987-11-01~1990-01-01 |
01550-0816B-000 |
from US $0.91 |
||
|
27
|
27
01550-0816A-000 BoltBolt, rear C; 1987-11-01~1990-01-01 |
01550-0816A-000 |
from US $0.91 |
||
|
28
|
28
09320-06015-000 CUSHIONC; 1987-11-01~1990-01-01 |
09320-06015-000 |
US $1.67 |
||
|
29
|
29
02112-06163-000
Screw
C; 1987-11-01~1990-01-01 |
02112-06163-000 |
— | ||
| replacements | |||||
|
29
|
29
02112-0616B-000 SCREWC; 1987-11-01~1990-01-01 |
02112-0616B-000 |
from US $0.96 |
||
|
29
|
29
02112-0616A-000 SCREWC; 1987-11-01~1990-01-01 |
02112-0616A-000 |
from US $0.76 |
||
|
30
|
30
76140-83000-5GT
TRIM,REAR DOOR
ブラック; C; 1987-11-01~1990-01-01 |
76140-83000-5GT |
— | ||
|
31
|
31
09409-12301-281
クリップ(ブラック)
C; 1987-11-01~1990-01-01 |
09409-12301-281 |
— | ||
| replacement | |||||
|
31
|
31
09409-12301-5PK CLIP(BLACK)C; 1987-11-01~1990-01-01 |
09409-12301-5PK |
US $1.22 |
||
