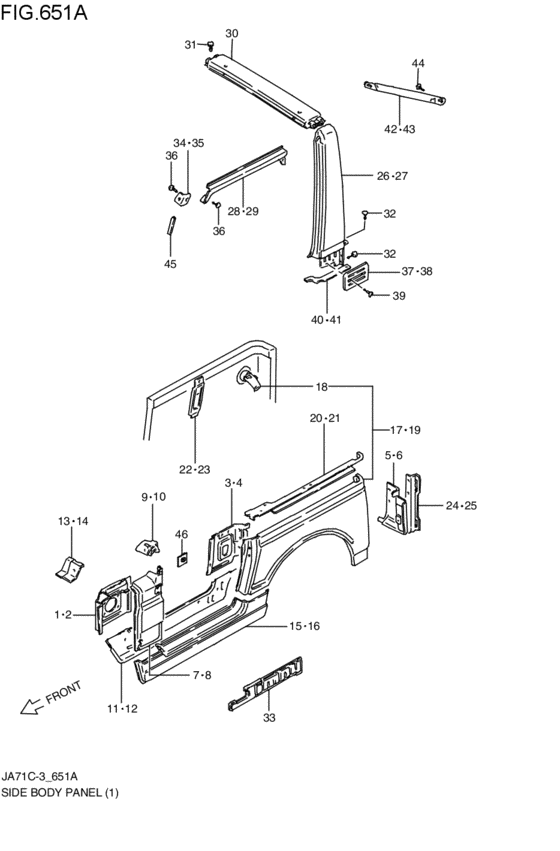

side body panel (ホロ; C; 1987-11-01~1990-01-01) Diagram Suzuki JIMNY
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- NORMAL
- type
- TYPE4
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63110-70A00-000
パネル,フロントピラーインナロア,ライト
C; 1987-11-01~1990-01-01 |
63110-70A00-000 |
— | ||
| replacement | |||||
|
1
|
1
63110-70A01-000 PANEL,FR PILLAR INNER LWR,RC; 1987-11-01~1990-01-01 |
63110-70A01-000 |
US $67.20 |
||
|
2
|
2
63510-70A00-000
パネル,フロントピラーインナロア,レフト
C; 1987-11-01~1990-01-01 |
63510-70A00-000 |
— | ||
| replacement | |||||
|
2
|
2
63510-70A01-000 PANEL,FR PILLAR INNER LWR,LC; 1987-11-01~1990-01-01 |
63510-70A01-000 |
US $67.20 |
||
|
3
|
3
63230-80041-000
PANEL,CENTER PILLAR INNER RH
C; 1987-11-01~1990-01-01 |
63230-80041-000 |
— | ||
|
4
|
4
63630-80041-000
PANEL,CENTER PILLAR INNER LH
C; 1987-11-01~1990-01-01 |
63630-80041-000 |
— | ||
|
5
|
5
63310-80001-000 PANEL,RR PILLAR INNER,RC; 1987-11-01~1990-01-01 |
63310-80001-000 |
from US $15.35 |
||
|
6
|
6
63710-80001-000 PANEL,RR PILLAR INNER,LC; 1987-11-01~1990-01-01 |
63710-80001-000 |
US $15.35 |
||
|
7
|
7
64110-80020-000
パネル,サイドボディフロント,ライト(ミラー:アリ)
ミラ-:アリ; C; 1987-11-01~1990-01-01 |
64110-80020-000 |
— | ||
| replacement | |||||
|
7
|
7
64110-80021-000
パネル,サイドボディフロント,ライト(ミラー:アリ)
ミラ-:アリ; C; 1987-11-01~1990-01-01 |
64110-80021-000 |
— | ||
|
7
|
7
64110-80031-000 PANEL,SIDE BODY FRONT,Rミラ-:ナシ; C; 1987-11-01~1990-01-01 |
64110-80031-000 |
US $417.60 |
||
|
8
|
8
64510-80020-000
パネル,サイドボディフロント,レフト(ミラー:アリ)
ミラ-:アリ; C; 1987-11-01~1990-01-01 |
64510-80020-000 |
— | ||
| replacement | |||||
|
8
|
8
64510-80021-000
パネル,サイドボディフロント,レフト(ミラー:アリ)
ミラ-:アリ; C; 1987-11-01~1990-01-01 |
64510-80021-000 |
— | ||
|
8
|
8
64510-80031-000 PANEL,SIDE BODY FRONT,Lミラ-:ナシ; C; 1987-11-01~1990-01-01 |
64510-80031-000 |
US $361.60 |
||
|
9
|
9
64120-80011-000
PANEL,SIDE BODY FR UPPER RH
C; 1987-11-01~1990-01-01 |
64120-80011-000 |
— | ||
|
10
|
10
64520-80011-000 PANEL,SIDE BODY FR UPPER LHC; 1987-11-01~1990-01-01 |
64520-80011-000 |
from US $4.55 |
||
|
11
|
11
61490-80001-000
パネル,シルサイドインナ,ライト
C; 1987-11-01~1990-01-01 |
61490-80001-000 |
— | ||
| replacement | |||||
|
11
|
11
61490-80003-000 PANEL,SILL SIDE INNER,RC; 1987-11-01~1990-01-01 |
61490-80003-000 |
US $135.20 |
||
|
12
|
12
61590-80001-000
パネル,シルサイドインナ,レフト
C; 1987-11-01~1990-01-01 |
61590-80001-000 |
— | ||
| replacement | |||||
|
12
|
12
61590-80003-000 PANEL,SILL SIDE INNER,LC; 1987-11-01~1990-01-01 |
61590-80003-000 |
US $135.20 |
||
|
13
|
13
64116-80001-000
ガゼット,フロントEBM0030,ライト
C; 1987-11-01~1990-01-01 |
64116-80001-000 |
— | ||
| replacement | |||||
|
13
|
13
64116-50C10-000 EXTENSION,SIDE BODY FR,RC; 1987-11-01~1990-01-01 |
64116-50C10-000 |
US $13.44 |
||
|
14
|
14
64516-80001-000
ガゼット,フロントEBM0030,レフト
C; 1987-11-01~1990-01-01 |
64516-80001-000 |
— | ||
| replacement | |||||
|
14
|
14
64516-50C10-000 EXTENSION,SIDE BODY FR,LC; 1987-11-01~1990-01-01 |
64516-50C10-000 |
US $24 |
||
|
15
|
15
64151-73A20-000
パネル,シルサイドアウタ,ライト
C; 1987-11-01~1990-01-01 |
64151-73A20-000 |
— | ||
|
16
|
16
64551-73A20-000
PANEL,SILL SIDE OUTER,L
C; 1987-11-01~1990-01-01 |
64551-73A20-000 |
— | ||
|
17
|
17
64200-80084-000
パネル,サイドボディリヤ,ライト
C; 1987-11-01~1990-01-01 |
64200-80084-000 |
— | ||
| replacements | |||||
|
17
|
17
64200-82C40-000 PANEL,SIDE BODY REAR,RC; 1987-11-01~1990-01-01 |
64200-82C40-000 |
from US $62.80 |
||
|
17
|
17
89200-82C31-000 BOX,FUEL INLETC; 1987-11-01~1990-01-01 |
89200-82C31-000 |
US $47.10 |
||
|
18
|
18
89210-80031-000
ネック,フューエルタンクフィラ
C; 1987-11-01~1990-01-01 |
89210-80031-000 |
— | ||
| replacement | |||||
|
18
|
18
89200-82C31-000 BOX,FUEL INLETC; 1987-11-01~1990-01-01 |
89200-82C31-000 |
US $47.10 |
||
|
19
|
19
64600-80003-000
パネル,サイドボディリヤ,レフト
C; 1987-11-01~1990-01-01 |
64600-80003-000 |
— | ||
| replacement | |||||
|
19
|
19
64600-82C40-000 PANEL,SIDE BODY REAR,LC; 1987-11-01~1990-01-01 |
64600-82C40-000 |
US $621 |
||
|
20
|
20
64230-80002-000
パネル,サイドアッパ,ライト
C; 1987-11-01~1990-01-01 |
64230-80002-000 |
— | ||
| replacement | |||||
|
20
|
20
64230-80492-000
PANEL,BODY SIDE UPPER,R
C; 1987-11-01~1990-01-01 |
64230-80492-000 |
— | ||
|
21
|
21
64630-80002-000
パネル,サイドアッパ,レフト
C; 1987-11-01~1990-01-01 |
64630-80002-000 |
— | ||
| replacement | |||||
|
21
|
21
64630-80492-000
PANEL,BODY SIDE UPPER,L
C; 1987-11-01~1990-01-01 |
64630-80492-000 |
— | ||
|
22
|
22
64235-80001-000 REINFORCEMENT UPPER,RC; 1987-11-01~1990-01-01 |
64235-80001-000 |
US $11.68 |
||
|
23
|
23
64635-80001-000 REINFORCEMENT,UPPER,LC; 1987-11-01~1990-01-01 |
64635-80001-000 |
US $10.40 |
||
|
24
|
24
64311-80001-000 PANEL,RR PILLAR OUTER,RC; 1987-11-01~1990-01-01 |
64311-80001-000 |
from US $10.98 |
||
|
25
|
25
64710-80001-000 PANEL,RR PILLAR OUTER,LC; 1987-11-01~1990-01-01 |
64710-80001-000 |
from US $10.98 |
||
|
26
|
26
65710-80302-000
パネル,ソフトトップアタッチ,ライト
C; 1987-11-01~1990-01-01 |
65710-80302-000 |
— | ||
| replacement | |||||
|
26
|
26
65710-82CA0-000 PANEL,SOFT TOP ATCH,RC; 1987-11-01~1990-01-01 |
65710-82CA0-000 |
from US $111.47 |
||
|
27
|
27
65750-80302-000
パネル,ソフトトップアタッチ,レフト
C; 1987-11-01~1990-01-01 |
65750-80302-000 |
— | ||
| replacement | |||||
|
27
|
27
65750-82CA0-000 PANEL,SOFT TOP ATCH,LC; 1987-11-01~1990-01-01 |
65750-82CA0-000 |
from US $111.47 |
||
|
28
|
28
65770-83011-000
RAIL ROOF SIDE RH
C; 1987-11-01~1990-01-01 |
65770-83011-000 |
— | ||
| replacement | |||||
|
28
|
28
65770-83012-000
RAIL,ROOF SIDE FR,R
C; 1987-11-01~1990-01-01 |
65770-83012-000 |
— | ||
|
29
|
29
65780-83011-000
レール,ルーフサイド,レフト
C; 1987-11-01~1990-01-01 |
65780-83011-000 |
— | ||
| replacement | |||||
|
29
|
29
65780-83012-000
RAIL,ROOF SIDE FR,L
C; 1987-11-01~1990-01-01 |
65780-83012-000 |
— | ||
|
30
|
30
65730-80306-000 PANEL,SOFT TOP ATCH CTRC; 1987-11-01~1990-01-01 |
65730-80306-000 |
US $97.89 |
||
|
31
|
31
09125-06060-000 SCREW(6X12)C; 1987-11-01~1990-01-01 |
09125-06060-000 |
from US $1.06 |
||
|
32
|
32
09125-08011-000
スクリュ
C; 1987-11-01~1990-01-01 |
09125-08011-000 |
— | ||
| replacement | |||||
|
32
|
32
09125-08015-XC0 SCREW(8X20)C; 1987-11-01~1990-01-01 |
09125-08015-XC0 |
from US $0.97 |
||
|
33
|
33
77817-80002-000
エンブレム,ジムニー
C; 1987-11-01~1990-01-01 |
77817-80002-000 |
— | ||
| replacement | |||||
|
33
|
33
77817-80003-000 EMBLEMC; 1987-11-01~1990-01-01 |
77817-80003-000 |
US $91.20 |
||
|
34
|
34
65775-80010-000 STAY,ROOF SIDE FR RHC; 1987-11-01~1990-01-01 |
65775-80010-000 |
from US $3.47 |
||
|
35
|
35
65785-80010-000 STAY,ROOF SIDE FR LHC; 1987-11-01~1990-01-01 |
65785-80010-000 |
from US $3.47 |
||
|
36
|
36
09125-06073-000 SCREW(6X16)C; 1987-11-01~1990-01-01 |
09125-06073-000 |
from US $1.12 |
||
|
37
|
37
77311-80000-000 GARNISH,EXTENSION,RC; 1987-11-01~1990-01-01 |
77311-80000-000 |
from US $3.83 |
||
|
38
|
38
77312-80000-000 GARNISH,EXTENSION,LC; 1987-11-01~1990-01-01 |
77312-80000-000 |
from US $3.83 |
||
|
39
|
39
09409-05304-000
クリップ
C; 1987-11-01~1990-01-01 |
09409-05304-000 |
— | ||
| replacement | |||||
|
39
|
39
09409-05304-5PK CLIP(BLACK)C; 1987-11-01~1990-01-01 |
09409-05304-5PK |
US $1.92 |
||
|
40
|
40
78621-80001-000 PACKING,EXT CTR PLR,RC; 1987-11-01~1990-01-01 |
78621-80001-000 |
US $11.36 |
||
|
41
|
41
78661-80001-000 PACKING,EXT CTR PLR,LC; 1987-11-01~1990-01-01 |
78661-80001-000 |
US $11.36 |
||
|
42
|
42
78611-80001-000
STRAIN,ROLL BAR SIDE,R
C; 1987-11-01~1990-01-01 |
78611-80001-000 |
— | ||
|
43
|
43
78651-80001-000
STRAIN,ROLL BAR SIDE,L
C; 1987-11-01~1990-01-01 |
78651-80001-000 |
— | ||
|
44
|
44
09125-08011-000
スクリュ
C; 1987-11-01~1990-01-01 |
09125-08011-000 |
— | ||
| replacement | |||||
|
44
|
44
09125-08015-XC0 SCREW(8X20)C; 1987-11-01~1990-01-01 |
09125-08015-XC0 |
from US $0.97 |
||
|
45
|
45
77313-80001-000 SEAL,ROOF SIDE RAILC; 1987-11-01~1990-01-01 |
77313-80001-000 |
US $1.60 |
||
|
46
|
46
61492-80000-000
リンフォースメント,シートベルト,ロア
C; 1987-11-01~1990-01-01 |
61492-80000-000 |
— | ||
| replacement | |||||
|
46
|
46
61492-80010-000 REINFORCEMENT,SEAT BELT LOWERC; 1987-11-01~1990-01-01 |
61492-80010-000 |
US $5.63 |
||
