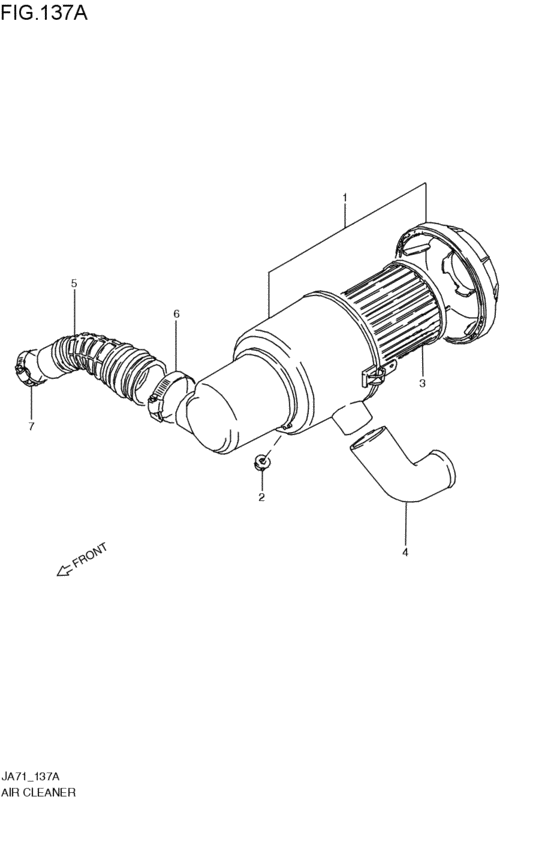

air cleaner (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-80700-000
ケースアッシ,エアクリーナ
1985-11-01~1987-10-01 |
13701-80700-000 |
— | ||
| replacement | |||||
|
1
|
1
13701-80X50-000 CLEANER ASSY,AIR1985-11-01~1987-10-01 |
13701-80X50-000 |
US $151.98 |
||
|
2
|
2
08316-16083-000 NutNut 1985-11-01~1987-10-01 |
08316-16083-000 |
from US $1.94 |
||
| replacement | |||||
|
2
|
2
08316-1008B-000 NUT1985-11-01~1987-10-01 |
08316-1008B-000 |
from US $0.76 |
||
|
3
|
3
13780-79210-000 ELEMENT,AIR CLEANER1985-11-01~1987-10-01 |
13780-79210-000 |
from US $23.36 |
||
|
4
|
4
13871-80700-000
ホース,エアクリーナ,インレット
1985-11-01~1987-10-01 |
13871-80700-000 |
— | ||
| replacement | |||||
|
4
|
4
13871-80701-000
Hose, air cleaner, inlet
1985-11-01~1987-10-01 |
13871-80701-000 |
— | ||
|
5
|
5
13881-80700-000
ホース,エアクリーナ,アウトレット
1985-11-01~1987-10-01 |
13881-80700-000 |
— | ||
|
6
|
6
09402-70501-000 Clamp1985-11-01~1987-10-01 |
09402-70501-000 |
from US $8.71 |
||
| replacements | |||||
|
6
|
6
09402-69511-000 CLAMPClamp (thb) 1985-11-01~1987-10-01 |
09402-69511-000 |
from US $8.71 |
||
|
6
|
6
09402-70503-000 CLAMPClamp,tank 1985-11-01~1987-10-01 |
09402-70503-000 |
from US $8.71 |
||
|
7
|
7
09402-43501-000
Clamp, tank
1985-11-01~1987-10-01 |
09402-43501-000 |
— | ||
| replacement | |||||
|
7
|
7
09402-50511-000 CLAMP1985-11-01~1987-10-01 |
09402-50511-000 |
from US $7.52 |
||
