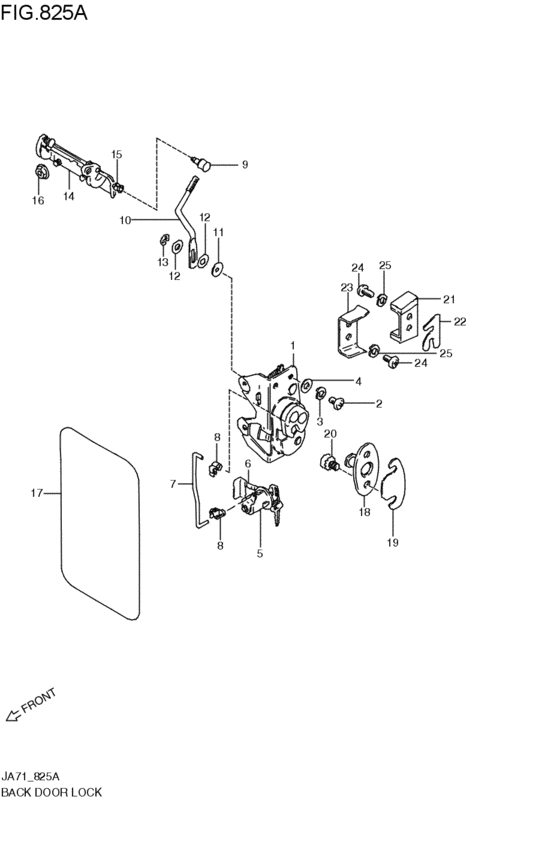

back door lock (V; 1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82530-80101-000 LOCK ASSY,BACK DRV; 1985-11-01~1987-10-01 |
82530-80101-000 |
US $47.99 |
||
|
2
|
2
02112-06123-000
Screw, breather cover
V; 1985-11-01~1987-10-01 |
02112-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02112-0612B-000 SCREWScrew, oil guide plate V; 1985-11-01~1987-10-01 |
02112-0612B-000 |
from US $0.76 |
||
|
2
|
2
02112-0612A-000 SCREWV; 1985-11-01~1987-10-01 |
02112-0612A-000 |
from US $0.76 |
||
|
3
|
3
08321-21063-000 Lock washerV; 1985-11-01~1987-10-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
3
|
3
08321-0106A-000 WASHER,LOCKV; 1985-11-01~1987-10-01 |
08321-0106A-000 |
from US $0.76 |
||
|
4
|
4
08322-21063-000
Washer
V; 1985-11-01~1987-10-01 |
08322-21063-000 |
— | ||
| replacement | |||||
|
4
|
4
08322-0106B-000 WASHERV; 1985-11-01~1987-10-01 |
08322-0106B-000 |
from US $0.76 |
||
|
5
|
5
77400-70812-000 CYLINDER,FR DR LATCH LOCK,RV; 1985-11-01~1987-10-01 |
77400-70812-000 |
from US $31.75 |
||
|
6
|
6
77461-78000-000 CLIPCHKK; V; 1985-11-01~1987-10-01 |
77461-78000-000 |
US $6.88 |
||
|
7
|
7
82581-80100-000
ROD,KEY CYLINDER CONTROL
V; 1985-11-01~1987-10-01 |
82581-80100-000 |
— | ||
|
8
|
8
09209-05016-000 PINV; 1985-11-01~1987-10-01 |
09209-05016-000 |
from US $1.15 |
||
|
9
|
9
77716-79000-000 JOINT,RODV; 1985-11-01~1987-10-01 |
77716-79000-000 |
US $3.52 |
||
|
10
|
10
83231-80100-000 ROD,LOCK OUTSIDE HANDLEV; 1985-11-01~1987-10-01 |
83231-80100-000 |
from US $2.61 |
||
|
11
|
11
09161-04008-000 WASHER(4X12X2)V; 1985-11-01~1987-10-01 |
09161-04008-000 |
from US $0.36 |
||
|
12
|
12
09161-06008-000 WASHER(6.5X13X1)V; 1985-11-01~1987-10-01 |
09161-06008-000 |
from US $1.10 |
||
|
13
|
13
08332-11058-000
E ring
V; 1985-11-01~1987-10-01 |
08332-11058-000 |
— | ||
| replacement | |||||
|
13
|
13
08332-1105A-000 E RINGV; 1985-11-01~1987-10-01 |
08332-1105A-000 |
from US $0.91 |
||
|
14
|
14
82810-83000-000 HANDLE,DOOR OUTSIDE,RV; 1985-11-01~1987-10-01 |
82810-83000-000 |
from US $36.25 |
||
|
15
|
15
82891-80100-000 SNAP,JOINTV; 1985-11-01~1987-10-01 |
82891-80100-000 |
from US $0.70 |
||
|
16
|
16
08316-26066-000
Nut 6mm
V; 1985-11-01~1987-10-01 |
08316-26066-000 |
— | ||
| replacements | |||||
|
16
|
16
08316-2006A-000 NUTV; 1985-11-01~1987-10-01 |
08316-2006A-000 |
from US $0.76 |
||
|
16
|
16
08316-1006B-000 NUTV; 1985-11-01~1987-10-01 |
08316-1006B-000 |
from US $0.76 |
||
|
17
|
17
83912-80120-000
フィルム,ウォータプルーフ
V; 1985-11-01~1987-10-01 |
83912-80120-000 |
— | ||
| replacement | |||||
|
17
|
17
83911-60X52-000 COVER,DR SEALINGV; 1985-11-01~1987-10-01 |
83911-60X52-000 |
US $6.06 |
||
|
18
|
18
82610-85000-000
ストライカ,フロントドアラッチ
V; 1985-11-01~1987-10-01 |
82610-85000-000 |
— | ||
| replacement | |||||
|
18
|
18
82610-85002-000 STRIKER,FR DOOR LATCHV; 1985-11-01~1987-10-01 |
82610-85002-000 |
US $39.20 |
||
|
19
|
19
78199-79000-000 SPACERV; 1985-11-01~1987-10-01 |
78199-79000-000 |
from US $1.60 |
||
|
20
|
20
09137-08006-000
Screw
V; 1985-11-01~1987-10-01 |
09137-08006-000 |
— | ||
| replacements | |||||
|
20
|
20
09137-08011-000 SCREW(8X18)V; 1985-11-01~1987-10-01 |
09137-08011-000 |
from US $1.40 |
||
|
20
|
20
09137-08004-000 SCREW(8X18)V; 1985-11-01~1987-10-01 |
09137-08004-000 |
from US $0.99 |
||
|
21
|
21
78251-68201-000 MALE,BACK DR ST0PV; 1985-11-01~1987-10-01 |
78251-68201-000 |
from US $6.55 |
||
|
22
|
22
77891-63100-000 SPACERV; 1985-11-01~1987-10-01 |
77891-63100-000 |
US $5.60 |
||
|
23
|
23
78261-68201-000 MALE,BACK DR ST0PV; 1985-11-01~1987-10-01 |
78261-68201-000 |
from US $4.23 |
||
|
24
|
24
02112-06163-000
Screw
V; 1985-11-01~1987-10-01 |
02112-06163-000 |
— | ||
| replacements | |||||
|
24
|
24
02112-0616B-000 SCREWV; 1985-11-01~1987-10-01 |
02112-0616B-000 |
from US $0.96 |
||
|
24
|
24
02112-0616A-000 SCREWV; 1985-11-01~1987-10-01 |
02112-0616A-000 |
from US $0.76 |
||
|
25
|
25
08321-21063-000 Lock washerV; 1985-11-01~1987-10-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
25
|
25
08321-0106A-000 WASHER,LOCKV; 1985-11-01~1987-10-01 |
08321-0106A-000 |
from US $0.76 |
||
