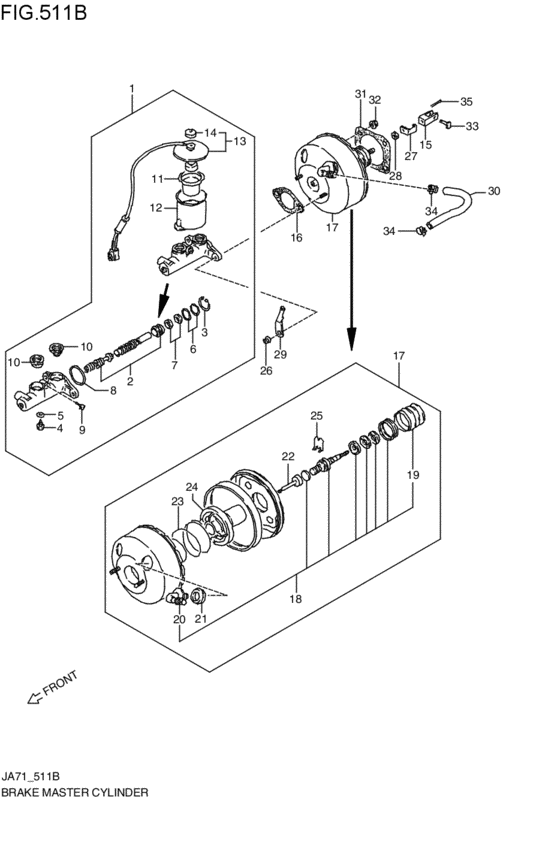

brakes master cylinder (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-83620-000
シリンダアッシ,ブレーキマスタ
1985-11-01~1987-10-01 |
51100-83620-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-83621-000
New Genuine Part
1985-11-01~1987-10-01 |
51100-83621-000 |
— | ||
|
2
|
2
51100-83810-000
Piston set,brake master
1985-11-01~1987-10-01 |
51100-83810-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-83811-000 PISTON SET,BRAKE MASTER1985-11-01~1987-10-01 |
51100-83811-000 |
US $61.60 |
||
|
3
|
3
51162-82020-000
サークリップ,ピストンストッパ
1985-11-01~1987-10-01 |
51162-82020-000 |
— | ||
| replacement | |||||
|
3
|
3
08331-41329-000 CIRCLIP1985-11-01~1987-10-01 |
08331-41329-000 |
from US $1.52 |
||
|
4
|
4
51165-82020-000
BOLT
1985-11-01~1987-10-01 |
51165-82020-000 |
— | ||
|
5
|
5
51166-67020-000
RING STOPPER BOLT SEAL
1985-11-01~1987-10-01 |
51166-67020-000 |
— | ||
|
6
|
6
51183-82020-000
Oリング,ピストンストッパ
1985-11-01~1987-10-01 |
51183-82020-000 |
— | ||
|
7
|
7
51184-82020-000 CUP,CYLINDER1985-11-01~1987-10-01 |
51184-82020-000 |
from US $2.45 |
||
|
8
|
8
51185-82020-000
Oリング,マスタシリンダ
1985-11-01~1987-10-01 |
51185-82020-000 |
— | ||
|
9
|
9
51193-82020-000
スクリュ,コネクタ
1985-11-01~1987-10-01 |
51193-82020-000 |
— | ||
|
10
|
10
51197-82020-000 GROMMET,RESERVOIR CONNECTOR1985-11-01~1987-10-01 |
51197-82020-000 |
from US $2.43 |
||
|
11
|
11
51234-83020-000
ストレーナ,シリンダリザーバ
1985-11-01~1987-10-01 |
51234-83020-000 |
— | ||
|
12
|
12
51211-83020-000
リザーバ,マスタシリンダ
1985-11-01~1987-10-01 |
51211-83020-000 |
— | ||
| replacement | |||||
|
12
|
12
51200-83020-000
RESERVOIR ASSY,MASTER CYLINDER
1985-11-01~1987-10-01 |
51200-83020-000 |
— | ||
|
13
|
13
51220-83020-000
Cap,cylinder reservoir
1985-11-01~1987-10-01 |
51220-83020-000 |
— | ||
|
14
|
14
51235-82120-000
CAP FILLER CAP BREATHER
1985-11-01~1987-10-01 |
51235-82120-000 |
— | ||
|
15
|
15
51182-82020-000
クレビス,プッシュロッド
1985-11-01~1987-10-01 |
51182-82020-000 |
— | ||
| replacement | |||||
|
15
|
15
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD1985-11-01~1987-10-01 |
51182-77E00-000 |
from US $6.37 |
||
|
16
|
16
51199-82020-000 GASKET,MASTER CYLINDER1985-11-01~1987-10-01 |
51199-82020-000 |
US $0.86 |
||
|
17
|
17
51300-83620-000
ブースタアッシ,ブレーキマスタ
1985-11-01~1987-10-01 |
51300-83620-000 |
— | ||
|
18
|
18
51300-83830-000
リペアキット,ブレーキマスタ
1985-11-01~1987-10-01 |
51300-83830-000 |
— | ||
|
19
|
19
51330-82020-000
BOOT BOOSTER BODY
1985-11-01~1987-10-01 |
51330-82020-000 |
— | ||
|
20
|
20
51370-82221-000
バルブアッシ,バキュームチェック
1985-11-01~1987-10-01 |
51370-82221-000 |
— | ||
|
21
|
21
51371-82020-000 GROMMET,CHECK VALVE1985-11-01~1987-10-01 |
51371-82020-000 |
US $2.08 |
||
|
22
|
22
51350-83020-000
ロッドアッシ,ブースタピストン
1985-11-01~1987-10-01 |
51350-83020-000 |
— | ||
|
23
|
23
51360-83121-000
スプリング,ブースタピストン
1985-11-01~1987-10-01 |
51360-83121-000 |
— | ||
|
24
|
24
51363-83170-000
ピストン,ブースタ
1985-11-01~1987-10-01 |
51363-83170-000 |
— | ||
|
25
|
25
51364-83021-000
キー,バルブストッパ
1985-11-01~1987-10-01 |
51364-83021-000 |
— | ||
|
26
|
26
51313-82020-000
ナット,ブースタ
1985-11-01~1987-10-01 |
51313-82020-000 |
— | ||
| replacement | |||||
|
26
|
26
09159-08075-000 NUT1985-11-01~1987-10-01 |
09159-08075-000 |
from US $0.91 |
||
|
27
|
27
51348-82020-000
ブラケット,プッシュロッド
1985-11-01~1987-10-01 |
51348-82020-000 |
— | ||
|
28
|
28
51349-82020-000
ナット,シリンダプッシュロッド
1985-11-01~1987-10-01 |
51349-82020-000 |
— | ||
| replacements | |||||
|
28
|
28
09140-10019-000 NUT1985-11-01~1987-10-01 |
09140-10019-000 |
US $9.20 |
||
|
28
|
28
08310-30107-000
New Genuine Part
1985-11-01~1987-10-01 |
08310-30107-000 |
— | ||
|
29
|
29
51372-83620-000
ブラケット,チェックバルブ
1985-11-01~1987-10-01 |
51372-83620-000 |
— | ||
|
30
|
30
51010-82C10-000
ホース,ブレーキバキューム
1985-11-01~1987-10-01 |
51010-82C10-000 |
— | ||
|
31
|
31
51132-82002-000
パッキング,ブレーキマスタシリンダ
1985-11-01~1987-10-01 |
51132-82002-000 |
— | ||
| replacement | |||||
|
31
|
31
51132-82003-000 PACKING,BRAKE MASTER CYLINDER1985-11-01~1987-10-01 |
51132-82003-000 |
from US $1.60 |
||
|
32
|
32
09159-08052-000
NUT 8MM
1985-11-01~1987-10-01 |
09159-08052-000 |
— | ||
| replacement | |||||
|
32
|
32
09159-08135-000 NUT1985-11-01~1987-10-01 |
09159-08135-000 |
from US $0.74 |
||
|
33
|
33
09200-10010-000
ピン
1985-11-01~1987-10-01 |
09200-10010-000 |
— | ||
| replacement | |||||
|
33
|
33
09200-10021-000 PIN1985-11-01~1987-10-01 |
09200-10021-000 |
from US $1.24 |
||
|
34
|
34
09400-19302-000
Сlamp
1985-11-01~1987-10-01 |
09400-19302-000 |
— | ||
| replacement | |||||
|
34
|
34
09401-15404-000 CLIP1985-11-01~1987-10-01 |
09401-15404-000 |
from US $1.33 |
||
|
35
|
35
04111-25206-000
コッタピン
1985-11-01~1987-10-01 |
04111-25206-000 |
— | ||
| replacement | |||||
|
35
|
35
04111-2520A-000 PIN1985-11-01~1987-10-01 |
04111-2520A-000 |
from US $0.80 |
||
