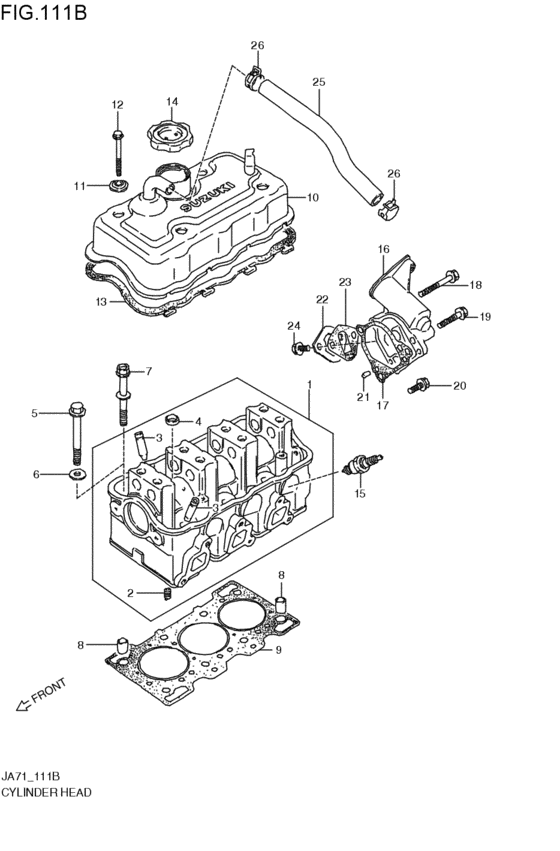

Cylinder head (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-84001-000
ヘッド,シリンダ
1985-11-01~1987-10-01 |
11110-84001-000 |
— | ||
|
2
|
2
11112-73001-000
PLUG OIL VENTURI
1985-11-01~1987-10-01 |
11112-73001-000 |
— | ||
| replacement | |||||
|
2
|
2
11112-73010-000 PLUG,OIL VENTURI1985-11-01~1987-10-01 |
11112-73010-000 |
from US $1.60 |
||
|
3
|
3
11115-82000-001 GUIDE,VALVEGuide, valve 1985-11-01~1987-10-01 |
11115-82000-001 |
from US $12.80 |
||
|
4
|
4
09241-20002-000
WATER PLUG
1985-11-01~1987-10-01 |
09241-20002-000 |
— | ||
| replacement | |||||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil 1985-11-01~1987-10-01 |
09241-20006-000 |
from US $1.60 |
||
|
5
|
5
09103-10018-000
ボルト,10X87
1985-11-01~1987-01-01 |
09103-10018-000 |
— | ||
| replacement | |||||
|
5
|
5
09116-10116-000 BOLT(10X87)1985-11-01~1987-01-01 |
09116-10116-000 |
from US $2.41 |
||
|
6
|
6
09160-10039-000 WASHER(10.5X22X2.3)1985-11-01~1987-01-01 |
09160-10039-000 |
from US $0.43 |
||
|
7
|
7
09116-10116-000 BOLT(10X87)1987-01-01~1987-10-01 |
09116-10116-000 |
from US $2.41 |
||
|
8
|
8
09206-13001-000
Pin
1985-11-01~1987-10-01 |
09206-13001-000 |
— | ||
| replacement | |||||
|
8
|
8
04211-13189-000 PIN1985-11-01~1987-10-01 |
04211-13189-000 |
from US $1.22 |
||
|
9
|
9
11141-85551-000
ガスケット,シリンダヘッド
1985-11-01~1987-10-01 |
11141-85551-000 |
— | ||
| replacement | |||||
|
9
|
9
11141-54A51-000
GASKET,CYL HEAD
1985-11-01~1987-10-01 |
11141-54A51-000 |
— | ||
|
10
|
10
11170-80701-000
カバー,シリンダヘッド
1985-11-01~1987-10-01 |
11170-80701-000 |
— | ||
| replacement | |||||
|
10
|
10
16920-60A02-000 Cap,oil filler1985-11-01~1987-10-01 |
16920-60A02-000 |
from US $17.35 |
||
|
11
|
11
11180-78101-000
GROMET
1985-11-01~1987-10-01 |
11180-78101-000 |
— | ||
| replacement | |||||
|
11
|
11
11180-82010-000 WASHER,CYL HEAD COVER SEAL1985-11-01~1987-10-01 |
11180-82010-000 |
from US $4.07 |
||
|
12
|
12
01517-06603-000
Bolt
1985-11-01~1987-10-01 |
01517-06603-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0660A-000 Bolt1985-11-01~1987-10-01 |
01550-0660A-000 |
from US $1.12 |
||
|
13
|
13
11189-78101-000 Gasket, Cylinder Head Cover1985-11-01~1987-10-01 |
11189-78101-000 |
US $28.80 |
||
| replacement | |||||
|
13
|
13
11189-62C00-000 GASKET,CYL HEAD COVER1985-11-01~1987-10-01 |
11189-62C00-000 |
US $17.61 |
||
|
14
|
14
16920-56A00-000 CAP OIL FILLER1985-11-01~1987-10-01 |
16920-56A00-000 |
US $8.08 |
||
| replacement | |||||
|
14
|
14
16920-50A01-000 Cap,oil filler1985-11-01~1987-10-01 |
16920-50A01-000 |
from US $8.08 |
||
|
15
|
15
09482-00123-000
スパークプラグ,W16EXーU
DENSO; 1985-11-01~1987-10-01 |
09482-00123-000 |
— | ||
| replacement | |||||
|
15
|
15
09482-00131-000 PLUG,SPARK(BP5ES)DENSO; 1985-11-01~1987-10-01 |
09482-00131-000 |
from US $4.30 |
||
|
15
|
15
09482-00131-000 PLUG,SPARK(BP5ES)NGK; 1985-11-01~1987-10-01 |
09482-00131-000 |
from US $4.30 |
||
|
15
|
15
09482-00363-000
スパークプラグ,J16CーU
DENSO,カンレイチシヨウ; 1985-11-01~1987-10-01 |
09482-00363-000 |
— | ||
|
15
|
15
09482-00395-000
スパークプラグ,ZG5E
NGK,カンレイチシヨウ; 1985-11-01~1987-10-01 |
09482-00395-000 |
— | ||
|
16
|
16
11161-78102-000 CASE,DISTRIBUTOR1985-11-01~1987-10-01 |
11161-78102-000 |
US $408.32 |
||
|
17
|
17
11169-73002-000
ガスケット,ディストリビュータケース
1985-11-01~1987-10-01 |
11169-73002-000 |
— | ||
| replacement | |||||
|
17
|
17
11169-70D01-000 GASKET,DISTRIBUTOR CASE1985-11-01~1987-10-01 |
11169-70D01-000 |
US $2.56 |
||
|
18
|
18
09103-08154-000
ボルト,8X45
1985-11-01~1987-10-01 |
09103-08154-000 |
— | ||
| replacement | |||||
|
18
|
18
09103-08366-000 BOLT(8X45)1985-11-01~1987-10-01 |
09103-08366-000 |
US $1.68 |
||
|
19
|
19
09103-08155-000 BOLT(8X60)1985-11-01~1987-10-01 |
09103-08155-000 |
from US $1.18 |
||
|
20
|
20
01517-08253-000
ボルト
1985-11-01~1987-10-01 |
01517-08253-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0825A-000 Bolt1985-11-01~1987-10-01 |
01550-0825A-000 |
from US $0.47 |
||
|
20
|
20
01550-0825B-000 Bolt1985-11-01~1987-10-01 |
01550-0825B-000 |
from US $1.06 |
||
|
21
|
21
04221-06129-000 PIN1985-11-01~1987-10-01 |
04221-06129-000 |
from US $0.96 |
||
|
22
|
22
15317-77901-000
Plate,fuel pump
1985-11-01~1987-10-01 |
15317-77901-000 |
— | ||
| replacement | |||||
|
22
|
22
15317-7790V-000 PLATE,FUEL PUMP1985-11-01~1987-10-01 |
15317-7790V-000 |
US $5.81 |
||
|
23
|
23
15319-73001-000
ガスケット,フューエルポンプ
1985-11-01~1987-10-01 |
15319-73001-000 |
— | ||
| replacement | |||||
|
23
|
23
15319-63B00-000 GASKET,FUEL PUMP1985-11-01~1987-10-01 |
15319-63B00-000 |
from US $1.62 |
||
|
24
|
24
01517-08163-000
Bolt 8 x 16
1985-11-01~1987-10-01 |
01517-08163-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0816B-000 Bolt1985-11-01~1987-10-01 |
01550-0816B-000 |
from US $0.91 |
||
|
24
|
24
01550-0816A-000 BoltBolt, rear 1985-11-01~1987-10-01 |
01550-0816A-000 |
from US $0.91 |
||
|
25
|
25
11191-80700-000
ホース,ブリーザ
1985-11-01~1987-10-01 |
11191-80700-000 |
— | ||
| replacements | |||||
|
25
|
25
09355-13207-00B HOSE(13X20X2000)1985-11-01~1987-10-01 |
09355-13207-00B |
from US $45.60 |
||
|
25
|
25
09355-13207-600 HOSE(13X20X600)Hose, breather 1985-11-01~1987-10-01 |
09355-13207-600 |
from US $12.46 |
||
|
25
|
25
09354-13203-600
ホース,13X20X600
1985-11-01~1987-10-01 |
09354-13203-600 |
— | ||
|
26
|
26
09401-18402-000 CLAMP1985-11-01~1987-10-01 |
09401-18402-000 |
from US $1.10 |
||
| replacement | |||||
|
26
|
26
09401-18404-000 CLIP1985-11-01~1987-10-01 |
09401-18404-000 |
from US $1.26 |
||
