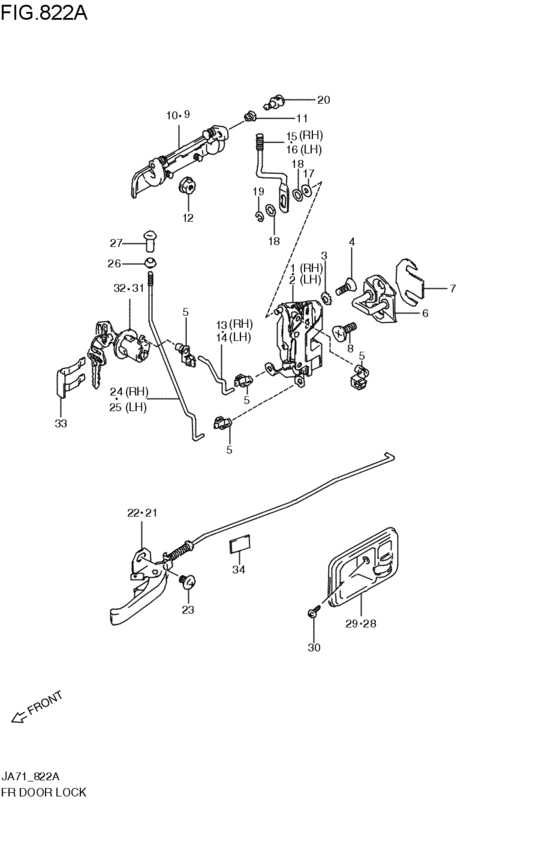

front door lock (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-80102-000
ロックアッシ,ライト
R; 1985-11-01~1987-10-01 |
82201-80102-000 |
— | ||
| replacement | |||||
|
1
|
1
82201-70A01-000 LATCH ASSY,FR DR,RR; 1985-11-01~1987-10-01 |
82201-70A01-000 |
US $140 |
||
|
2
|
2
82202-80102-000
LOCK ASSY FRONT DOOR
L; 1985-11-01~1987-10-01 |
82202-80102-000 |
— | ||
| replacement | |||||
|
2
|
2
82202-70A01-000 LATCH ASSY,FR DR,LL; 1985-11-01~1987-10-01 |
82202-70A01-000 |
from US $41.11 |
||
|
3
|
3
08323-31068-000
Lock washer
1985-11-01~1987-10-01 |
08323-31068-000 |
— | ||
| replacement | |||||
|
3
|
3
08323-3106A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08323-3106A-000 |
US $0.88 |
||
|
4
|
4
02122-06166-000
Screw
1985-11-01~1987-10-01 |
02122-06166-000 |
— | ||
| replacements | |||||
|
4
|
4
02122-0616B-000 SCREWScrew, intake pipe 1985-11-01~1987-10-01 |
02122-0616B-000 |
from US $0.80 |
||
|
4
|
4
02122-0616A-000 SCREW1985-11-01~1987-10-01 |
02122-0616A-000 |
from US $0.76 |
||
|
5
|
5
09209-05016-000 PIN1985-11-01~1987-10-01 |
09209-05016-000 |
from US $1.15 |
||
|
6
|
6
82610-85000-000
ストライカ,フロントドアラッチ
1985-11-01~1987-10-01 |
82610-85000-000 |
— | ||
| replacement | |||||
|
6
|
6
82610-85002-000 STRIKER,FR DOOR LATCH1985-11-01~1987-10-01 |
82610-85002-000 |
US $39.20 |
||
|
7
|
7
82681-80100-000 SPACER,STRIKER1985-11-01~1987-10-01 |
82681-80100-000 |
US $1.60 |
||
|
8
|
8
09137-08004-000 SCREW(8X18)1985-11-01~1987-10-01 |
09137-08004-000 |
from US $0.99 |
||
| replacement | |||||
|
8
|
8
09137-08011-000 SCREW(8X18)1985-11-01~1987-10-01 |
09137-08011-000 |
from US $1.40 |
||
|
9
|
9
82810-83000-000 HANDLE,DOOR OUTSIDE,RR; 1985-11-01~1987-10-01 |
82810-83000-000 |
from US $36.25 |
||
|
10
|
10
82820-83000-000 HANDLE,DOOR OUTSIDE,LL; 1985-11-01~1987-10-01 |
82820-83000-000 |
from US $36.25 |
||
|
11
|
11
82891-80100-000 SNAP,JOINTV; 1985-11-01~1987-10-01 |
82891-80100-000 |
from US $0.70 |
||
|
12
|
12
08316-26066-000
Nut 6mm
1985-11-01~1987-10-01 |
08316-26066-000 |
— | ||
| replacements | |||||
|
12
|
12
08316-2006A-000 NUT1985-11-01~1987-10-01 |
08316-2006A-000 |
from US $0.76 |
||
|
12
|
12
08316-1006B-000 NUT1985-11-01~1987-10-01 |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
82291-80100-000 ROD,KEY CYLINDER CONTROL,RR; 1985-11-01~1987-10-01 |
82291-80100-000 |
US $2.43 |
||
|
14
|
14
82292-80100-000 ROD,KEY CYLINDER CONTROL,LL; 1985-11-01~1987-10-01 |
82292-80100-000 |
from US $2.34 |
||
|
15
|
15
83211-80100-000 ROD,DOOR LOCK OUTSIDE HNDLE,RR; 1985-11-01~1987-10-01 |
83211-80100-000 |
from US $2.66 |
||
|
16
|
16
83212-80100-000 ROD,DOOR LOCK OUTSIDE HNDLE,LL; 1985-11-01~1987-10-01 |
83212-80100-000 |
from US $2.66 |
||
|
17
|
17
09161-04008-000 WASHER(4X12X2)1985-11-01~1987-10-01 |
09161-04008-000 |
from US $0.36 |
||
|
18
|
18
09161-06008-000 WASHER(6.5X13X1)1985-11-01~1987-10-01 |
09161-06008-000 |
from US $1.10 |
||
|
19
|
19
08332-11058-000
E ring
1985-11-01~1987-10-01 |
08332-11058-000 |
— | ||
| replacement | |||||
|
19
|
19
08332-1105A-000 E RING1985-11-01~1987-10-01 |
08332-1105A-000 |
from US $0.91 |
||
|
20
|
20
77716-79000-000 JOINT,ROD1985-11-01~1987-10-01 |
77716-79000-000 |
US $3.52 |
||
|
21
|
21
83110-80101-5ES
HANDLE DOOR INSIDE RH
R ブラック; 1985-11-01~1987-10-01 |
83110-80101-5ES |
— | ||
| replacement | |||||
|
21
|
21
83110-80102-5ES HANDLE,DOOR INSIDE,RR ブラック; 1985-11-01~1987-10-01 |
83110-80102-5ES |
from US $15.17 |
||
|
22
|
22
83130-80101-5ES
HANDLE FRONT DOOR LH
L ブラック; 1985-11-01~1987-10-01 |
83130-80101-5ES |
— | ||
| replacement | |||||
|
22
|
22
83130-80102-5ES HANDLE,DOOR INSIDE,LL ブラック; 1985-11-01~1987-10-01 |
83130-80102-5ES |
from US $15.17 |
||
|
23
|
23
02142-06108-000
6 x 10 screw
1985-11-01~1987-10-01 |
02142-06108-000 |
— | ||
| replacement | |||||
|
23
|
23
02142-06107-000 SCREW1985-11-01~1987-10-01 |
02142-06107-000 |
from US $0.80 |
||
|
24
|
24
83241-80100-000 ROD,DOOR SAFETY LOCK,RR; 1985-11-01~1987-10-01 |
83241-80100-000 |
from US $2.70 |
||
|
25
|
25
83242-80100-000 ROD,DOOR SAFETY LOCK,LL; 1985-11-01~1987-10-01 |
83242-80100-000 |
from US $1.19 |
||
|
26
|
26
78242-61000-000 CAP,LOCK KNOB1985-11-01~1987-10-01 |
78242-61000-000 |
from US $1.52 |
||
|
27
|
27
78241-60002-000 KNOB1985-11-01~1987-10-01 |
78241-60002-000 |
from US $1.52 |
||
|
28
|
28
78471-79000-5ES
ベゼル,インサイドハンドル,ライト(ブラック)
R ブラック; 1985-11-01~1987-10-01 |
78471-79000-5ES |
— | ||
| replacement | |||||
|
28
|
28
78471-79001-5ES BEZEL,DR INSIDE HDL,RR ブラック; 1985-11-01~1987-10-01 |
78471-79001-5ES |
from US $4.46 |
||
|
29
|
29
78481-79000-5ES
ベゼル,インサイドハンドル,レフト(ブラック)
L ブラック; 1985-11-01~1987-10-01 |
78481-79000-5ES |
— | ||
| replacement | |||||
|
29
|
29
78481-79001-5ES BEZEL,DR INSIDE HDL,LL ブラック; 1985-11-01~1987-10-01 |
78481-79001-5ES |
from US $3.71 |
||
|
30
|
30
03141-04085-000
New Genuine Part
1985-11-01~1987-10-01 |
03141-04085-000 |
— | ||
| replacement | |||||
|
30
|
30
03141-0408A-000 SCREW1985-11-01~1987-10-01 |
03141-0408A-000 |
from US $0.79 |
||
|
31
|
31
77400-70812-000 CYLINDER,FR DR LATCH LOCK,RR; 1985-11-01~1987-10-01 |
77400-70812-000 |
from US $31.75 |
||
|
32
|
32
77400-70832-000 CYLINDER,FR DR LATCH LOCK,LL; 1985-11-01~1987-10-01 |
77400-70832-000 |
from US $36.14 |
||
|
33
|
33
77461-78000-000 CLIPCHKK; 1985-11-01~1987-10-01 |
77461-78000-000 |
US $6.88 |
||
|
34
|
34
77591-75000-000 PAD1985-11-01~1987-10-01 |
77591-75000-000 |
from US $0.56 |
||
