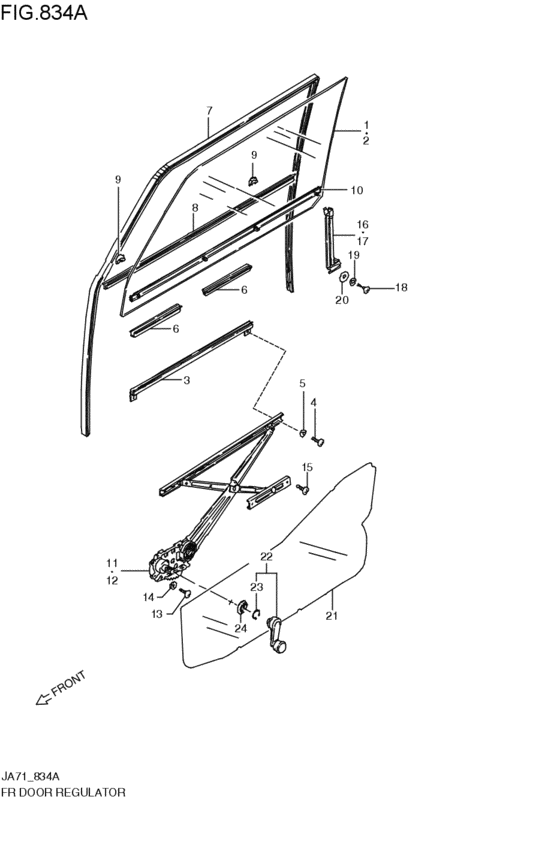

front door regulator (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-80112-000
DOOR GLASS RH
R ASAHI,ホワイト; 1985-11-01~1987-10-01 |
84531-80112-000 |
— | ||
| replacement | |||||
|
1
|
1
84531-80150-000 GLASS,FR DR WDO,RR ASAHI,ホワイト; 1985-11-01~1987-10-01 |
84531-80150-000 |
US $119.16 |
||
|
2
|
2
84536-80112-000
ガラスフロントドアレフト(ホワイト)
L ASAHI,ホワイト; 1985-11-01~1987-10-01 |
84536-80112-000 |
— | ||
| replacement | |||||
|
2
|
2
84536-80150-000 GLASS,FR DR WDO,LL ASAHI,ホワイト; 1985-11-01~1987-10-01 |
84536-80150-000 |
US $86.72 |
||
|
3
|
3
78710-78000-000 CHANNEL,DR GLASS BOTTOM1985-11-01~1987-10-01 |
78710-78000-000 |
from US $11.52 |
||
|
4
|
4
02112-06086-000
New Genuine Part
1985-11-01~1987-10-01 |
02112-06086-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0608A-000 SCREW1985-11-01~1987-10-01 |
02112-0608A-000 |
from US $0.91 |
||
|
5
|
5
08321-21066-000
Lock washer
1985-11-01~1987-10-01 |
08321-21066-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-0106A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0106A-000 |
from US $0.76 |
||
|
6
|
6
78811-78400-000
RUBBER
1985-11-01~1987-10-01 |
78811-78400-000 |
— | ||
| replacement | |||||
|
6
|
6
78812-78400-000 RUBBER,CHANNEL1985-11-01~1987-10-01 |
78812-78400-000 |
from US $2.12 |
||
|
7
|
7
83661-83000-000
ラン,ドアガラス
1985-11-01~1987-10-01 |
83661-83000-000 |
— | ||
| replacement | |||||
|
7
|
7
83661-82CA0-000 RUN,FR DOOR GLASS1985-11-01~1987-10-01 |
83661-82CA0-000 |
from US $46.13 |
||
|
8
|
8
83811-80100-000
SCRAPE DOOR OUT SIDE
1985-11-01~1987-10-01 |
83811-80100-000 |
— | ||
| replacement | |||||
|
8
|
8
83810-82CA0-000 WEATHERSTRIP,FR DR OUT1985-11-01~1987-10-01 |
83810-82CA0-000 |
from US $34.67 |
||
|
9
|
9
78991-78001-000 CLIP,DR OUT WEATHERSTRIP1985-11-01~1987-10-01 |
78991-78001-000 |
from US $1.04 |
||
|
10
|
10
83850-80100-000 WEATHERSTRIP,FR DR INR1985-11-01~1987-10-01 |
83850-80100-000 |
from US $28.12 |
||
|
11
|
11
78501-78001-000 REGULATOR,DOOR WINDOW,RR; 1985-11-01~1987-10-01 |
78501-78001-000 |
from US $77.22 |
||
|
12
|
12
78502-78001-000 REGULATOR ASSY,DOOR WINDOW,LL; 1985-11-01~1987-10-01 |
78502-78001-000 |
from US $77.22 |
||
|
13
|
13
02112-06086-000
New Genuine Part
1985-11-01~1987-10-01 |
02112-06086-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-0608A-000 SCREW1985-11-01~1987-10-01 |
02112-0608A-000 |
from US $0.91 |
||
|
14
|
14
08321-21066-000
Lock washer
1985-11-01~1987-10-01 |
08321-21066-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-0106A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0106A-000 |
from US $0.76 |
||
|
15
|
15
02142-06108-000
6 x 10 screw
1985-11-01~1987-10-01 |
02142-06108-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-06107-000 SCREW1985-11-01~1987-10-01 |
02142-06107-000 |
from US $0.80 |
||
|
16
|
16
81730-80101-000
サッシュ,フロントドアリヤ,ライト
R; 1985-11-01~1987-10-01 |
81730-80101-000 |
— | ||
| replacements | |||||
|
16
|
16
81730-80102-000 SASH,FR DOOR REAR,RR; 1985-11-01~1987-10-01 |
81730-80102-000 |
from US $7.07 |
||
|
16
|
16
83661-82CA0-000 RUN,FR DOOR GLASSR; 1985-11-01~1987-10-01 |
83661-82CA0-000 |
from US $46.13 |
||
|
17
|
17
81740-80101-000
サッシュ,フロントドアリヤ,レフト
L; 1985-11-01~1987-10-01 |
81740-80101-000 |
— | ||
| replacements | |||||
|
17
|
17
81740-80102-000 SASH,FR DOOR REAR,LL; 1985-11-01~1987-10-01 |
81740-80102-000 |
US $30.40 |
||
|
17
|
17
83661-82CA0-000 RUN,FR DOOR GLASSL; 1985-11-01~1987-10-01 |
83661-82CA0-000 |
from US $46.13 |
||
|
18
|
18
02112-06128-000
Screw
1985-11-01~1987-10-01 |
02112-06128-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-06127-000 SCREW1985-11-01~1987-10-01 |
02112-06127-000 |
from US $0.76 |
||
|
19
|
19
08321-21067-000
Lock washer
1985-11-01~1987-10-01 |
08321-21067-000 |
— | ||
| replacement | |||||
|
19
|
19
08321-01067-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-01067-000 |
from US $0.65 |
||
|
20
|
20
08322-21067-000
Washer
1985-11-01~1987-10-01 |
08322-21067-000 |
— | ||
| replacement | |||||
|
20
|
20
08322-01067-000 WASHER1985-11-01~1987-10-01 |
08322-01067-000 |
from US $0.65 |
||
|
21
|
21
83911-80120-000
フィルム,ウォータプルーフ
1985-11-01~1987-10-01 |
83911-80120-000 |
— | ||
| replacement | |||||
|
21
|
21
83911-60X52-000 COVER,DR SEALING1985-11-01~1987-10-01 |
83911-60X52-000 |
US $6.06 |
||
|
22
|
22
78460-78002-281
ハンドル,レギュレータ(ブラック)
ブラック; 1985-11-01~1987-10-01 |
78460-78002-281 |
— | ||
| replacement | |||||
|
22
|
22
78460-78003-281 HANDLE,DR WINDOW RGLTRブラック; 1985-11-01~1987-10-01 |
78460-78003-281 |
US $26.60 |
||
|
23
|
23
78463-78000-000 SNAP1985-11-01~1987-10-01 |
78463-78000-000 |
from US $1.24 |
||
|
24
|
24
78472-78000-281
エスカッション,レギュレータハンドル(ブラック)
ブラック; 1985-11-01~1987-10-01 |
78472-78000-281 |
— | ||
| replacement | |||||
|
24
|
24
78472-78001-281 ESCUTCHEON,DR WDO RGLTR HDLブラック; 1985-11-01~1987-10-01 |
78472-78001-281 |
US $2.08 |
||
