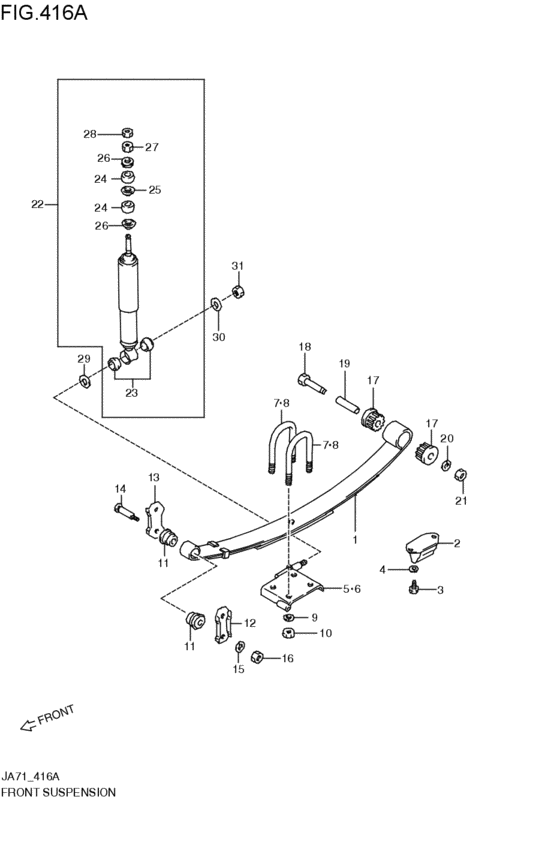

front suspension (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41110-80111-000
スプリングアッシ,フロント
NHK; 1985-11-01~1987-10-01 |
41110-80111-000 |
— | ||
|
2
|
2
42110-80010-000 BUMPER,FR SPRING1985-11-01~1987-10-01 |
42110-80010-000 |
from US $14.81 |
||
|
3
|
3
01107-08163-000
Bolt m8x1.25x16
1985-11-01~1987-10-01 |
01107-08163-000 |
— | ||
| replacements | |||||
|
3
|
3
01500-0816B-000 BoltBolt 1985-11-01~1987-10-01 |
01500-0816B-000 |
from US $0.96 |
||
|
3
|
3
01500-08163-000
Bolt
1985-11-01~1987-10-01 |
01500-08163-000 |
— | ||
|
4
|
4
08321-21083-000
Washr,lk8.2x15.
1985-11-01~1987-10-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0108B-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0108B-000 |
from US $0.76 |
||
|
4
|
4
08321-0108A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0108A-000 |
from US $0.90 |
||
|
5
|
5
41230-80102-000 SEAT,FRONT SPRING,R1985-11-01~1987-10-01 |
41230-80102-000 |
US $37.17 |
||
|
6
|
6
41240-80102-000
Seat,fr spring lh
1985-11-01~1987-10-01 |
41240-80102-000 |
— | ||
|
7
|
7
41411-80011-000
Uボルト,スプリング,ライト
1985-11-01~1987-10-01 |
41411-80011-000 |
— | ||
| replacement | |||||
|
7
|
7
41411-80012-000 U-BOLT,SPRING,R1985-11-01~1987-10-01 |
41411-80012-000 |
US $16.72 |
||
|
8
|
8
41411-80201-000 U-BOLT,RR SPRING1985-11-01~1987-10-01 |
41411-80201-000 |
from US $5.18 |
||
|
9
|
9
08321-31103-000
ロックワッシャ
1985-11-01~1987-10-01 |
08321-31103-000 |
— | ||
| replacements | |||||
|
9
|
9
08321-0110A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0110A-000 |
from US $0.96 |
||
|
9
|
9
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1985-11-01~1987-10-01 |
08321-0110B-000 |
from US $0.96 |
||
|
10
|
10
09140-10034-000 NUT1985-11-01~1987-10-01 |
09140-10034-000 |
US $1.12 |
||
|
11
|
11
09305-13002-000 BUSH1985-11-01~1987-10-01 |
09305-13002-000 |
from US $1.55 |
||
|
12
|
12
41461-77300-000 PLATE,INNER1985-11-01~1987-10-01 |
41461-77300-000 |
from US $3.71 |
||
|
13
|
13
41462-77300-000 PLATE,OUTER1985-11-01~1987-10-01 |
41462-77300-000 |
from US $3.11 |
||
|
14
|
14
41463-82000-000 PIN,SHACKLE1985-11-01~1987-10-01 |
41463-82000-000 |
from US $4.37 |
||
|
15
|
15
08321-31103-000
ロックワッシャ
1985-11-01~1987-10-01 |
08321-31103-000 |
— | ||
| replacements | |||||
|
15
|
15
08321-0110A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0110A-000 |
from US $0.96 |
||
|
15
|
15
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1985-11-01~1987-10-01 |
08321-0110B-000 |
from US $0.96 |
||
|
16
|
16
08310-12103-000 Nut1985-11-01~1987-10-01 |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
16
|
16
08310-0010B-000 NUT1985-11-01~1987-10-01 |
08310-0010B-000 |
from US $0.83 |
||
|
16
|
16
08310-0010A-000 NUT1985-11-01~1987-10-01 |
08310-0010A-000 |
from US $0.80 |
||
|
17
|
17
41331-62020-000 BUSH1985-11-01~1987-10-01 |
41331-62020-000 |
from US $17.91 |
||
|
18
|
18
09100-12025-000
ボルト,12X92
1985-11-01~1987-10-01 |
09100-12025-000 |
— | ||
| replacements | |||||
|
18
|
18
09103-12044-000 BOLT(12X87)1985-11-01~1987-10-01 |
09103-12044-000 |
from US $3.02 |
||
|
18
|
18
09103-12048-000 BOLT(12X90)1985-11-01~1987-10-01 |
09103-12048-000 |
from US $4.52 |
||
|
19
|
19
09180-12035-000 SPACER(12X16X64.5)1985-11-01~1987-10-01 |
09180-12035-000 |
from US $2.24 |
||
|
20
|
20
08321-31123-000 WASHER LOCK1985-11-01~1987-10-01 |
08321-31123-000 |
US $0.86 |
||
| replacement | |||||
|
20
|
20
08321-0112A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0112A-000 |
from US $0.76 |
||
|
21
|
21
08310-12123-000 NUT1985-11-01~1987-10-01 |
08310-12123-000 |
US $1.33 |
||
| replacement | |||||
|
21
|
21
08310-0012A-000 NUT1985-11-01~1987-10-01 |
08310-0012A-000 |
from US $0.76 |
||
|
22
|
22
41600-80001-000 SHOCK ABSORBER FRT1985-11-01~1987-10-01 |
41600-80001-000 |
US $51.50 |
||
| replacements | |||||
|
22
|
22
41600-82C01-000 ABSORBER ASSY,FR SHOCK1985-11-01~1987-10-01 |
41600-82C01-000 |
from US $51.50 |
||
|
22
|
22
08310-0010B-000 NUT1985-11-01~1987-10-01 |
08310-0010B-000 |
from US $0.83 |
||
|
22
|
22
08310-0010A-000 NUT1985-11-01~1987-10-01 |
08310-0010A-000 |
from US $0.80 |
||
|
22
|
22
08310-00103-000
Nut
1985-11-01~1987-10-01 |
08310-00103-000 |
— | ||
|
23
|
23
09320-16006-000
ブッシュ
1985-11-01~1987-10-01 |
09320-16006-000 |
— | ||
| replacement | |||||
|
23
|
23
41781-52010-000 BUSHING,SHOCK ABSORBER NO.11985-11-01~1987-10-01 |
41781-52010-000 |
US $2.24 |
||
|
24
|
24
09320-10024-000 CUSHION1985-11-01~1987-10-01 |
09320-10024-000 |
from US $4.03 |
||
|
25
|
25
09169-15002-000 WASHER1985-11-01~1987-10-01 |
09169-15002-000 |
from US $0.34 |
||
|
26
|
26
09165-10002-000 WASHER1985-11-01~1987-10-01 |
09165-10002-000 |
from US $2.08 |
||
|
27
|
27
08310-12103-000 Nut1985-11-01~1987-10-01 |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
27
|
27
08310-0010B-000 NUT1985-11-01~1987-10-01 |
08310-0010B-000 |
from US $0.83 |
||
|
27
|
27
08310-0010A-000 NUT1985-11-01~1987-10-01 |
08310-0010A-000 |
from US $0.80 |
||
|
28
|
28
08310-22103-000 ナット1985-11-01~1987-10-01 |
08310-22103-000 |
US $1.07 |
||
| replacements | |||||
|
28
|
28
08310-0010A-000 NUT1985-11-01~1987-10-01 |
08310-0010A-000 |
from US $0.80 |
||
|
28
|
28
08310-0010B-000 NUT1985-11-01~1987-10-01 |
08310-0010B-000 |
from US $0.83 |
||
|
29
|
29
08322-21163-000
New Genuine Part
1985-11-01~1987-10-01 |
08322-21163-000 |
— | ||
| replacement | |||||
|
29
|
29
08322-0116A-000 WASHER1985-11-01~1987-10-01 |
08322-0116A-000 |
from US $0.80 |
||
|
30
|
30
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) 1985-11-01~1987-10-01 |
09160-12073-000 |
from US $0.79 |
||
|
31
|
31
08310-12123-000 NUT1985-11-01~1987-10-01 |
08310-12123-000 |
US $1.33 |
||
| replacement | |||||
|
31
|
31
08310-0012A-000 NUT1985-11-01~1987-10-01 |
08310-0012A-000 |
from US $0.76 |
||
