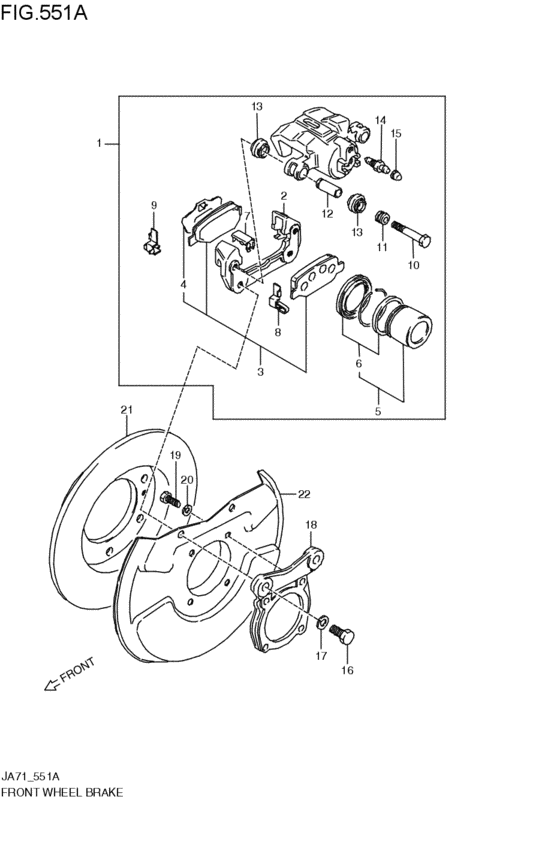

front wheel brakes (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55100-70A00-000
CALLIPER ASSY FRT BRAKE
1985-11-01~1987-10-01 |
55100-70A00-000 |
— | ||
| replacements | |||||
|
1
|
1
55100-70A04-999
CALIPER,FR BRAKE
1985-11-01~1987-10-01 |
55100-70A04-999 |
— | ||
|
1
|
1
55200-70813-000 PAD SET,DISC BRAKE1985-11-01~1987-10-01 |
55200-70813-000 |
from US $76.54 |
||
|
1
|
1
55100-70A05-999 Caliper,fr Brake1985-11-01~1987-10-01 |
55100-70A05-999 |
US $712 |
||
|
2
|
2
55161-80000-000 MOUNTING,DISC BRAKE1985-11-01~1987-10-01 |
55161-80000-000 |
from US $13.88 |
||
|
3
|
3
55200-70810-000
パッドセット,ディスクブレーキ
1985-11-01~1987-10-01 |
55200-70810-000 |
— | ||
| replacement | |||||
|
3
|
3
55200-70813-000 PAD SET,DISC BRAKE1985-11-01~1987-10-01 |
55200-70813-000 |
from US $76.54 |
||
|
4
|
4
55115-80000-000
SHIM
1985-11-01~1987-10-01 |
55115-80000-000 |
— | ||
|
5
|
5
55100-60840-000
ピストン/シールセット
1985-11-01~1987-10-01 |
55100-60840-000 |
— | ||
| replacements | |||||
|
5
|
5
55830-60C12-000
PISTON / SEAL SET
1985-11-01~1987-10-01 |
55830-60C12-000 |
— | ||
|
5
|
5
55830-60C13-000
Piston / Seal Set
1985-11-01~1987-10-01 |
55830-60C13-000 |
— | ||
|
6
|
6
55100-82820-000
Seal set,piston
1985-11-01~1987-10-01 |
55100-82820-000 |
— | ||
| replacements | |||||
|
6
|
6
55100-82822-000
SEAL SET,PISTON
1985-11-01~1987-10-01 |
55100-82822-000 |
— | ||
|
6
|
6
55100-82823-000 Seal Set,piston1985-11-01~1987-10-01 |
55100-82823-000 |
US $10.10 |
||
|
6
|
6
55100-82824-000 Seal Set,Piston1985-11-01~1987-10-01 |
55100-82824-000 |
from US $8 |
||
|
7
|
7
55233-80000-000 PLATE,DUST1985-11-01~1987-10-01 |
55233-80000-000 |
US $0.88 |
||
|
8
|
8
55234-60B00-000 PLATE,PAD SUPPORT NO.11985-11-01~1987-10-01 |
55234-60B00-000 |
US $5.94 |
||
| replacement | |||||
|
8
|
8
55234-78R00-000 F/Disc pad shim1985-11-01~1987-10-01 |
55234-78R00-000 |
from US $6.57 |
||
|
9
|
9
55235-60B00-000 PLATE,PAD SUPPORT NO.21985-11-01~1987-10-01 |
55235-60B00-000 |
US $6.75 |
||
| replacement | |||||
|
9
|
9
55235-78R00-000 Plate, pad support No.21985-11-01~1987-10-01 |
55235-78R00-000 |
from US $6.69 |
||
|
10
|
10
55206-80000-000
ボルト
1985-11-01~1987-10-01 |
55206-80000-000 |
— | ||
| replacements | |||||
|
10
|
10
01500-0855B-000 Bolt1985-11-01~1987-10-01 |
01500-0855B-000 |
from US $1.12 |
||
|
10
|
10
01500-08553-000
Bolt
1985-11-01~1987-10-01 |
01500-08553-000 |
— | ||
|
11
|
11
55196-80001-000
サポート,ダストブーツ
1985-11-01~1986-12-01 |
55196-80001-000 |
— | ||
| replacement | |||||
|
11
|
11
55196-80002-000 SUPPORT,DUST BOOT1985-11-01~1986-12-01 |
55196-80002-000 |
US $2.40 |
||
|
11
|
11
55196-80002-000 SUPPORT,DUST BOOT1986-12-01~1987-10-01 |
55196-80002-000 |
US $2.40 |
||
|
12
|
12
55191-80000-000
ブッシュ,シリンダスライド
1985-11-01~1987-10-01 |
55191-80000-000 |
— | ||
| replacement | |||||
|
12
|
12
55191-80001-000 BUSHING,CYLINDER SLIDE1985-11-01~1987-10-01 |
55191-80001-000 |
US $19.01 |
||
|
13
|
13
55201-80001-000 BOOT,BUSH DUST1985-11-01~1987-10-01 |
55201-80001-000 |
from US $2.40 |
||
|
14
|
14
52473-60020-000
プラグ,ブリーダ
1985-11-01~1987-10-01 |
52473-60020-000 |
— | ||
| replacement | |||||
|
14
|
14
55151-78451-000 PLUG,BLEEDER1985-11-01~1987-10-01 |
55151-78451-000 |
from US $4.32 |
||
|
15
|
15
52474-60020-000
Bleeder cap
1985-11-01~1987-10-01 |
52474-60020-000 |
— | ||
| replacements | |||||
|
15
|
15
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 1985-11-01~1987-10-01 |
55156-66310-000 |
from US $1.98 |
||
|
15
|
15
59122-18410-000
Cap, bleeder plug
1985-11-01~1987-10-01 |
59122-18410-000 |
— | ||
|
16
|
16
09100-12111-000 BOLT(12X33)1985-11-01~1987-10-01 |
09100-12111-000 |
from US $2.24 |
||
|
17
|
17
08321-31123-000 WASHER LOCK1985-11-01~1987-10-01 |
08321-31123-000 |
US $0.86 |
||
| replacement | |||||
|
17
|
17
08321-0112A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0112A-000 |
from US $0.76 |
||
|
18
|
18
55311-80000-000 HOLDER,BRAKE CALIPER1985-11-01~1987-10-01 |
55311-80000-000 |
from US $41.15 |
||
|
19
|
19
09100-10023-000 BOLT(10X40.5)1985-11-01~1987-10-01 |
09100-10023-000 |
from US $0.61 |
||
|
20
|
20
08321-31103-000
ロックワッシャ
1985-11-01~1987-10-01 |
08321-31103-000 |
— | ||
| replacements | |||||
|
20
|
20
08321-0110A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0110A-000 |
from US $0.96 |
||
|
20
|
20
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1985-11-01~1987-10-01 |
08321-0110B-000 |
from US $0.96 |
||
|
21
|
21
55211-80000-000
ディスク,フロントブレーキ
1985-11-01~1987-10-01 |
55211-80000-000 |
— | ||
| replacement | |||||
|
21
|
21
55211-80020-000 DISC,FR BRAKE1985-11-01~1987-10-01 |
55211-80020-000 |
US $140.80 |
||
|
22
|
22
55221-80000-000 DUST COVER,BRAKE DISC1985-11-01~1987-10-01 |
55221-80000-000 |
from US $16.16 |
||
