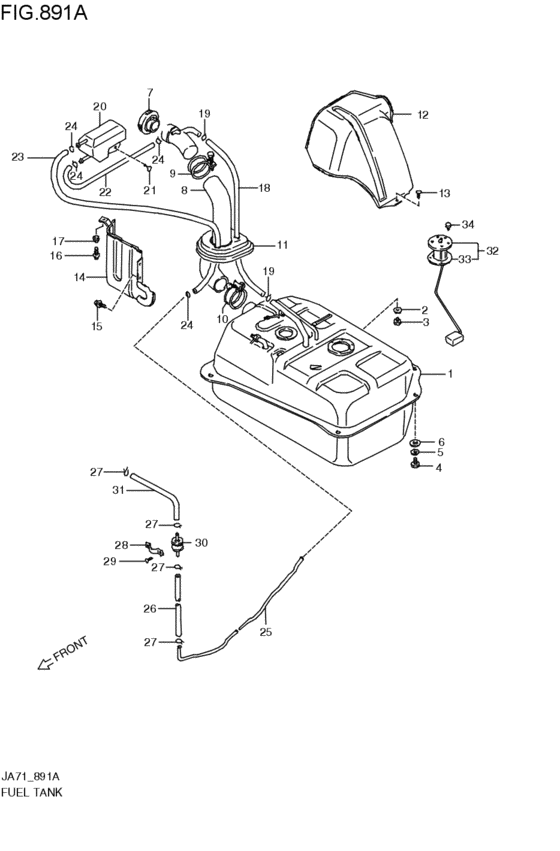

fuel tank (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-80042-000
タンクアッシ,フューエル
1985-11-01~1987-10-01 |
89101-80042-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-70A20-000 TANK ASSY,FUEL1985-11-01~1987-10-01 |
89101-70A20-000 |
US $422.40 |
||
|
2
|
2
09168-12005-000
ガスケット,12X21X1.5
1985-11-01~1987-10-01 |
09168-12005-000 |
— | ||
| replacement | |||||
|
2
|
2
09168-12018-000 GASKET(12X21X2)1985-11-01~1987-10-01 |
09168-12018-000 |
from US $1.10 |
||
|
3
|
3
09247-12101-000 Bolt1985-11-01~1987-10-01 |
09247-12101-000 |
from US $0.63 |
||
|
4
|
4
01107-10256-000
Bolt 10x25 upper
1985-11-01~1987-10-01 |
01107-10256-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-1025A-000 Bolt1985-11-01~1987-10-01 |
01500-1025A-000 |
US $0.91 |
||
|
5
|
5
08321-21106-000
Lock washer
1985-11-01~1987-10-01 |
08321-21106-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1985-11-01~1987-10-01 |
08321-0110B-000 |
from US $0.96 |
||
|
5
|
5
08321-0110A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0110A-000 |
from US $0.96 |
||
|
6
|
6
08322-21106-000
Washer 10mm
1985-11-01~1987-10-01 |
08322-21106-000 |
— | ||
| replacements | |||||
|
6
|
6
08322-0110B-000 WASHERWasher, knuckle end 1985-11-01~1987-10-01 |
08322-0110B-000 |
from US $0.76 |
||
|
6
|
6
08322-0110A-000 WASHERWasher, knuckle end 1985-11-01~1987-10-01 |
08322-0110A-000 |
from US $0.80 |
||
|
7
|
7
85410-79202-000
キャップアッシ,フューエルタンクフィラ
1985-11-01~1987-10-01 |
85410-79202-000 |
— | ||
| replacement | |||||
|
7
|
7
89260-50C00-000 CAP ASSY,FUEL FILLER1985-11-01~1987-10-01 |
89260-50C00-000 |
from US $38.52 |
||
|
8
|
8
89241-80000-000 PIPE1985-11-01~1987-10-01 |
89241-80000-000 |
US $61.25 |
||
| replacements | |||||
|
8
|
8
89241-83020-000 HOSE,FUEL TANK FILLER1985-11-01~1987-10-01 |
89241-83020-000 |
from US $61.25 |
||
|
8
|
8
89312-83030-000 PROTECTOR,INLET PIPE LOWER1985-11-01~1987-10-01 |
89312-83030-000 |
from US $14.42 |
||
|
9
|
9
09400-60301-000 CLAMP1985-11-01~1987-10-01 |
09400-60301-000 |
from US $0.70 |
||
|
10
|
10
09400-53301-000 CLAMP1985-11-01~1987-10-01 |
09400-53301-000 |
from US $2.24 |
||
|
11
|
11
89281-80010-000
シール,フューエルインレットパイプダスト
1985-11-01~1987-10-01 |
89281-80010-000 |
— | ||
| replacement | |||||
|
11
|
11
89281-80020-000 SEALER,FUEL FILLER HOSE DUST1985-11-01~1987-10-01 |
89281-80020-000 |
from US $12.98 |
||
|
12
|
12
89311-80000-000
PROTECTOR,FUEL INLET PIPE UPR
1985-11-01~1987-10-01 |
89311-80000-000 |
— | ||
|
13
|
13
02142-06108-000
6 x 10 screw
1985-11-01~1987-10-01 |
02142-06108-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-06107-000 SCREW1985-11-01~1987-10-01 |
02142-06107-000 |
from US $0.80 |
||
|
14
|
14
89312-83010-000
プロテクタ,インレットパイプ,ロア
1985-11-01~1987-10-01 |
89312-83010-000 |
— | ||
| replacement | |||||
|
14
|
14
89312-83030-000 PROTECTOR,INLET PIPE LOWER1985-11-01~1987-10-01 |
89312-83030-000 |
from US $14.42 |
||
|
15
|
15
01517-06106-000
Bolt, t/f shift plate
1985-11-01~1987-10-01 |
01517-06106-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0610B-000 BoltBolt 1985-11-01~1987-10-01 |
01550-0610B-000 |
from US $0.96 |
||
|
15
|
15
01550-0610A-000 Bolt1985-11-01~1987-10-01 |
01550-0610A-000 |
from US $0.96 |
||
|
16
|
16
09103-06089-000 BOLT(6X20)1985-11-01~1987-10-01 |
09103-06089-000 |
from US $0.25 |
||
|
17
|
17
09305-07003-000 BUSH1985-11-01~1987-10-01 |
09305-07003-000 |
from US $0.36 |
||
|
18
|
18
09352-11163-600 HOSE(11X16X600)L:600>410; 1985-11-01~1987-10-01 |
09352-11163-600 |
US $26.40 |
||
|
19
|
19
09401-16301-000 CLAMP1985-11-01~1987-10-01 |
09401-16301-000 |
US $12.90 |
||
|
20
|
20
89411-80000-000 SEPARATOR,FUEL1985-11-01~1987-10-01 |
89411-80000-000 |
US $14.87 |
||
|
21
|
21
03141-06108-000
New Genuine Part
1985-11-01~1987-10-01 |
03141-06108-000 |
— | ||
| replacement | |||||
|
21
|
21
03141-0610A-000 SCREW1985-11-01~1987-10-01 |
03141-0610A-000 |
US $0.96 |
||
|
22
|
22
09352-50823-600
HOSE(5X8.2X600)
L:600>485; 1985-11-01~1987-10-01 |
09352-50823-600 |
— | ||
|
23
|
23
09352-50823-300
Hose, breather
L:300>180; 1985-11-01~1987-10-01 |
09352-50823-300 |
— | ||
| replacements | |||||
|
23
|
23
44420-44AR0-000 HOSE SET,FUELL:300>180; 1985-11-01~1987-10-01 |
44420-44AR0-000 |
US $11.95 |
||
|
23
|
23
09352-50823-600
HOSE(5X8.2X600)
L:300>180; 1985-11-01~1987-10-01 |
09352-50823-600 |
— | ||
|
23
|
23
09352-50005-600 Hose(5X8.2X600)L:300>180; 1985-11-01~1987-10-01 |
09352-50005-600 |
from US $4.10 |
||
|
24
|
24
09401-08402-000 CLIP1985-11-01~1987-10-01 |
09401-08402-000 |
US $2.18 |
||
|
25
|
25
89431-83000-000
Pipe,evaporation no.1
1985-11-01~1987-10-01 |
89431-83000-000 |
— | ||
|
26
|
26
09354-54115-600
ホース,5.4X11.4X600
L:600>365; 1985-11-01~1987-10-01 |
09354-54115-600 |
— | ||
| replacement | |||||
|
26
|
26
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>365; 1985-11-01~1987-10-01 |
09355-54115-600 |
from US $7.20 |
||
|
27
|
27
09401-11402-000
Clip
1985-11-01~1987-10-01 |
09401-11402-000 |
— | ||
| replacement | |||||
|
27
|
27
09401-11403-000 CLIPClip 1985-11-01~1987-10-01 |
09401-11403-000 |
from US $1.60 |
||
|
28
|
28
89485-82000-000 CLAMP,CHECK VALVE1985-11-01~1987-10-01 |
89485-82000-000 |
US $2.24 |
||
|
29
|
29
02112-05086-000
Screw
1985-11-01~1987-10-01 |
02112-05086-000 |
— | ||
| replacement | |||||
|
29
|
29
02112-0508A-000 SCREW1985-11-01~1987-10-01 |
02112-0508A-000 |
from US $0.80 |
||
|
30
|
30
85451-75100-000 VALVE,2WAY CHECKValve, check 1985-11-01~1987-10-01 |
85451-75100-000 |
from US $29.27 |
||
|
31
|
31
09354-54115-300
ホース,5.4X11.4X300
L:300>130; 1985-11-01~1987-10-01 |
09354-54115-300 |
— | ||
| replacement | |||||
|
31
|
31
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:300>130; 1985-11-01~1987-10-01 |
09355-54115-600 |
from US $7.20 |
||
|
32
|
32
34810-80700-000 GAUGE ASSY,FUEL LEVELDENSO; 1985-11-01~1987-10-01 |
34810-80700-000 |
from US $66.88 |
||
|
33
|
33
34825-67012-000 GASKETDENSO; 1985-11-01~1987-10-01 |
34825-67012-000 |
from US $1.60 |
||
|
34
|
34
02112-05087-000 SCREW1985-11-01~1987-10-01 |
02112-05087-000 |
from US $0.80 |
||
