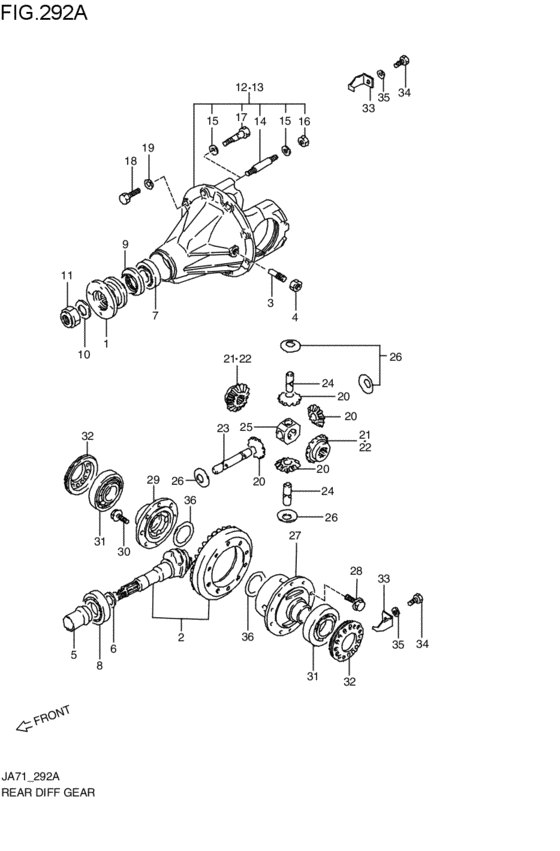

リヤデファレンシャルギヤ (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-80401-000
フランジ,ユニバーサルジョイント
1985-11-01~1987-10-01 |
27110-80401-000 |
— | ||
| replacement | |||||
|
1
|
1
27110-80402-000 FLANGE,UNIVERSAL JOINT1985-11-01~1987-10-01 |
27110-80402-000 |
US $38.40 |
||
|
2
|
2
27300-80830-000
ピニオン/ギヤセット,ドライブベベル
1985-11-01~1987-10-01 |
27300-80830-000 |
— | ||
| replacement | |||||
|
2
|
2
27300-80851-000
ベベルピニオン/ギヤセット,リヤ
1985-11-01~1987-10-01 |
27300-80851-000 |
— | ||
|
3
|
3
27322-80700-000
ボルト,ベベルギヤスラスト,リヤ
1985-11-01~1987-10-01 |
27322-80700-000 |
— | ||
|
4
|
4
08310-21146-000
ナット
1985-11-01~1987-10-01 |
08310-21146-000 |
— | ||
| replacement | |||||
|
4
|
4
08310-0014A-000 NUT1985-11-01~1987-10-01 |
08310-0014A-000 |
from US $0.91 |
||
|
5
|
5
27315-80000-000 SPACER PINION1985-11-01~1987-10-01 |
27315-80000-000 |
US $10.04 |
||
| replacement | |||||
|
5
|
5
27315-64P00-000 SPACER,DRIVE BEVEL PINION1985-11-01~1987-10-01 |
27315-64P00-000 |
from US $10.04 |
||
|
6
|
6
08221-30362-000
SHIM
1985-11-01~1987-10-01 |
08221-30362-000 |
— | ||
| replacement | |||||
|
6
|
6
09181-30052-000 SHIM(30X36X0.05)1985-11-01~1987-10-01 |
09181-30052-000 |
from US $0.99 |
||
|
6
|
6
08221-30383-000 SHIM1985-11-01~1987-10-01 |
08221-30383-000 |
from US $0.54 |
||
|
6
|
6
08221-30385-000
Pri driven gr s
1985-11-01~1987-10-01 |
08221-30385-000 |
— | ||
|
6
|
6
09181-30001-000 SHIM(30X38X0.3)1985-11-01~1987-10-01 |
09181-30001-000 |
from US $0.83 |
||
|
7
|
7
09265-25005-000
ベアリング,25X62X18.25
1985-11-01~1987-10-01 |
09265-25005-000 |
— | ||
| replacement | |||||
|
7
|
7
09265-25039-000 BEARING(25X62X18.25)1985-11-01~1987-10-01 |
09265-25039-000 |
from US $28.60 |
||
|
8
|
8
09265-30002-000
ベアリング,30X72X20.75
1985-11-01~1987-10-01 |
09265-30002-000 |
— | ||
| replacement | |||||
|
8
|
8
09265-30010-000 BEARING(30X72X20.75)1985-11-01~1987-10-01 |
09265-30010-000 |
from US $45.60 |
||
|
9
|
9
09283-35008-000
Seal, oil (35x62x10)
1985-11-01~1987-10-01 |
09283-35008-000 |
— | ||
| replacement | |||||
|
9
|
9
09283-35052-000 SEAL,OIL(35X62X14.8)1985-11-01~1987-10-01 |
09283-35052-000 |
from US $10.34 |
||
|
10
|
10
09160-19010-000
Washer
1985-11-01~1987-10-01 |
09160-19010-000 |
— | ||
| replacement | |||||
|
10
|
10
09160-19022-000 WASHER(19X32X3.2)Washer (19x32x3.2) 1985-11-01~1987-10-01 |
09160-19022-000 |
from US $1.92 |
||
|
11
|
11
09159-18003-000 NUT1985-11-01~1987-10-01 |
09159-18003-000 |
from US $1.92 |
||
|
12
|
12
27450-80712-000 CARIER ASSY DIFFFRONT; 1985-11-01~1987-10-01 |
27450-80712-000 |
US $120.26 |
||
| replacements | |||||
|
12
|
12
27450-80713-000 CARRIER ASSY,DIFFFRONT; 1985-11-01~1987-10-01 |
27450-80713-000 |
from US $120.26 |
||
|
12
|
12
09265-25039-000 BEARING(25X62X18.25)FRONT; 1985-11-01~1987-10-01 |
09265-25039-000 |
from US $28.60 |
||
|
12
|
12
09265-30018-000 BEARING(30X72X20.75)FRONT; 1985-11-01~1987-10-01 |
09265-30018-000 |
from US $40.80 |
||
|
13
|
13
27450-80700-000
キャリアアッシ,ディファレンシャル,リヤ
REAR; 1985-11-01~1987-10-01 |
27450-80700-000 |
— | ||
| replacements | |||||
|
13
|
13
09265-25039-000 BEARING(25X62X18.25)REAR; 1985-11-01~1987-10-01 |
09265-25039-000 |
from US $28.60 |
||
|
13
|
13
09265-30018-000 BEARING(30X72X20.75)REAR; 1985-11-01~1987-10-01 |
09265-30018-000 |
from US $40.80 |
||
|
13
|
13
27450-80713-000 CARRIER ASSY,DIFFREAR; 1985-11-01~1987-10-01 |
27450-80713-000 |
from US $120.26 |
||
|
14
|
14
09108-10014-000
スタッドボルト
1985-11-01~1987-03-01 |
09108-10014-000 |
— | ||
|
15
|
15
08321-31106-000
Washer lock
1985-11-01~1987-10-01 |
08321-31106-000 |
— | ||
| replacements | |||||
|
15
|
15
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1985-11-01~1987-10-01 |
08321-0110B-000 |
from US $0.96 |
||
|
15
|
15
08321-0110A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0110A-000 |
from US $0.96 |
||
|
16
|
16
08310-12106-000
Nut
1985-11-01~1987-03-01 |
08310-12106-000 |
— | ||
| replacements | |||||
|
16
|
16
08310-0010B-000 NUT1985-11-01~1987-03-01 |
08310-0010B-000 |
from US $0.83 |
||
|
16
|
16
08310-0010A-000 NUT1985-11-01~1987-03-01 |
08310-0010A-000 |
from US $0.80 |
||
|
17
|
17
09111-10043-000
ボルト
1987-03-01~1987-10-01 |
09111-10043-000 |
— | ||
| replacement | |||||
|
17
|
17
09111-10054-000 BOLT(10X50)1987-03-01~1987-10-01 |
09111-10054-000 |
from US $2.77 |
||
|
18
|
18
01107-08253-000 Bolt m8x1.25x251985-11-01~1987-10-01 |
01107-08253-000 |
from US $1.04 |
||
| replacement | |||||
|
18
|
18
01500-0825A-000 Bolt1985-11-01~1987-10-01 |
01500-0825A-000 |
from US $0.91 |
||
|
19
|
19
08321-31083-000
New Genuine Part
1985-11-01~1987-10-01 |
08321-31083-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0108A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0108A-000 |
from US $0.90 |
||
|
19
|
19
08321-0108B-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0108B-000 |
from US $0.76 |
||
|
20
|
20
27331-82010-000 GEAR DIFF1985-11-01~1987-10-01 |
27331-82010-000 |
US $29.27 |
||
| replacement | |||||
|
20
|
20
27331-78FJ1-000 PINION,DIFFERENTIAL1985-11-01~1987-10-01 |
27331-78FJ1-000 |
from US $25.94 |
||
|
21
|
21
27341-82000-000
GEAR DIFF
FRONT; 1985-11-01~1987-10-01 |
27341-82000-000 |
— | ||
| replacement | |||||
|
21
|
21
27341-76G12-000 GEAR,DIFFFRONT; 1985-11-01~1987-10-01 |
27341-76G12-000 |
from US $56.72 |
||
|
22
|
22
27341-63205-000
ギヤ,ディファレンシャル,リヤ
REAR; 1985-11-01~1987-10-01 |
27341-63205-000 |
— | ||
| replacement | |||||
|
22
|
22
27341-63206-000 GEAR,FR DIFFREAR; 1985-11-01~1987-10-01 |
27341-63206-000 |
US $56.67 |
||
|
23
|
23
27351-63200-000
シャフト,ピニオン,NO.1
1985-11-01~1987-10-01 |
27351-63200-000 |
— | ||
| replacement | |||||
|
23
|
23
27555-53F00-000 SHAFT,DIFF SIDE PINION1985-11-01~1987-10-01 |
27555-53F00-000 |
US $26.31 |
||
|
24
|
24
27355-63200-000 SHAFT,PINION NO.21985-11-01~1987-10-01 |
27355-63200-000 |
from US $11.90 |
||
|
25
|
25
27356-63001-000
SHAFT DIFF PINION
1985-11-01~1987-10-01 |
27356-63001-000 |
— | ||
| replacement | |||||
|
25
|
25
27356-86081-000 JOINT,DIFF PINION SHAFT1985-11-01~1987-10-01 |
27356-86081-000 |
from US $27.65 |
||
|
26
|
26
09164-15003-000 WASHER1985-11-01~1987-10-01 |
09164-15003-000 |
from US $1.60 |
||
|
27
|
27
27411-80000-000 CASE,DIFF1985-11-01~1987-10-01 |
27411-80000-000 |
from US $65.93 |
||
|
28
|
28
09103-10028-000
Bolt, oil pump drive gear
1985-11-01~1987-10-01 |
09103-10028-000 |
— | ||
| replacement | |||||
|
28
|
28
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear 1985-11-01~1987-10-01 |
09103-10290-000 |
from US $1.76 |
||
|
29
|
29
27421-80000-000
CASE,DIFF
1985-11-01~1987-10-01 |
27421-80000-000 |
— | ||
|
30
|
30
09103-08030-000
ボルト,8X18.5
1985-11-01~1987-10-01 |
09103-08030-000 |
— | ||
| replacement | |||||
|
30
|
30
09103-08348-000 BOLT(8X18.5)1985-11-01~1987-10-01 |
09103-08348-000 |
from US $1.76 |
||
|
31
|
31
09265-41001-000 BEARING(41X68X17.5)1985-11-01~1987-10-01 |
09265-41001-000 |
from US $38.40 |
||
|
32
|
32
27461-63201-000 ADJUSTER,DIFF SIDE BEARING1985-11-01~1987-10-01 |
27461-63201-000 |
from US $6.37 |
||
|
33
|
33
27462-63202-000 PLATE,BEARING LOCK1985-11-01~1987-10-01 |
27462-63202-000 |
from US $2.74 |
||
|
34
|
34
01107-08126-000
Bolt 8x12
1985-11-01~1987-10-01 |
01107-08126-000 |
— | ||
| replacement | |||||
|
34
|
34
01500-0812A-000 Bolt1985-11-01~1987-10-01 |
01500-0812A-000 |
from US $0.78 |
||
|
35
|
35
08321-21086-000
Wsherlck8.2x15.2x1.6
1985-11-01~1987-10-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
35
|
35
08321-0108B-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0108B-000 |
from US $0.76 |
||
|
35
|
35
08321-0108A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0108A-000 |
from US $0.90 |
||
|
36
|
36
09160-35002-000 WASHER(35X46X1)1985-11-01~1987-10-01 |
09160-35002-000 |
from US $1.53 |
||
|
36
|
36
09160-35003-000 WASHER(35X46X1.1)1985-11-01~1987-10-01 |
09160-35003-000 |
from US $1.94 |
||
|
36
|
36
09160-35004-000 WASHER(35X46X1.2)1985-11-01~1987-10-01 |
09160-35004-000 |
from US $1.94 |
||
|
36
|
36
09160-35006-000 WASHER(35X46X0.9)1985-11-01~1987-10-01 |
09160-35006-000 |
from US $1.73 |
||
