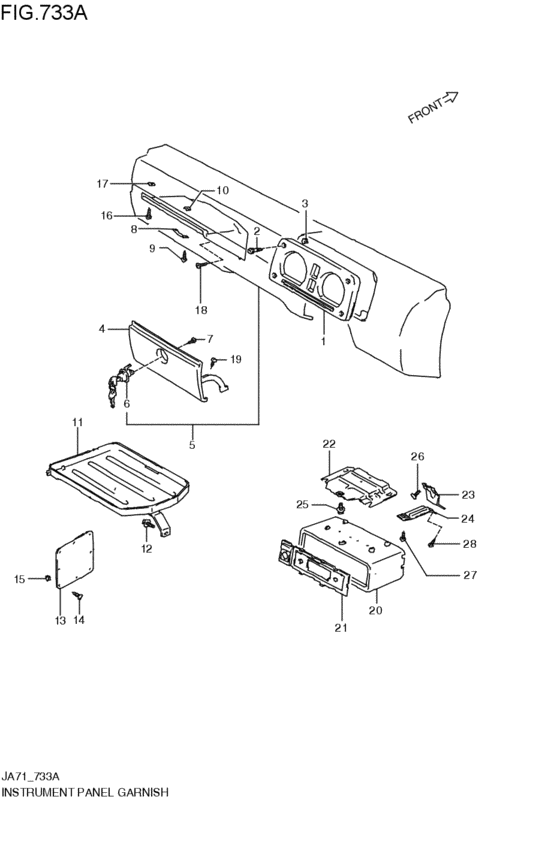

Облицовка приборной панели (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73311-83010-55Y
HOOD,COMBINATION METER
グレ-; 1985-11-01~1987-10-01 |
73311-83010-55Y |
— | ||
|
2
|
2
09106-05015-000 BOLT(5X34)1985-11-01~1987-10-01 |
09106-05015-000 |
US $0.25 |
||
| replacement | |||||
|
2
|
2
07130-0530B-000 BoltBolt, stator 1985-11-01~1987-10-01 |
07130-0530B-000 |
US $0.96 |
||
|
3
|
3
09148-05023-000
Nut
1985-11-01~1987-10-01 |
09148-05023-000 |
— | ||
| replacement | |||||
|
3
|
3
09148-05021-000 NUTNut, fitting 1985-11-01~1987-10-01 |
09148-05021-000 |
from US $0.25 |
||
|
4
|
4
73411-83000-55Y LID,GLOVE BOX I/Pグレ-; 1985-11-01~1987-10-01 |
73411-83000-55Y |
from US $21.53 |
||
|
5
|
5
73451-83000-000 COVER,GLOVE BOX UPPER1985-11-01~1987-10-01 |
73451-83000-000 |
from US $7.56 |
||
|
6
|
6
73900-80832-000 CYLINDER SET,INSTRUMENT LID1985-11-01~1987-10-01 |
73900-80832-000 |
from US $28.31 |
||
|
7
|
7
02142-04106-000
スクリュ
1985-11-01~1987-10-01 |
02142-04106-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0410A-000 SCREW1985-11-01~1987-10-01 |
02142-0410A-000 |
from US $0.76 |
||
|
8
|
8
73951-83000-000 STRIKER,GLOVE BOX LID1985-11-01~1987-10-01 |
73951-83000-000 |
from US $0.56 |
||
|
9
|
9
03242-05165-000
Screw
1985-11-01~1987-10-01 |
03242-05165-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0516A-000 SCREW1985-11-01~1987-10-01 |
03241-0516A-000 |
from US $0.76 |
||
|
10
|
10
09148-05013-000 NUT1985-11-01~1987-10-01 |
09148-05013-000 |
from US $0.36 |
||
|
11
|
11
75611-70A00-000 TRAY,FRONT PACKAGE1985-11-01~1987-10-01 |
75611-70A00-000 |
US $61.60 |
||
|
12
|
12
01517-06106-000
Bolt, t/f shift plate
1985-11-01~1987-10-01 |
01517-06106-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0610B-000 BoltBolt 1985-11-01~1987-10-01 |
01550-0610B-000 |
from US $0.96 |
||
|
12
|
12
01550-0610A-000 Bolt1985-11-01~1987-10-01 |
01550-0610A-000 |
from US $0.96 |
||
|
13
|
13
76411-80000-000 COVER,SPEAKER HOLEV; 1985-11-01~1987-10-01 |
76411-80000-000 |
US $8.64 |
||
|
14
|
14
03142-04169-000
Screw
1985-11-01~1987-10-01 |
03142-04169-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0416A-000 SCREW1985-11-01~1987-10-01 |
03141-0416A-000 |
from US $0.96 |
||
|
15
|
15
09159-04004-000 NUT1985-11-01~1987-10-01 |
09159-04004-000 |
from US $0.29 |
||
|
16
|
16
03242-05165-000
Screw
1985-11-01~1987-10-01 |
03242-05165-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0516A-000 SCREW1985-11-01~1987-10-01 |
03241-0516A-000 |
from US $0.76 |
||
|
17
|
17
09148-05013-000 NUT1985-11-01~1987-10-01 |
09148-05013-000 |
from US $0.36 |
||
|
18
|
18
02142-06164-000
Screw
1985-11-01~1987-10-01 |
02142-06164-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0616A-000 SCREW1985-11-01~1987-10-01 |
02142-0616A-000 |
from US $0.76 |
||
|
19
|
19
03112-04165-000
Screw
1985-11-01~1987-10-01 |
03112-04165-000 |
— | ||
| replacement | |||||
|
19
|
19
03111-0416A-000 SCREW1985-11-01~1987-10-01 |
03111-0416A-000 |
US $0.80 |
||
|
20
|
20
73841-83000-55Y BOX,CONSOLEグレ-; 1985-11-01~1987-10-01 |
73841-83000-55Y |
from US $13.01 |
||
|
21
|
21
73842-83000-55Y PANEL,CONSOLE,Rグレ-; 1985-11-01~1987-10-01 |
73842-83000-55Y |
US $13.60 |
||
|
22
|
22
73823-83000-000 BRACKET,CONSOLE1985-11-01~1987-10-01 |
73823-83000-000 |
from US $2.90 |
||
|
23
|
23
73824-83000-000 STAY,TUNER1985-11-01~1987-10-01 |
73824-83000-000 |
from US $1.10 |
||
|
24
|
24
73825-83000-000 STAY,CONSOLE BOX1985-11-01~1987-10-01 |
73825-83000-000 |
from US $1.89 |
||
|
25
|
25
01517-06126-000
Bolt m6x1x12
1985-11-01~1987-10-01 |
01517-06126-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BoltBolt, clamp 1985-11-01~1987-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 Bolt1985-11-01~1987-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
02142-06125-000
Screw
1985-11-01~1987-10-01 |
02142-06125-000 |
— | ||
| replacements | |||||
|
26
|
26
02142-0612B-000 SCREW1985-11-01~1987-10-01 |
02142-0612B-000 |
from US $0.76 |
||
|
26
|
26
02142-0612A-000 SCREW1985-11-01~1987-10-01 |
02142-0612A-000 |
from US $0.80 |
||
|
27
|
27
02142-06125-000
Screw
1985-11-01~1987-10-01 |
02142-06125-000 |
— | ||
| replacements | |||||
|
27
|
27
02142-0612B-000 SCREW1985-11-01~1987-10-01 |
02142-0612B-000 |
from US $0.76 |
||
|
27
|
27
02142-0612A-000 SCREW1985-11-01~1987-10-01 |
02142-0612A-000 |
from US $0.80 |
||
|
28
|
28
03242-05109-000
Screw
1985-11-01~1987-10-01 |
03242-05109-000 |
— | ||
| replacements | |||||
|
28
|
28
03242-0510B-000 SCREW1985-11-01~1987-10-01 |
03242-0510B-000 |
US $0.76 |
||
|
28
|
28
03241-0510A-000 SCREW1985-11-01~1987-10-01 |
03241-0510A-000 |
from US $0.80 |
||
