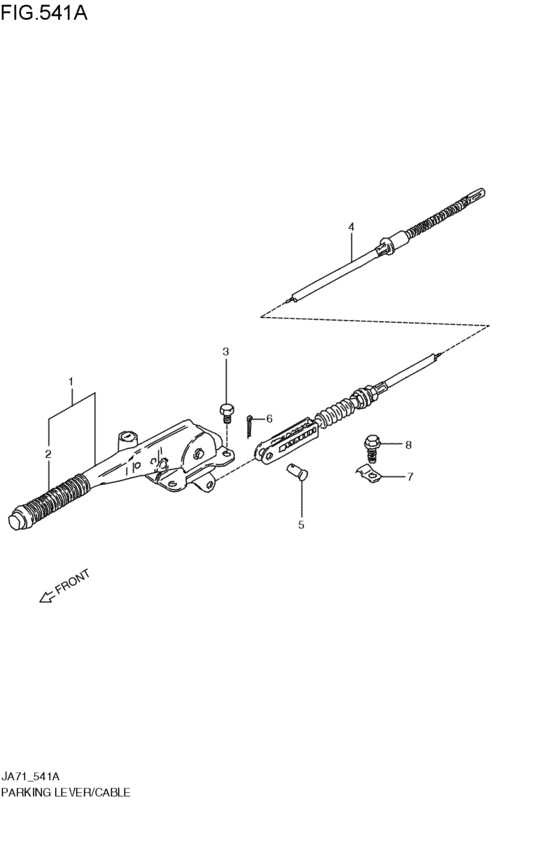

parking lever / cable (センタブレーキレバー; 1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-80113-000 LEVER ASSY,CTR BRAKEV; 1985-11-01~1987-10-01 |
54100-80113-000 |
US $85.38 |
||
|
2
|
2
54112-64010-000
CLIP
1985-11-01~1987-10-01 |
54112-64010-000 |
— | ||
|
3
|
3
01107-06126-000
Bolt 6x12
1985-11-01~1987-10-01 |
01107-06126-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-0612A-000 Bolt1985-11-01~1987-10-01 |
01500-0612A-000 |
from US $0.76 |
||
|
4
|
4
54640-80011-000 CABLE,CENTER BRAKE1985-11-01~1987-10-01 |
54640-80011-000 |
from US $36.83 |
||
|
5
|
5
09200-08039-000 PIN1985-11-01~1987-10-01 |
09200-08039-000 |
US $1.28 |
||
|
6
|
6
04111-25206-000
コッタピン
1985-11-01~1987-10-01 |
04111-25206-000 |
— | ||
| replacement | |||||
|
6
|
6
04111-2520A-000 PIN1985-11-01~1987-10-01 |
04111-2520A-000 |
from US $0.80 |
||
|
7
|
7
09403-05306-000
CLAMP
1985-11-01~1987-10-01 |
09403-05306-000 |
— | ||
|
8
|
8
09132-06006-000 SCREW(6X12)1985-11-01~1987-10-01 |
09132-06006-000 |
from US $0.88 |
||
