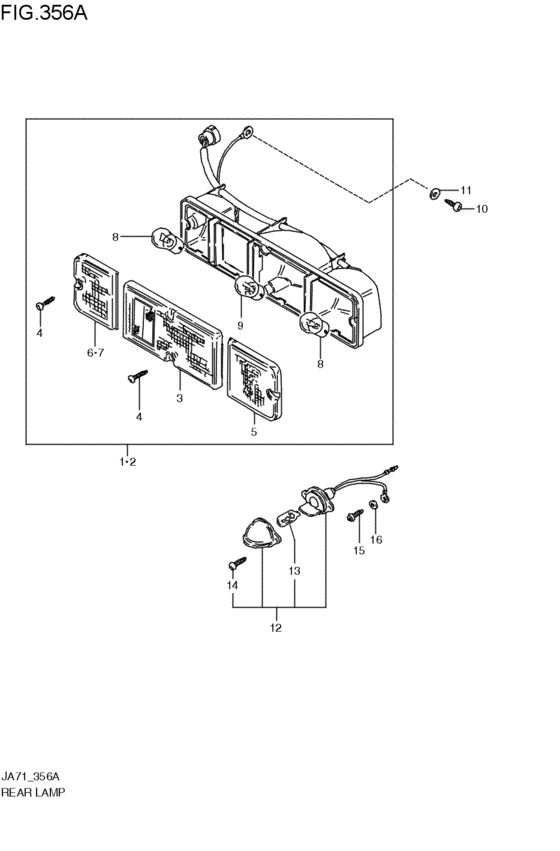

rear lamp (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35603-80002-000 LAMP ASSY,RR COMB,R1985-11-01~1987-10-01 |
35603-80002-000 |
from US $89.98 |
||
|
2
|
2
35604-80002-000 LAMP ASSY,RR COMB,L1985-11-01~1987-10-01 |
35604-80002-000 |
US $89.98 |
||
|
3
|
3
35712-80000-000 LENS,TAIL/STOP[RED] 1985-11-01~1987-10-01 |
35712-80000-000 |
from US $12.26 |
||
|
4
|
4
03112-05259-000
New Genuine Part
1985-11-01~1987-10-01 |
03112-05259-000 |
— | ||
| replacement | |||||
|
4
|
4
03112-0525B-000 SCREW1985-11-01~1987-10-01 |
03112-0525B-000 |
US $0.96 |
||
|
5
|
5
35662-80000-000 LENS,TURN SIGNAL[AMBER] 1985-11-01~1987-10-01 |
35662-80000-000 |
from US $9.25 |
||
|
6
|
6
36252-80000-000 LENS,BACKUP,RH[CLEAR] 1985-11-01~1987-10-01 |
36252-80000-000 |
from US $10.22 |
||
|
7
|
7
36272-80000-000 LENS,BACKUP,LH[CLEAR] 1985-11-01~1987-10-01 |
36272-80000-000 |
from US $8.21 |
||
|
8
|
8
09471-12056-000
Bulb (12v, 21w)
STANLEY,45752A; 1985-11-01~1987-10-01 |
09471-12056-000 |
— | ||
| replacement | |||||
|
8
|
8
09471-12045-000 BULB(12V21W)STANLEY,45752A; 1985-11-01~1987-10-01 |
09471-12045-000 |
from US $3.11 |
||
|
9
|
9
09471-12057-000
Bulb (12v, 21/5w)
STANLEY,48752B; 1985-11-01~1987-10-01 |
09471-12057-000 |
— | ||
| replacements | |||||
|
9
|
9
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,48752B; 1985-11-01~1987-10-01 |
09471-12128-000 |
from US $7.20 |
||
|
9
|
9
09471-12083-000 BULB(12V21/5W)STANLEY,48752B; 1985-11-01~1987-10-01 |
09471-12083-000 |
from US $4.14 |
||
|
10
|
10
03111-05126-000
New Genuine Part
1985-11-01~1987-10-01 |
03111-05126-000 |
— | ||
| replacement | |||||
|
10
|
10
03111-0512A-000 SCREW1985-11-01~1987-10-01 |
03111-0512A-000 |
from US $0.80 |
||
|
11
|
11
08322-21056-000
Washer
1985-11-01~1987-10-01 |
08322-21056-000 |
— | ||
| replacements | |||||
|
11
|
11
08322-0105B-000 WASHER1985-11-01~1987-10-01 |
08322-0105B-000 |
from US $0.76 |
||
|
11
|
11
08322-0105A-000 WASHERWasher, front 1985-11-01~1987-10-01 |
08322-0105A-000 |
from US $0.80 |
||
|
12
|
12
35910-80001-000
ランプアッシ,ライセンス(グレー)
グレー; 1985-11-01~1987-10-01 |
35910-80001-000 |
— | ||
| replacement | |||||
|
12
|
12
35910-80011-000 Lamp assy,licenseグレー; 1985-11-01~1987-10-01 |
35910-80011-000 |
from US $25.94 |
||
|
13
|
13
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 1985-11-01~1987-10-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 1985-11-01~1987-10-01 |
09471-12216-000 |
from US $3.02 |
||
|
14
|
14
03112-04165-000
Screw
1985-11-01~1987-10-01 |
03112-04165-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0416A-000 SCREW1985-11-01~1987-10-01 |
03111-0416A-000 |
US $0.80 |
||
|
15
|
15
03111-05126-000
New Genuine Part
1985-11-01~1987-10-01 |
03111-05126-000 |
— | ||
| replacement | |||||
|
15
|
15
03111-0512A-000 SCREW1985-11-01~1987-10-01 |
03111-0512A-000 |
from US $0.80 |
||
|
16
|
16
08322-21056-000
Washer
1985-11-01~1987-10-01 |
08322-21056-000 |
— | ||
| replacements | |||||
|
16
|
16
08322-0105B-000 WASHER1985-11-01~1987-10-01 |
08322-0105B-000 |
from US $0.76 |
||
|
16
|
16
08322-0105A-000 WASHERWasher, front 1985-11-01~1987-10-01 |
08322-0105A-000 |
from US $0.80 |
||
