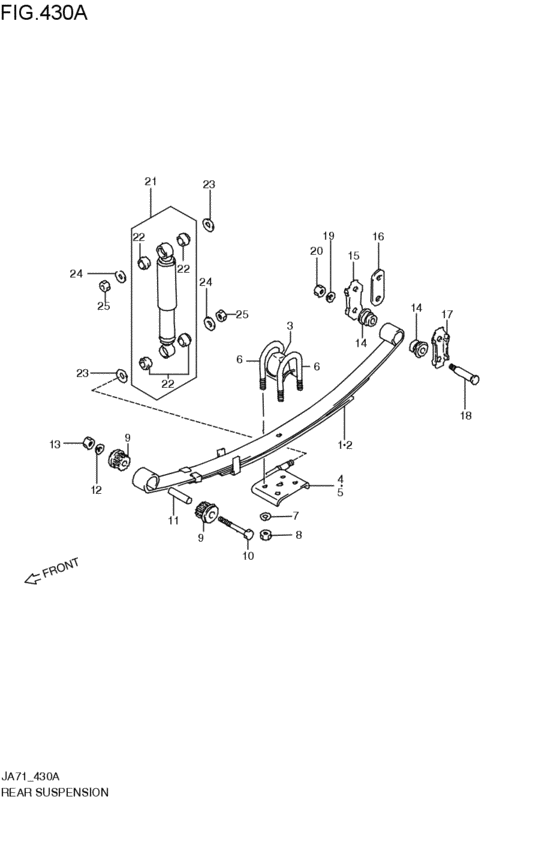

rear suspension (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41310-80030-000
スプリングアッシ,リヤ
NHK; 1985-11-01~1987-10-01 |
41310-80030-000 |
— | ||
| replacement | |||||
|
1
|
1
41310-73A10-000
Spring assy,rear,r
NHK; 1985-11-01~1987-10-01 |
41310-73A10-000 |
— | ||
|
2
|
2
41310-80740-000
スプリングアッシ,リヤ,レフト
NHK; 1985-11-01~1987-10-01 |
41310-80740-000 |
— | ||
| replacement | |||||
|
2
|
2
41310-73A20-000
SPRING ASSY,REAR,L
NHK; 1985-11-01~1987-10-01 |
41310-73A20-000 |
— | ||
|
3
|
3
42150-61041-000
バンパ,スプリング
1985-11-01~1987-10-01 |
42150-61041-000 |
— | ||
| replacement | |||||
|
3
|
3
42150-61020-000 BUMPER,RR SPRING1985-11-01~1987-10-01 |
42150-61020-000 |
from US $18.29 |
||
|
4
|
4
41430-80001-000 SEAT,REAR SPRING,Rライト; 1985-11-01~1987-10-01 |
41430-80001-000 |
US $46.40 |
||
|
5
|
5
41440-80001-000 SEAT,REAR SPRING,Lレフト; 1985-11-01~1987-10-01 |
41440-80001-000 |
US $51.20 |
||
|
6
|
6
41411-80201-000 U-BOLT,RR SPRING1985-11-01~1987-10-01 |
41411-80201-000 |
from US $5.18 |
||
|
7
|
7
08321-31103-000
ロックワッシャ
1985-11-01~1987-10-01 |
08321-31103-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0110A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0110A-000 |
from US $0.96 |
||
|
7
|
7
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1985-11-01~1987-10-01 |
08321-0110B-000 |
from US $0.96 |
||
|
8
|
8
09140-10034-000 NUT1985-11-01~1987-10-01 |
09140-10034-000 |
US $1.12 |
||
|
9
|
9
41331-62020-000 BUSH1985-11-01~1987-10-01 |
41331-62020-000 |
from US $17.91 |
||
|
10
|
10
09100-12025-000
ボルト,12X92
1985-11-01~1987-10-01 |
09100-12025-000 |
— | ||
| replacements | |||||
|
10
|
10
09103-12044-000 BOLT(12X87)1985-11-01~1987-10-01 |
09103-12044-000 |
from US $3.02 |
||
|
10
|
10
09103-12048-000 BOLT(12X90)1985-11-01~1987-10-01 |
09103-12048-000 |
from US $6.17 |
||
|
11
|
11
09180-12035-000 SPACER(12X16X64.5)1985-11-01~1987-10-01 |
09180-12035-000 |
from US $2.24 |
||
|
12
|
12
08321-31123-000 WASHER LOCK1985-11-01~1987-10-01 |
08321-31123-000 |
US $0.86 |
||
| replacement | |||||
|
12
|
12
08321-0112A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0112A-000 |
from US $0.76 |
||
|
13
|
13
08310-12123-000 NUT1985-11-01~1987-10-01 |
08310-12123-000 |
US $1.33 |
||
| replacement | |||||
|
13
|
13
08310-0012A-000 NUT1985-11-01~1987-10-01 |
08310-0012A-000 |
from US $0.76 |
||
|
14
|
14
09305-13002-000 BUSH1985-11-01~1987-10-01 |
09305-13002-000 |
from US $1.64 |
||
|
15
|
15
41461-77300-000 PLATE,INNER1985-11-01~1987-10-01 |
41461-77300-000 |
from US $3.71 |
||
|
16
|
16
41461-83300-000 PLATE,SPRING SHACKLE INNER1985-11-01~1987-10-01 |
41461-83300-000 |
from US $2.70 |
||
|
17
|
17
41462-77300-000 PLATE,OUTER1985-11-01~1987-10-01 |
41462-77300-000 |
from US $3.11 |
||
|
18
|
18
41463-82000-000 PIN,SHACKLE1985-11-01~1987-10-01 |
41463-82000-000 |
from US $4.37 |
||
|
19
|
19
08321-31103-000
ロックワッシャ
1985-11-01~1987-10-01 |
08321-31103-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0110A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0110A-000 |
from US $0.96 |
||
|
19
|
19
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1985-11-01~1987-10-01 |
08321-0110B-000 |
from US $0.96 |
||
|
20
|
20
08310-12103-000 Nut1985-11-01~1987-10-01 |
08310-12103-000 |
US $0.68 |
||
| replacements | |||||
|
20
|
20
08310-0010B-000 NUT1985-11-01~1987-10-01 |
08310-0010B-000 |
from US $0.83 |
||
|
20
|
20
08310-0010A-000 NUT1985-11-01~1987-10-01 |
08310-0010A-000 |
from US $0.80 |
||
|
21
|
21
41700-80001-000 ABSORBER ASSY,RR SHOCK1985-11-01~1987-10-01 |
41700-80001-000 |
from US $53.80 |
||
|
22
|
22
09320-16006-000
ブッシュ
1985-11-01~1987-10-01 |
09320-16006-000 |
— | ||
| replacement | |||||
|
22
|
22
41781-52010-000 BUSHING,SHOCK ABSORBER NO.11985-11-01~1987-10-01 |
41781-52010-000 |
US $2.24 |
||
|
23
|
23
08322-21163-000
New Genuine Part
1985-11-01~1987-10-01 |
08322-21163-000 |
— | ||
| replacement | |||||
|
23
|
23
08322-0116A-000 WASHER1985-11-01~1987-10-01 |
08322-0116A-000 |
from US $0.80 |
||
|
24
|
24
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) 1985-11-01~1987-10-01 |
09160-12073-000 |
from US $0.79 |
||
|
25
|
25
08310-12123-000 NUT1985-11-01~1987-10-01 |
08310-12123-000 |
US $1.33 |
||
| replacement | |||||
|
25
|
25
08310-0012A-000 NUT1985-11-01~1987-10-01 |
08310-0012A-000 |
from US $0.76 |
||
