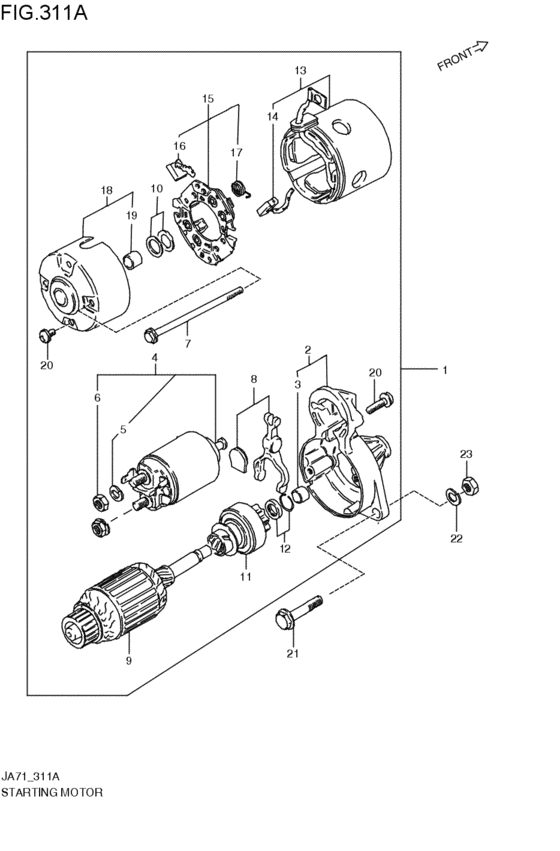

starting motor (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-73036-000
SELF STARTER ASSY
1985-11-01~1987-10-01 |
31100-73036-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-80X51-REM
Starting motor
1985-11-01~1987-10-01 |
31100-80X51-REM |
— | ||
|
1
|
1
31100-80X51-000 MOTOR ASSY,STARTING1985-11-01~1987-10-01 |
31100-80X51-000 |
from US $454.12 |
||
|
2
|
2
31151-73033-000
ブラケット,フロント
1985-11-01~1987-10-01 |
31151-73033-000 |
— | ||
|
3
|
3
31152-79030-000 BEARING,FRONT1985-11-01~1987-10-01 |
31152-79030-000 |
from US $5.11 |
||
|
4
|
4
31220-82230-000
SWITCH ASSY
1985-11-01~1987-10-01 |
31220-82230-000 |
— | ||
| replacement | |||||
|
4
|
4
31220-84030-000 SWITCH ASSY1985-11-01~1987-10-01 |
31220-84030-000 |
from US $165.11 |
||
|
5
|
5
08321-21088-000
Lock washer
1985-11-01~1987-10-01 |
08321-21088-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01087-000 WASHER,LOCKWasher, lock 1985-11-01~1987-10-01 |
08321-01087-000 |
from US $0.76 |
||
|
6
|
6
08310-12088-000
Nut
1985-11-01~1987-10-01 |
08310-12088-000 |
— | ||
| replacement | |||||
|
6
|
6
08310-00087-000 NUT1985-11-01~1987-10-01 |
08310-00087-000 |
from US $0.76 |
||
|
7
|
7
31261-79030-000
ボルト
1985-11-01~1987-10-01 |
31261-79030-000 |
— | ||
| replacement | |||||
|
7
|
7
31261-82130-000 Bolt1985-11-01~1987-10-01 |
31261-82130-000 |
from US $1.89 |
||
|
8
|
8
31191-79030-000 LEVER ASSY1985-11-01~1987-10-01 |
31191-79030-000 |
US $14.46 |
||
|
9
|
9
31311-79030-000
アマチュア
1985-11-01~1987-02-01 |
31311-79030-000 |
— | ||
|
9
|
9
31311-86131-000 ARMATURE1987-02-01~1987-10-01 |
31311-86131-000 |
US $314.64 |
||
|
10
|
10
31361-79030-000 WASHER1985-11-01~1987-10-01 |
31361-79030-000 |
from US $5.20 |
||
|
11
|
11
31320-79030-000
CLUTCH ASSY
1985-11-01~1987-02-01 |
31320-79030-000 |
— | ||
|
11
|
11
31320-86140-000 CLUTCH ASSY1987-02-01~1987-10-01 |
31320-86140-000 |
US $111.50 |
||
|
12
|
12
31313-80090-000 RING SET1985-11-01~1987-10-01 |
31313-80090-000 |
from US $4.25 |
||
|
13
|
13
31110-79030-000
ヨークアッシ
1985-11-01~1987-02-01 |
31110-79030-000 |
— | ||
|
13
|
13
31110-86140-000
YOKE ASSY
1987-02-01~1987-10-01 |
31110-86140-000 |
— | ||
|
14
|
14
31131-80090-000 BRUSH(+)1985-11-01~1987-10-01 |
31131-80090-000 |
from US $8.84 |
||
|
15
|
15
31173-79030-000
HOLDER BRUSH
1985-11-01~1987-10-01 |
31173-79030-000 |
— | ||
| replacement | |||||
|
15
|
15
31173-82130-000 HOLDER ASSY,BRUSH1985-11-01~1987-10-01 |
31173-82130-000 |
from US $43.20 |
||
|
16
|
16
31132-80090-000 BRUSH(-)1985-11-01~1987-10-01 |
31132-80090-000 |
from US $8.60 |
||
|
17
|
17
31135-72030-000
SPRING BRUSH
1985-11-01~1987-10-01 |
31135-72030-000 |
— | ||
|
18
|
18
31170-79030-000
ハウジングアッシ
1985-11-01~1987-10-01 |
31170-79030-000 |
— | ||
|
19
|
19
31172-79030-000 BUSH1985-11-01~1987-10-01 |
31172-79030-000 |
from US $3.38 |
||
|
20
|
20
31136-79030-000 SCREW ASSY1985-11-01~1987-10-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
20
|
20
31175-79030-000 Screw Set1985-11-01~1987-10-01 |
31175-79030-000 |
US $8.16 |
||
|
21
|
21
01517-08556-000
Bolt 8x55 (l:55)
1985-11-01~1987-10-01 |
01517-08556-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0855B-000 Bolt1985-11-01~1987-10-01 |
01550-0855B-000 |
from US $1.44 |
||
|
21
|
21
01550-0855A-000 BoltBolt, gear holder 1985-11-01~1987-10-01 |
01550-0855A-000 |
from US $1.22 |
||
|
22
|
22
08321-21086-000
Wsherlck8.2x15.2x1.6
1985-11-01~1987-10-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
22
|
22
08321-0108B-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0108B-000 |
from US $0.76 |
||
|
22
|
22
08321-0108A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0108A-000 |
from US $0.88 |
||
|
23
|
23
08310-12086-000
NUT
1985-11-01~1987-10-01 |
08310-12086-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0008A-000 NUTNut, bead stopper 1985-11-01~1987-10-01 |
08310-0008A-000 |
from US $0.76 |
||
|
23
|
23
08310-0008B-000 NUT1985-11-01~1987-10-01 |
08310-0008B-000 |
from US $0.96 |
||
