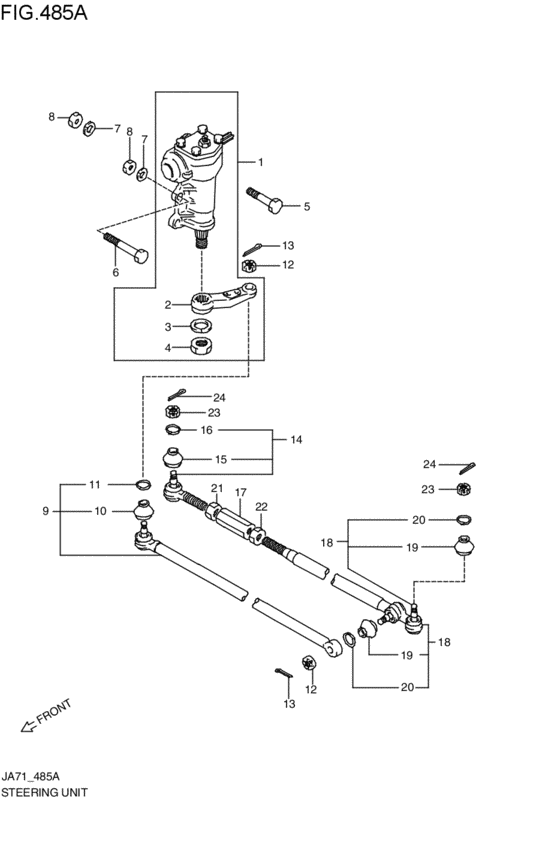

steering unit (1985-11-01~1987-10-01) Diagram Suzuki JIMNY
- Year
- 1985 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- body
- U
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600-80022-000 BOX ASSY,STEERING GEAR (MANUAL)1985-11-01~1987-10-01 |
48600-80022-000 |
US $646.40 |
||
|
2
|
2
48671-80011-000 ARM,PITMAN1985-11-01~1987-10-01 |
48671-80011-000 |
from US $44.33 |
||
|
3
|
3
08321-21208-000
Washer,lock 20m
1985-11-01~1987-10-01 |
08321-21208-000 |
— | ||
| replacement | |||||
|
3
|
3
48644-80010-000 WASHER,PITMAN ARM LOCK1985-11-01~1987-10-01 |
48644-80010-000 |
from US $1.92 |
||
|
4
|
4
48674-63240-000 NUT1985-11-01~1987-10-01 |
48674-63240-000 |
from US $3.98 |
||
|
5
|
5
01107-12703-000
Bolt 12x70
1985-11-01~1987-10-01 |
01107-12703-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-1270A-000 Bolt1985-11-01~1987-10-01 |
01500-1270A-000 |
US $1.60 |
||
|
6
|
6
01107-12903-000
ボルト
1985-11-01~1987-10-01 |
01107-12903-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1290A-000 Bolt1985-11-01~1987-10-01 |
01500-1290A-000 |
US $1.82 |
||
|
7
|
7
08321-31123-000 WASHER LOCK1985-11-01~1987-10-01 |
08321-31123-000 |
US $0.86 |
||
| replacement | |||||
|
7
|
7
08321-0112A-000 WASHER,LOCK1985-11-01~1987-10-01 |
08321-0112A-000 |
from US $0.76 |
||
|
8
|
8
08310-12123-000 NUT1985-11-01~1987-10-01 |
08310-12123-000 |
US $1.33 |
||
| replacement | |||||
|
8
|
8
08310-0012A-000 NUT1985-11-01~1987-10-01 |
08310-0012A-000 |
from US $0.76 |
||
|
9
|
9
48900-73A00-000
ロッドアッシ,ステアリングドラッグ
1985-11-01~1987-10-01 |
48900-73A00-000 |
— | ||
| replacement | |||||
|
9
|
9
48900-82C00-000 ROD ASSY,STRG DRAG1985-11-01~1987-10-01 |
48900-82C00-000 |
US $358.40 |
||
|
10
|
10
48806-80000-000
BOOT SET
1985-11-01~1987-10-01 |
48806-80000-000 |
— | ||
| replacements | |||||
|
10
|
10
48806-80001-000
Boot Set
1985-11-01~1987-10-01 |
48806-80001-000 |
— | ||
|
10
|
10
48800-80810-000 Boot Set1985-11-01~1987-10-01 |
48800-80810-000 |
US $32 |
||
|
11
|
11
09401-27402-000 CLIP1985-11-01~1987-10-01 |
09401-27402-000 |
from US $1.04 |
||
|
12
|
12
08314-41123-000 Nut1985-11-01~1987-10-01 |
08314-41123-000 |
US $1.42 |
||
| replacement | |||||
|
12
|
12
08314-4012A-000 NUT1985-11-01~1987-10-01 |
08314-4012A-000 |
from US $0.99 |
||
|
13
|
13
04111-30306-000
Cotter pin
1985-11-01~1987-10-01 |
04111-30306-000 |
— | ||
| replacement | |||||
|
13
|
13
04111-3030A-000 PIN1985-11-01~1987-10-01 |
04111-3030A-000 |
from US $0.76 |
||
|
14
|
14
48810-60A00-000
END TIE ROD STEERING
ミギネジ; 1985-11-01~1987-10-01 |
48810-60A00-000 |
— | ||
| replacement | |||||
|
14
|
14
48810-81A01-000 END,DRAG ROD,Lミギネジ; 1985-11-01~1987-10-01 |
48810-81A01-000 |
from US $47.39 |
||
|
15
|
15
48806-80000-000
BOOT SET
1985-11-01~1987-10-01 |
48806-80000-000 |
— | ||
| replacements | |||||
|
15
|
15
48806-80001-000
Boot Set
1985-11-01~1987-10-01 |
48806-80001-000 |
— | ||
|
15
|
15
48800-80810-000 Boot Set1985-11-01~1987-10-01 |
48800-80810-000 |
US $32 |
||
|
16
|
16
09401-27402-000 CLIP1985-11-01~1987-10-01 |
09401-27402-000 |
from US $1.04 |
||
|
17
|
17
48836-63001-000 CONNECTOR,TIE-ROD END1985-11-01~1987-10-01 |
48836-63001-000 |
from US $23.58 |
||
|
18
|
18
48870-80002-000
TIE-ROD,STEERING
1985-11-01~1987-10-01 |
48870-80002-000 |
— | ||
|
19
|
19
48806-80000-000
BOOT SET
1985-11-01~1987-10-01 |
48806-80000-000 |
— | ||
| replacements | |||||
|
19
|
19
48806-80001-000
Boot Set
1985-11-01~1987-10-01 |
48806-80001-000 |
— | ||
|
19
|
19
48800-80810-000 Boot Set1985-11-01~1987-10-01 |
48800-80810-000 |
US $32 |
||
|
20
|
20
09401-27402-000 CLIP1985-11-01~1987-10-01 |
09401-27402-000 |
from US $1.04 |
||
|
21
|
21
09140-16022-000 NUTミギネジ; 1985-11-01~1987-10-01 |
09140-16022-000 |
from US $2.34 |
||
|
22
|
22
09140-16023-000 NUTヒダリネジ; 1985-11-01~1987-10-01 |
09140-16023-000 |
from US $2.25 |
||
|
23
|
23
08314-41123-000 Nut1985-11-01~1987-10-01 |
08314-41123-000 |
US $1.42 |
||
| replacement | |||||
|
23
|
23
08314-4012A-000 NUT1985-11-01~1987-10-01 |
08314-4012A-000 |
from US $0.99 |
||
|
24
|
24
04111-30306-000
Cotter pin
1985-11-01~1987-10-01 |
04111-30306-000 |
— | ||
| replacement | |||||
|
24
|
24
04111-3030A-000 PIN1985-11-01~1987-10-01 |
04111-3030A-000 |
from US $0.76 |
||
