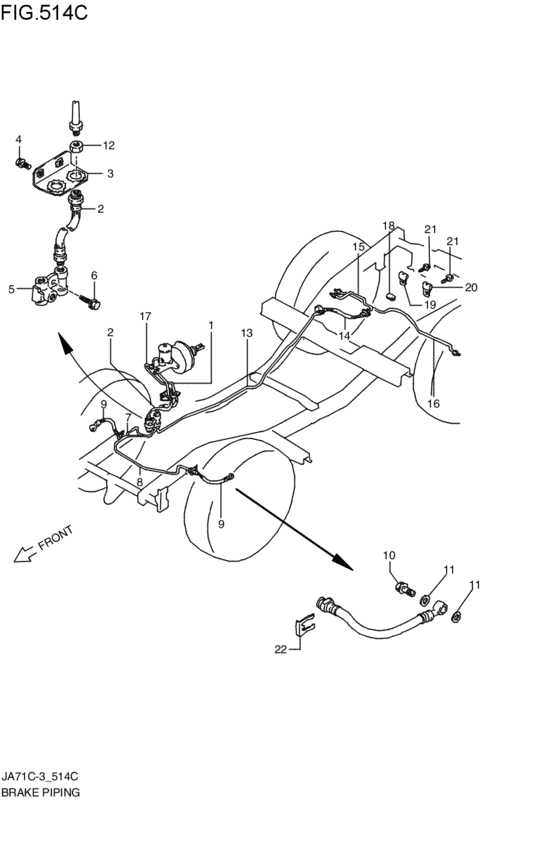

brakes piping (1987-11-01~1990-01-01) Diagram Suzuki JIMNY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- YUSEI
- type
- TYPE3
- body
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-83601-000
パイプ,ブレーキ,NO.1
TYPE3; 1987-11-01~1989-07-01 |
51410-83601-000 |
— | ||
|
2
|
2
51570-70A30-000 HOSE,MA CYL FLEXIBLE1987-11-01~1990-01-01 |
51570-70A30-000 |
US $10.79 |
||
|
3
|
3
51712-83001-000 BRACKET,MA CYL HOSE1987-11-01~1990-01-01 |
51712-83001-000 |
US $2.72 |
||
|
4
|
4
01517-06163-000
Bolt
1987-11-01~1990-01-01 |
01517-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0616B-000 Bolt1987-11-01~1990-01-01 |
01550-0616B-000 |
from US $0.76 |
||
|
4
|
4
01550-0616A-000 Bolt1987-11-01~1990-01-01 |
01550-0616A-000 |
from US $0.76 |
||
|
5
|
5
51640-80000-000 JOINT,5WAY BRAKE1987-11-01~1990-01-01 |
51640-80000-000 |
US $64.77 |
||
|
6
|
6
01517-06253-000
ボルト
1987-11-01~1990-01-01 |
01517-06253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0625A-000 BoltBolt 1987-11-01~1990-01-01 |
01550-0625A-000 |
from US $0.96 |
||
|
6
|
6
01550-0625B-000 BoltBolt, head cover 1987-11-01~1990-01-01 |
01550-0625B-000 |
from US $0.91 |
||
|
7
|
7
51420-73A01-000
パイプ,ブレーキ,NO.2
1987-11-01~1990-01-01 |
51420-73A01-000 |
— | ||
|
8
|
8
51430-73A01-000
パイプ,ブレーキ,NO.3
1987-11-01~1990-01-01 |
51430-73A01-000 |
— | ||
|
9
|
9
51540-80151-000 HOSE,FR BRAKE FLEXIBLE1987-11-01~1990-01-01 |
51540-80151-000 |
from US $13.83 |
||
|
10
|
10
09360-10026-000 Union bolt1987-11-01~1990-01-01 |
09360-10026-000 |
from US $2.18 |
||
|
11
|
11
09161-10009-000 WASHER(10X15X1.5)Lock washer 1987-11-01~1990-01-01 |
09161-10009-000 |
from US $1.06 |
||
|
12
|
12
09140-16007-000 NUT1987-11-01~1990-01-01 |
09140-16007-000 |
US $2.08 |
||
|
13
|
13
51460-73A00-000
パイプ,ブレーキ,NO.6
TYPE3; 1987-11-01~1989-07-01 |
51460-73A00-000 |
— | ||
|
13
|
13
51460-73A10-000
パイプ,ブレーキ,NO.6
TYPE3; 1988-08-01~1989-02-01 |
51460-73A10-000 |
— | ||
|
13
|
13
51460-73A11-000
パイプ,ブレーキ,NO.6
TYPE3; 1989-02-01~1989-07-01 |
51460-73A11-000 |
— | ||
|
14
|
14
51560-83031-000 HOSE,RR BRAKE FLEXIBLE1987-11-01~1990-01-01 |
51560-83031-000 |
from US $20 |
||
|
15
|
15
51470-73A00-000
パイプ,ブレーキ,NO.7
1987-11-01~1990-01-01 |
51470-73A00-000 |
— | ||
|
16
|
16
51480-73A00-000
パイプ,ブレーキ,NO.8
1987-11-01~1990-01-01 |
51480-73A00-000 |
— | ||
|
17
|
17
51520-73A00-000
パイプ,ブレーキ,NO.12
TYPE3; 1987-11-01~1989-07-01 |
51520-73A00-000 |
— | ||
|
18
|
18
51755-67000-000
New Genuine Part
TYPE3; 1987-11-01~1989-07-01 |
51755-67000-000 |
— | ||
| replacement | |||||
|
18
|
18
51755-77200-000 PROTECTOR,BRAKE PIPETYPE3; 1987-11-01~1989-07-01 |
51755-77200-000 |
US $4.56 |
||
|
19
|
19
09403-06401-000 CLAMP1987-11-01~1990-01-01 |
09403-06401-000 |
from US $1.08 |
||
|
20
|
20
09403-06404-000 CLAMP1987-11-01~1990-01-01 |
09403-06404-000 |
US $2.72 |
||
|
21
|
21
09132-06006-000 SCREW(6X12)1987-11-01~1990-01-01 |
09132-06006-000 |
from US $0.88 |
||
|
22
|
22
09383-13001-000 E RING1987-11-01~1990-01-01 |
09383-13001-000 |
from US $0.70 |
||
| replacement | |||||
|
22
|
22
09383-13003-000 E-RING1987-11-01~1990-01-01 |
09383-13003-000 |
from US $1.46 |
||
