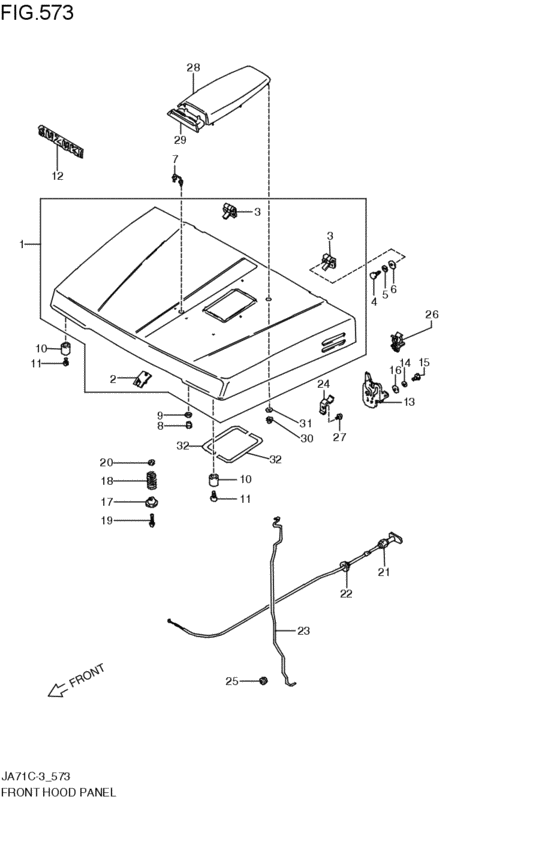

front hood (1987-11-01~1990-01-01) Diagram Suzuki JIMNY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- YUSEI
- type
- TYPE3
- body
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58300-80100-000 PANEL ASSY,FRONT HOODV:Z; 1987-11-01~1990-01-01 |
58300-80100-000 |
from US $167.27 |
||
|
2
|
2
58370-80000-000 HOOK,HOOD LOCK1987-11-01~1990-01-01 |
58370-80000-000 |
from US $2.59 |
||
|
3
|
3
58410-80010-000 HINGE,HOOD1987-11-01~1990-01-01 |
58410-80010-000 |
from US $15.50 |
||
|
4
|
4
01107-06167-000
Bolt
1987-11-01~1990-01-01 |
01107-06167-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-06167-000 BoltBolt, fuel cooler 1987-11-01~1990-01-01 |
01500-06167-000 |
from US $0.72 |
||
|
5
|
5
08321-21067-000
Lock washer
1987-11-01~1990-01-01 |
08321-21067-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-01067-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-01067-000 |
from US $0.65 |
||
|
6
|
6
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) 1987-11-01~1990-01-01 |
09160-06019-000 |
from US $0.41 |
||
|
10
|
10
09320-06011-000 CUSHION1987-11-01~1990-01-01 |
09320-06011-000 |
from US $3.89 |
||
|
11
|
11
02112-06163-000
Screw
1987-11-01~1990-01-01 |
02112-06163-000 |
— | ||
| replacements | |||||
|
11
|
11
02112-0616B-000 SCREW1987-11-01~1990-01-01 |
02112-0616B-000 |
from US $0.96 |
||
|
11
|
11
02112-0616A-000 SCREW1987-11-01~1990-01-01 |
02112-0616A-000 |
from US $0.76 |
||
|
12
|
12
77814-80000-8VP EMBLEM,SUZUKIシルバ-/ブラック; V:Z,C; 1987-11-01~1990-01-01 |
77814-80000-8VP |
from US $25.61 |
||
|
13
|
13
82110-80004-000
ラッチ,フード
1987-11-01~1990-01-01 |
82110-80004-000 |
— | ||
| replacement | |||||
|
13
|
13
82110-80005-000 LATCH,HOOD1987-11-01~1990-01-01 |
82110-80005-000 |
US $110.21 |
||
|
14
|
14
08321-21067-000
Lock washer
1987-11-01~1990-01-01 |
08321-21067-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-01067-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-01067-000 |
from US $0.65 |
||
|
15
|
15
09128-06031-000
スクリュ
1987-11-01~1990-01-01 |
09128-06031-000 |
— | ||
| replacement | |||||
|
15
|
15
09128-06044-000 SCREW(6X10)Screw, oil level (6x10) 1987-11-01~1990-01-01 |
09128-06044-000 |
from US $1.22 |
||
|
16
|
16
09160-06028-000 WASHER(6.5X18X1)Washer 1987-11-01~1990-01-01 |
09160-06028-000 |
from US $0.25 |
||
|
17
|
17
82171-80100-000 SUPPORT,OPEN SPRING1987-11-01~1990-01-01 |
82171-80100-000 |
from US $8.37 |
||
|
18
|
18
09440-27007-000 SPRING1987-11-01~1990-01-01 |
09440-27007-000 |
from US $1.69 |
||
|
19
|
19
02112-06404-000
Screw
1987-11-01~1990-01-01 |
02112-06404-000 |
— | ||
| replacements | |||||
|
19
|
19
02112-0640B-000 SCREW1987-11-01~1990-01-01 |
02112-0640B-000 |
US $0.80 |
||
|
19
|
19
02112-0640A-000 SCREW1987-11-01~1990-01-01 |
02112-0640A-000 |
from US $0.80 |
||
|
20
|
20
08310-12066-000
Nut
1987-11-01~1990-01-01 |
08310-12066-000 |
— | ||
| replacements | |||||
|
20
|
20
08310-0006B-000 NUTNut gear shift link rod 1987-11-01~1990-01-01 |
08310-0006B-000 |
from US $0.76 |
||
|
20
|
20
08310-0006A-000 NUT1987-11-01~1990-01-01 |
08310-0006A-000 |
from US $0.76 |
||
|
21
|
21
82160-80011-000 CABLE,HOOD LATCH RELEASE1987-11-01~1990-01-01 |
82160-80011-000 |
from US $11.50 |
||
|
22
|
22
82191-50E00-000 GROMMET,LATCH RELEASE CABLE1987-11-01~1990-01-01 |
82191-50E00-000 |
from US $2.16 |
||
|
23
|
23
72442-80010-000
ステー,フロントフード
1987-11-01~1990-01-01 |
72442-80010-000 |
— | ||
|
24
|
24
72443-80010-000
BRACKET,HOOD STAY
1987-11-01~1990-01-01 |
72443-80010-000 |
— | ||
|
25
|
25
09308-09017-000 GROMMET1987-11-01~1990-01-01 |
09308-09017-000 |
from US $1.44 |
||
|
26
|
26
09403-09309-000 CLAMPClamp, switch housing 1987-11-01~1990-01-01 |
09403-09309-000 |
from US $1.08 |
||
|
27
|
27
02142-06103-000
Screw
1987-11-01~1990-01-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
27
|
27
02142-0610B-000 SCREWStopper, cl rlse cam shaft 1987-11-01~1990-01-01 |
02142-0610B-000 |
from US $0.76 |
||
|
27
|
27
02142-0610A-000 SCREW1987-11-01~1990-01-01 |
02142-0610A-000 |
from US $0.96 |
||
|
28
|
28
72491-73A00-061
インテーク,フロントフード(グレー)
YUSEI; 1987-11-01~1990-01-01 |
72491-73A00-061 |
— | ||
| replacement | |||||
|
28
|
28
72491-73A00-000
INTAKE,FR HOOD
YUSEI; 1987-11-01~1990-01-01 |
72491-73A00-000 |
— | ||
|
29
|
29
72492-73A00-000
プルーフ,フロントフード
1987-11-01~1990-01-01 |
72492-73A00-000 |
— | ||
|
30
|
30
09148-07001-000 NUT1987-11-01~1990-01-01 |
09148-07001-000 |
US $1.28 |
||
|
31
|
31
09161-06022-000 WASHER(6.2X19X3)1987-11-01~1990-01-01 |
09161-06022-000 |
from US $1.17 |
||
|
32
|
32
72493-73A00-000
FILM,FR HOOD
1987-11-01~1990-01-01 |
72493-73A00-000 |
— | ||
