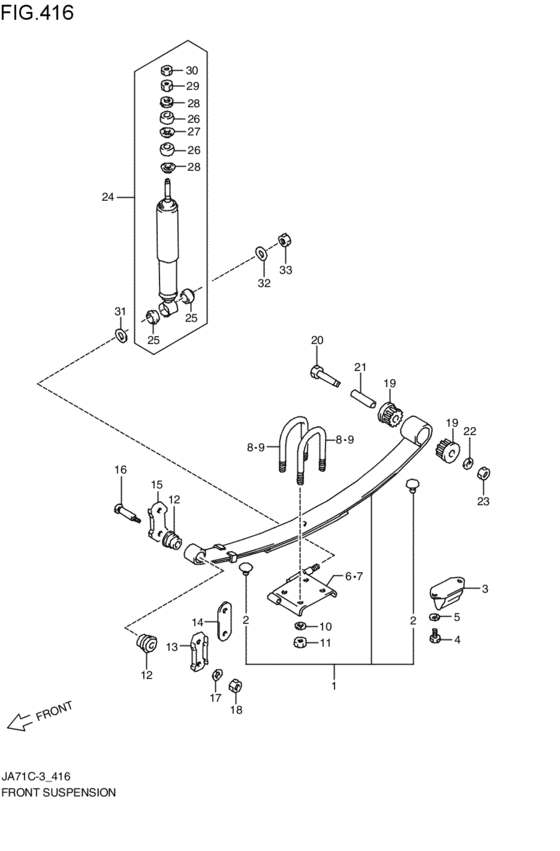

front suspension (1987-11-01~1990-01-01) Diagram Suzuki JIMNY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- YUSEI
- type
- TYPE3
- body
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41110-73A00-000
スプリングアッシ,フロント
NHK; 1987-11-01~1990-01-01 |
41110-73A00-000 |
— | ||
|
2
|
2
41118-70A00-000
SILENCER SPRING
1987-11-01~1990-01-01 |
41118-70A00-000 |
— | ||
| replacement | |||||
|
2
|
2
41117-70A10-000 SILENCER,SPRING1987-11-01~1990-01-01 |
41117-70A10-000 |
from US $4.64 |
||
|
3
|
3
42110-80010-000 BUMPER,FR SPRING1987-11-01~1990-01-01 |
42110-80010-000 |
from US $14.81 |
||
|
4
|
4
01107-08163-000
Bolt m8x1.25x16
1987-11-01~1990-01-01 |
01107-08163-000 |
— | ||
| replacements | |||||
|
4
|
4
01500-0816B-000 BoltBolt 1987-11-01~1990-01-01 |
01500-0816B-000 |
from US $0.96 |
||
|
4
|
4
01500-08163-000
Bolt
1987-11-01~1990-01-01 |
01500-08163-000 |
— | ||
|
5
|
5
08321-21083-000
Washr,lk8.2x15.
1987-11-01~1990-01-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0108B-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-0108B-000 |
from US $0.76 |
||
|
5
|
5
08321-0108A-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-0108A-000 |
from US $0.88 |
||
|
6
|
6
41230-73A00-000
シート,フロントスプリング,ライト
1987-11-01~1990-01-01 |
41230-73A00-000 |
— | ||
|
7
|
7
41240-73A00-000 SEAT,FR SPRING,L1987-11-01~1990-01-01 |
41240-73A00-000 |
US $43.79 |
||
|
8
|
8
41411-80011-000
Uボルト,スプリング,ライト
1987-11-01~1990-01-01 |
41411-80011-000 |
— | ||
| replacement | |||||
|
8
|
8
41411-80012-000 U-BOLT,SPRING,R1987-11-01~1990-01-01 |
41411-80012-000 |
US $16.72 |
||
|
9
|
9
41411-80201-000 U-BOLT,RR SPRING1987-11-01~1990-01-01 |
41411-80201-000 |
from US $5.18 |
||
|
10
|
10
08321-31103-000
ロックワッシャ
1987-11-01~1990-01-01 |
08321-31103-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0110A-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-0110A-000 |
from US $0.96 |
||
|
10
|
10
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1987-11-01~1990-01-01 |
08321-0110B-000 |
from US $0.96 |
||
|
11
|
11
09140-10034-000 NUT1987-11-01~1990-01-01 |
09140-10034-000 |
US $1.12 |
||
|
12
|
12
09305-13002-000 BUSH1987-11-01~1990-01-01 |
09305-13002-000 |
from US $1.55 |
||
|
13
|
13
41461-77300-000 PLATE,INNER1987-11-01~1990-01-01 |
41461-77300-000 |
from US $3.71 |
||
|
14
|
14
41461-83300-000 PLATE,SPRING SHACKLE INNER1987-11-01~1990-01-01 |
41461-83300-000 |
from US $2.70 |
||
|
15
|
15
41462-77300-000 PLATE,OUTER1987-11-01~1990-01-01 |
41462-77300-000 |
from US $3.11 |
||
|
16
|
16
41463-82000-000 PIN,SHACKLE1987-11-01~1990-01-01 |
41463-82000-000 |
from US $4.37 |
||
|
17
|
17
08321-31103-000
ロックワッシャ
1987-11-01~1990-01-01 |
08321-31103-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0110A-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-0110A-000 |
from US $0.96 |
||
|
17
|
17
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1987-11-01~1990-01-01 |
08321-0110B-000 |
from US $0.96 |
||
|
18
|
18
08310-12103-000 Nut1987-11-01~1990-01-01 |
08310-12103-000 |
US $0.61 |
||
| replacements | |||||
|
18
|
18
08310-0010B-000 NUT1987-11-01~1990-01-01 |
08310-0010B-000 |
from US $0.83 |
||
|
18
|
18
08310-0010A-000 NUT1987-11-01~1990-01-01 |
08310-0010A-000 |
from US $0.80 |
||
|
19
|
19
41331-62020-000 BUSH1987-11-01~1990-01-01 |
41331-62020-000 |
from US $17.91 |
||
|
20
|
20
09100-12059-000
ボルト,12X92
1987-11-01~1990-01-01 |
09100-12059-000 |
— | ||
| replacements | |||||
|
20
|
20
09103-12044-000 BOLT(12X87)1987-11-01~1990-01-01 |
09103-12044-000 |
from US $3.02 |
||
|
20
|
20
09103-12048-000 BOLT(12X90)1987-11-01~1990-01-01 |
09103-12048-000 |
from US $6.17 |
||
|
21
|
21
09180-12035-000 SPACER(12X16X64.5)1987-11-01~1990-01-01 |
09180-12035-000 |
from US $2.24 |
||
|
22
|
22
08321-31123-000 WASHER LOCK1987-11-01~1990-01-01 |
08321-31123-000 |
US $0.86 |
||
| replacement | |||||
|
22
|
22
08321-0112A-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-0112A-000 |
from US $0.76 |
||
|
23
|
23
08310-12123-000 NUT1987-11-01~1990-01-01 |
08310-12123-000 |
US $1.33 |
||
| replacement | |||||
|
23
|
23
08310-0012A-000 NUT1987-11-01~1990-01-01 |
08310-0012A-000 |
from US $0.76 |
||
|
24
|
24
41600-70A00-000
アブソーバアッシ,ショック,フロント
C,V:Z; 1987-11-01~1990-01-01 |
41600-70A00-000 |
— | ||
| replacements | |||||
|
24
|
24
41600-70A01-000 ABSORBER ASSY,FR SHOCKC,V:Z; 1987-11-01~1990-01-01 |
41600-70A01-000 |
from US $80.89 |
||
|
24
|
24
08310-0010B-000 NUTC,V:Z; 1987-11-01~1990-01-01 |
08310-0010B-000 |
from US $0.83 |
||
|
24
|
24
08310-0010A-000 NUTC,V:Z; 1987-11-01~1990-01-01 |
08310-0010A-000 |
from US $0.80 |
||
|
24
|
24
08310-00103-000
Nut
C,V:Z; 1987-11-01~1990-01-01 |
08310-00103-000 |
— | ||
|
25
|
25
09320-16006-000
ブッシュ
1987-11-01~1990-01-01 |
09320-16006-000 |
— | ||
| replacement | |||||
|
25
|
25
41781-52010-000 BUSHING,SHOCK ABSORBER NO.11987-11-01~1990-01-01 |
41781-52010-000 |
US $2.24 |
||
|
26
|
26
09320-10024-000 CUSHION1987-11-01~1990-01-01 |
09320-10024-000 |
from US $3.33 |
||
|
27
|
27
09169-15002-000 WASHER1987-11-01~1990-01-01 |
09169-15002-000 |
from US $0.34 |
||
|
28
|
28
09165-10002-000 WASHER1987-11-01~1990-01-01 |
09165-10002-000 |
from US $2.08 |
||
|
29
|
29
08310-12103-000 Nut1987-11-01~1990-01-01 |
08310-12103-000 |
US $0.61 |
||
| replacements | |||||
|
29
|
29
08310-0010B-000 NUT1987-11-01~1990-01-01 |
08310-0010B-000 |
from US $0.83 |
||
|
29
|
29
08310-0010A-000 NUT1987-11-01~1990-01-01 |
08310-0010A-000 |
from US $0.80 |
||
|
30
|
30
08310-22103-000 ナット1987-11-01~1990-01-01 |
08310-22103-000 |
US $1.07 |
||
| replacements | |||||
|
30
|
30
08310-0010A-000 NUT1987-11-01~1990-01-01 |
08310-0010A-000 |
from US $0.80 |
||
|
30
|
30
08310-0010B-000 NUT1987-11-01~1990-01-01 |
08310-0010B-000 |
from US $0.83 |
||
|
31
|
31
08322-21163-000
New Genuine Part
1987-11-01~1990-01-01 |
08322-21163-000 |
— | ||
| replacement | |||||
|
31
|
31
08322-0116A-000 WASHER1987-11-01~1990-01-01 |
08322-0116A-000 |
from US $0.80 |
||
|
32
|
32
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) 1987-11-01~1990-01-01 |
09160-12073-000 |
from US $0.79 |
||
|
33
|
33
08310-12123-000 NUT1987-11-01~1990-01-01 |
08310-12123-000 |
US $1.33 |
||
| replacement | |||||
|
33
|
33
08310-0012A-000 NUT1987-11-01~1990-01-01 |
08310-0012A-000 |
from US $0.76 |
||
