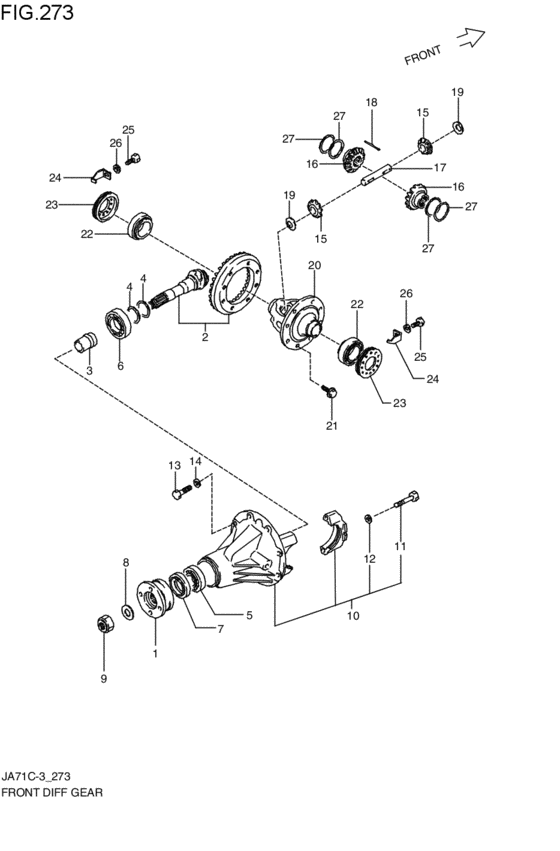

フロントデファレンシャルギヤ (1987-11-01~1990-01-01) Diagram Suzuki JIMNY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- YUSEI
- type
- TYPE3
- body
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-80401-000
フランジ,ユニバーサルジョイント
1987-11-01~1990-01-01 |
27110-80401-000 |
— | ||
| replacement | |||||
|
1
|
1
27110-80402-000 FLANGE,UNIVERSAL JOINT1987-11-01~1990-01-01 |
27110-80402-000 |
US $38.40 |
||
|
2
|
2
27300-80840-000
ベベルピニオン/ギヤセット,フロント
1987-11-01~1990-01-01 |
27300-80840-000 |
— | ||
|
3
|
3
27315-80000-000 SPACER PINION1987-11-01~1990-01-01 |
27315-80000-000 |
US $10.04 |
||
| replacement | |||||
|
3
|
3
27315-64P00-000 SPACER,DRIVE BEVEL PINION1987-11-01~1990-01-01 |
27315-64P00-000 |
from US $10.04 |
||
|
5
|
5
09265-25005-000
ベアリング,25X62X18.25
1987-11-01~1990-01-01 |
09265-25005-000 |
— | ||
| replacement | |||||
|
5
|
5
09265-25039-000 BEARING(25X62X18.25)1987-11-01~1990-01-01 |
09265-25039-000 |
from US $28.60 |
||
|
6
|
6
09265-30002-000
ベアリング,30X72X20.75
1987-11-01~1990-01-01 |
09265-30002-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-30010-000 BEARING(30X72X20.75)1987-11-01~1990-01-01 |
09265-30010-000 |
from US $45.60 |
||
|
7
|
7
09283-35008-000
Seal, oil (35x62x10)
1987-11-01~1990-01-01 |
09283-35008-000 |
— | ||
| replacement | |||||
|
7
|
7
09283-35052-000 SEAL,OIL(35X62X14.8)1987-11-01~1990-01-01 |
09283-35052-000 |
from US $10.34 |
||
|
8
|
8
09160-19010-000
Washer
1987-11-01~1990-01-01 |
09160-19010-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-19022-000 WASHER(19X32X3.2)Washer (19x32x3.2) 1987-11-01~1990-01-01 |
09160-19022-000 |
from US $1.92 |
||
|
9
|
9
09159-18003-000 NUT1987-11-01~1990-01-01 |
09159-18003-000 |
from US $1.92 |
||
|
10
|
10
27450-80712-000 CARIER ASSY DIFF1987-11-01~1990-01-01 |
27450-80712-000 |
US $120.26 |
||
| replacements | |||||
|
10
|
10
27450-80713-000 CARRIER ASSY,DIFF1987-11-01~1990-01-01 |
27450-80713-000 |
from US $120.26 |
||
|
10
|
10
09265-25039-000 BEARING(25X62X18.25)1987-11-01~1990-01-01 |
09265-25039-000 |
from US $28.60 |
||
|
10
|
10
09265-30018-000 BEARING(30X72X20.75)1987-11-01~1990-01-01 |
09265-30018-000 |
from US $40.80 |
||
|
11
|
11
09111-10043-000
ボルト
1987-11-01~1990-01-01 |
09111-10043-000 |
— | ||
| replacement | |||||
|
11
|
11
09111-10054-000 BOLT(10X50)1987-11-01~1990-01-01 |
09111-10054-000 |
from US $2.77 |
||
|
12
|
12
09162-10006-000
WASHER,LOCK
1987-11-01~1990-01-01 |
09162-10006-000 |
— | ||
|
13
|
13
01107-08253-000 Bolt m8x1.25x251987-11-01~1990-01-01 |
01107-08253-000 |
from US $1.04 |
||
| replacement | |||||
|
13
|
13
01500-0825A-000 Bolt1987-11-01~1990-01-01 |
01500-0825A-000 |
from US $0.91 |
||
|
14
|
14
08321-31083-000
New Genuine Part
1987-11-01~1990-01-01 |
08321-31083-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108A-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-0108A-000 |
from US $0.90 |
||
|
14
|
14
08321-0108B-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-0108B-000 |
from US $0.76 |
||
|
15
|
15
27331-83000-000 PINION DIFF1987-11-01~1990-01-01 |
27331-83000-000 |
US $34.31 |
||
| replacements | |||||
|
15
|
15
27331-76A20-000
PINION,DIFFERENTIAL
1987-11-01~1990-01-01 |
27331-76A20-000 |
— | ||
|
15
|
15
27331-83020-000 PINION,DIFFERENTIAL1987-11-01~1990-01-01 |
27331-83020-000 |
from US $32.31 |
||
|
15
|
15
27331-76A21-000 Pinion,differential1987-11-01~1990-01-01 |
27331-76A21-000 |
from US $31.91 |
||
|
16
|
16
27341-64B00-000
GEAR DIFFOLD
1987-11-01~1990-01-01 |
27341-64B00-000 |
— | ||
| replacements | |||||
|
16
|
16
27341-76A21-000
GEAR,DIFF
1987-11-01~1990-01-01 |
27341-76A21-000 |
— | ||
|
16
|
16
27341-76A22-000 Gear,diff1987-11-01~1990-01-01 |
27341-76A22-000 |
from US $43.56 |
||
|
17
|
17
27351-64B01-000
SHAFT DIFF SIDE PINION
1987-11-01~1990-01-01 |
27351-64B01-000 |
— | ||
| replacement | |||||
|
17
|
17
27351-64B20-000 SHAFT,DIFF SIDE PINION1987-11-01~1990-01-01 |
27351-64B20-000 |
from US $15.77 |
||
|
18
|
18
09205-05003-000 PIN,SPRING(5X45)1987-11-01~1990-01-01 |
09205-05003-000 |
from US $0.36 |
||
|
19
|
19
09164-15006-000 WASHER1987-11-01~1990-01-01 |
09164-15006-000 |
from US $1.67 |
||
|
20
|
20
27411-77300-000 CASE,DIFF GEAR1987-11-01~1990-01-01 |
27411-77300-000 |
from US $96.66 |
||
|
21
|
21
09103-10028-000
Bolt, oil pump drive gear
1987-11-01~1990-01-01 |
09103-10028-000 |
— | ||
| replacement | |||||
|
21
|
21
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear 1987-11-01~1990-01-01 |
09103-10290-000 |
from US $1.76 |
||
|
22
|
22
09265-41001-000 BEARING(41X68X17.5)1987-11-01~1990-01-01 |
09265-41001-000 |
from US $38.40 |
||
|
23
|
23
27461-63201-000 ADJUSTER,DIFF SIDE BEARING1987-11-01~1990-01-01 |
27461-63201-000 |
from US $6.37 |
||
|
24
|
24
27462-63202-000 PLATE,BEARING LOCK1987-11-01~1990-01-01 |
27462-63202-000 |
from US $2.74 |
||
|
25
|
25
01107-08126-000
Bolt 8x12
1987-11-01~1990-01-01 |
01107-08126-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-0812A-000 Bolt1987-11-01~1990-01-01 |
01500-0812A-000 |
from US $0.78 |
||
|
26
|
26
08321-21086-000
Wsherlck8.2x15.2x1.6
1987-11-01~1990-01-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
26
|
26
08321-0108B-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-0108B-000 |
from US $0.76 |
||
|
26
|
26
08321-0108A-000 WASHER,LOCK1987-11-01~1990-01-01 |
08321-0108A-000 |
from US $0.90 |
||
|
27
|
27
09160-35002-000 WASHER(35X46X1)1987-11-01~1990-01-01 |
09160-35002-000 |
from US $1.53 |
||
|
27
|
27
09160-35003-000 WASHER(35X46X1.1)1987-11-01~1990-01-01 |
09160-35003-000 |
from US $1.94 |
||
|
27
|
27
09160-35004-000 WASHER(35X46X1.2)1987-11-01~1990-01-01 |
09160-35004-000 |
from US $1.94 |
||
|
27
|
27
09160-35006-000 WASHER(35X46X0.9)1987-11-01~1990-01-01 |
09160-35006-000 |
from US $1.73 |
||
