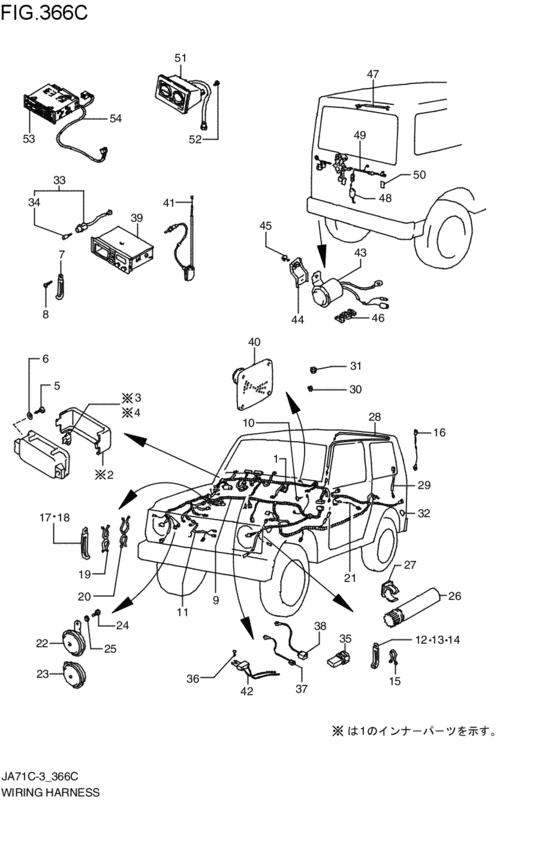

wire ring harness (1987-11-01~1990-01-01) Diagram Suzuki JIMNY
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- YUSEI
- type
- TYPE3
- body
- Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-71A30-000
ハーネスアッシ,ワイヤリング,NO.1
V:Z:YUSEI; 1987-11-01~1990-01-01 |
36610-71A30-000 |
— | ||
|
2
|
2
36717-80021-000
Cover,fuse box
1987-11-01~1990-01-01 |
36717-80021-000 |
— | ||
|
3
|
3
09481-10101-000 FUSE(10A)1987-11-01~1990-01-01 |
09481-10101-000 |
from US $0.79 |
||
|
4
|
4
09481-15101-000 FUSE(15A)Fuse (15a) 1987-11-01~1990-01-01 |
09481-15101-000 |
from US $1.01 |
||
|
5
|
5
03111-05126-000
New Genuine Part
1987-11-01~1990-01-01 |
03111-05126-000 |
— | ||
| replacement | |||||
|
5
|
5
03111-0512A-000 SCREW1987-11-01~1990-01-01 |
03111-0512A-000 |
from US $0.80 |
||
|
6
|
6
08322-21056-000
Washer
1987-11-01~1990-01-01 |
08322-21056-000 |
— | ||
| replacements | |||||
|
6
|
6
08322-0105B-000 WASHER1987-11-01~1990-01-01 |
08322-0105B-000 |
from US $0.76 |
||
|
6
|
6
08322-0105A-000 WASHERWasher, front 1987-11-01~1990-01-01 |
08322-0105A-000 |
from US $0.80 |
||
|
7
|
7
09404-06404-000
Clamp, fuel hose
1987-11-01~1990-01-01 |
09404-06404-000 |
— | ||
| replacements | |||||
|
7
|
7
09404-06434-000
CLAMP(L:80 T:1.0)
1987-11-01~1990-01-01 |
09404-06434-000 |
— | ||
|
7
|
7
09404-06433-000
CLAMP(L:80)
1987-11-01~1990-01-01 |
09404-06433-000 |
— | ||
|
7
|
7
09404-06436-000 Clamp(L:80)1987-11-01~1990-01-01 |
09404-06436-000 |
from US $2.13 |
||
|
7
|
7
09404-06036-000 Clamp(L:80)1987-11-01~1990-01-01 |
09404-06036-000 |
from US $1.82 |
||
|
7
|
7
09404-06405-000
Clamp
1987-11-01~1990-01-01 |
09404-06405-000 |
— | ||
| replacements | |||||
|
7
|
7
09404-06434-000
CLAMP(L:80 T:1.0)
1987-11-01~1990-01-01 |
09404-06434-000 |
— | ||
|
7
|
7
09404-06433-000
CLAMP(L:80)
1987-11-01~1990-01-01 |
09404-06433-000 |
— | ||
|
7
|
7
09404-06436-000 Clamp(L:80)1987-11-01~1990-01-01 |
09404-06436-000 |
from US $2.13 |
||
|
7
|
7
09404-06036-000 Clamp(L:80)1987-11-01~1990-01-01 |
09404-06036-000 |
from US $1.82 |
||
|
8
|
8
03141-05128-000
SCREW
1987-11-01~1990-01-01 |
03141-05128-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0512A-000 SCREWScrew, belt cooling duct 1987-11-01~1990-01-01 |
03141-0512A-000 |
from US $0.76 |
||
|
9
|
9
36620-71A10-000
ハーネスアッシ,ワイヤリング,NO.2
V:Z; 1987-11-01~1990-01-01 |
36620-71A10-000 |
— | ||
|
10
|
10
09129-06002-000 SCREW(6X12)1987-11-01~1990-01-01 |
09129-06002-000 |
from US $0.16 |
||
|
11
|
11
36650-83000-000
ハーネスアッシ,ワイヤリング,エンジン
V:Z; 1987-11-01~1990-01-01 |
36650-83000-000 |
— | ||
|
12
|
12
09404-06404-000
Clamp, fuel hose
1987-11-01~1990-01-01 |
09404-06404-000 |
— | ||
| replacements | |||||
|
12
|
12
09404-06434-000
CLAMP(L:80 T:1.0)
1987-11-01~1990-01-01 |
09404-06434-000 |
— | ||
|
12
|
12
09404-06433-000
CLAMP(L:80)
1987-11-01~1990-01-01 |
09404-06433-000 |
— | ||
|
12
|
12
09404-06436-000 Clamp(L:80)1987-11-01~1990-01-01 |
09404-06436-000 |
from US $2.13 |
||
|
12
|
12
09404-06036-000 Clamp(L:80)1987-11-01~1990-01-01 |
09404-06036-000 |
from US $1.82 |
||
|
13
|
13
09404-08404-000
Collier (l:100)
1987-11-01~1990-01-01 |
09404-08404-000 |
— | ||
| replacements | |||||
|
13
|
13
09404-08207-000
CLAMP(L:80)
1987-11-01~1990-01-01 |
09404-08207-000 |
— | ||
|
13
|
13
09404-08420-000 CLAMP(L:120 T:1.0)1987-11-01~1990-01-01 |
09404-08420-000 |
from US $1.22 |
||
|
13
|
13
09404-08212-000 Clamp1987-11-01~1990-01-01 |
09404-08212-000 |
from US $1.22 |
||
|
14
|
14
09404-08405-000
Clamp, drain tube
1987-11-01~1990-01-01 |
09404-08405-000 |
— | ||
| replacement | |||||
|
14
|
14
09404-08420-000 CLAMP(L:120 T:1.0)1987-11-01~1990-01-01 |
09404-08420-000 |
from US $1.22 |
||
|
15
|
15
09408-00008-000 CLIP(ID:20)Clamp, vacuum hose 1987-11-01~1990-01-01 |
09408-00008-000 |
from US $3.37 |
||
|
17
|
17
09404-08405-000
Clamp, drain tube
1987-11-01~1990-01-01 |
09404-08405-000 |
— | ||
| replacement | |||||
|
17
|
17
09404-08420-000 CLAMP(L:120 T:1.0)1987-11-01~1990-01-01 |
09404-08420-000 |
from US $1.22 |
||
|
18
|
18
09404-08405-000
Clamp, drain tube
1987-11-01~1990-01-01 |
09404-08405-000 |
— | ||
| replacement | |||||
|
18
|
18
09404-08420-000 CLAMP(L:120 T:1.0)1987-11-01~1990-01-01 |
09404-08420-000 |
from US $1.22 |
||
|
19
|
19
09408-00010-000 CLIP1987-11-01~1990-01-01 |
09408-00010-000 |
US $11.40 |
||
|
20
|
20
09408-00013-000 CLAMPClamp 1987-11-01~1990-01-01 |
09408-00013-000 |
US $1.92 |
||
|
21
|
21
36822-80001-000
REED WIRE,FUEL LEVEL GAUGE
1987-11-01~1990-01-01 |
36822-80001-000 |
— | ||
|
22
|
22
38500-83000-000
HORN ASSY
DENSO,ロ-ノ-ト; Z,U; 1987-11-01~1990-01-01 |
38500-83000-000 |
— | ||
| replacement | |||||
|
22
|
22
38500-60G00-000 HORN ASSYDENSO,ロ-ノ-ト; Z,U; 1987-11-01~1990-01-01 |
38500-60G00-000 |
from US $49.86 |
||
|
24
|
24
01107-08126-000
Bolt 8x12
V:Z; 1987-11-01~1990-01-01 |
01107-08126-000 |
— | ||
| replacement | |||||
|
24
|
24
01500-0812A-000 BoltV:Z; 1987-11-01~1990-01-01 |
01500-0812A-000 |
from US $0.78 |
||
|
25
|
25
08321-21086-000
Wsherlck8.2x15.2x1.6
V:Z; 1987-11-01~1990-01-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
25
|
25
08321-0108B-000 WASHER,LOCKV:Z; 1987-11-01~1990-01-01 |
08321-0108B-000 |
from US $0.76 |
||
|
25
|
25
08321-0108A-000 WASHER,LOCKV:Z; 1987-11-01~1990-01-01 |
08321-0108A-000 |
from US $0.90 |
||
|
26
|
26
39710-58010-000
シグナルアッシ,フレヤ(KARRIT)
1987-11-01~1990-01-01 |
39710-58010-000 |
— | ||
| replacement | |||||
|
26
|
26
76470-84B00-000
シグナルアッシ,フレヤ(KARRIT)
1987-11-01~1990-01-01 |
76470-84B00-000 |
— | ||
|
27
|
27
09403-32301-000 HOLDER1987-11-01~1990-01-01 |
09403-32301-000 |
from US $0.81 |
||
|
28
|
28
36890-66700-000
Wire,defogger lead
V; 1987-11-01~1990-01-01 |
36890-66700-000 |
— | ||
|
29
|
29
36891-66700-000
リードワイヤ,デフォッガアース
V; 1987-11-01~1990-01-01 |
36891-66700-000 |
— | ||
|
30
|
30
09308-06003-000 GROMMETV; 1987-11-01~1990-01-01 |
09308-06003-000 |
US $16.20 |
||
|
31
|
31
09308-050A1-000
グロメット
V; 1987-11-01~1990-01-01 |
09308-050A1-000 |
— | ||
| replacement | |||||
|
31
|
31
09308-05011-000 GROMMETV; 1987-11-01~1990-01-01 |
09308-05011-000 |
US $9.20 |
||
|
32
|
32
67627-70000-000
シール,ホール
V; 1987-11-01~1990-01-01 |
67627-70000-000 |
— | ||
| replacement | |||||
|
32
|
32
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole V; 1987-11-01~1990-01-01 |
84761-50X50-000 |
from US $6.72 |
||
|
35
|
35
33552-86000-000 FILTER,NOISE SUPPRESSOR1987-11-01~1990-01-01 |
33552-86000-000 |
from US $11 |
||
|
36
|
36
03141-06123-000
Screw 6x12
1987-11-01~1990-01-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
36
|
36
03141-0612A-000 SCREW1987-11-01~1990-01-01 |
03141-0612A-000 |
US $0.76 |
||
|
37
|
37
39312-70A00-000
ワイヤ,ノイズサプレッサ,NO.1
1987-11-01~1990-01-01 |
39312-70A00-000 |
— | ||
| replacement | |||||
|
37
|
37
39312-60B20-000 WIRE,NOISE SUPPR NO.11987-11-01~1990-01-01 |
39312-60B20-000 |
US $2.72 |
||
|
38
|
38
39312-83010-000
ワイヤ,ノイズサプレッサ,NO.2
1987-11-01~1990-01-01 |
39312-83010-000 |
— | ||
| replacement | |||||
|
38
|
38
39312-60G00-000 WIRE,NOISE SUPPR1987-11-01~1990-01-01 |
39312-60G00-000 |
from US $3.44 |
||
|
43
|
43
38750-64722-000
ホーンアッシ,バックアップ
DENSO; V:Z:YUSEI; 1987-11-01~1990-01-01 |
38750-64722-000 |
— | ||
|
44
|
44
75441-80180-000
ブラケット,ホーン
V:Z:YUSEI; 1987-11-01~1990-01-01 |
75441-80180-000 |
— | ||
|
45
|
45
01517-06123-000
Bolt
V:Z:YUSEI; 1987-11-01~1990-01-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
45
|
45
01550-0612B-000 BoltBolt, clamp V:Z:YUSEI; 1987-11-01~1990-01-01 |
01550-0612B-000 |
from US $0.76 |
||
|
45
|
45
01550-0612A-000 BoltV:Z:YUSEI; 1987-11-01~1990-01-01 |
01550-0612A-000 |
from US $0.76 |
||
|
46
|
46
36860-69100-000
コネクタ
V:Z:YUSEI; 1987-11-01~1990-01-01 |
36860-69100-000 |
— | ||
|
47
|
47
36680-78800-000
ワイヤ,キャリアランプ
V:Z:YUSEI; 1987-11-01~1990-01-01 |
36680-78800-000 |
— | ||
|
48
|
48
82550-70A00-000
ソレノイド,バックドアラッチ
V:Z:YUSEI; 1987-11-01~1990-01-01 |
82550-70A00-000 |
— | ||
|
49
|
49
36840-83000-000
ワイヤ,バックドア
V:Z:YUSEI; 1987-11-01~1990-01-01 |
36840-83000-000 |
— | ||
|
50
|
50
36930-82000-000
カバー
V:Z:YUSEI; 1987-11-01~1990-01-01 |
36930-82000-000 |
— | ||
| replacement | |||||
|
50
|
50
36930-82010-000 COVER,HARNESSCover, roof wire V:Z:YUSEI; 1987-11-01~1990-01-01 |
36930-82010-000 |
from US $1.51 |
||
