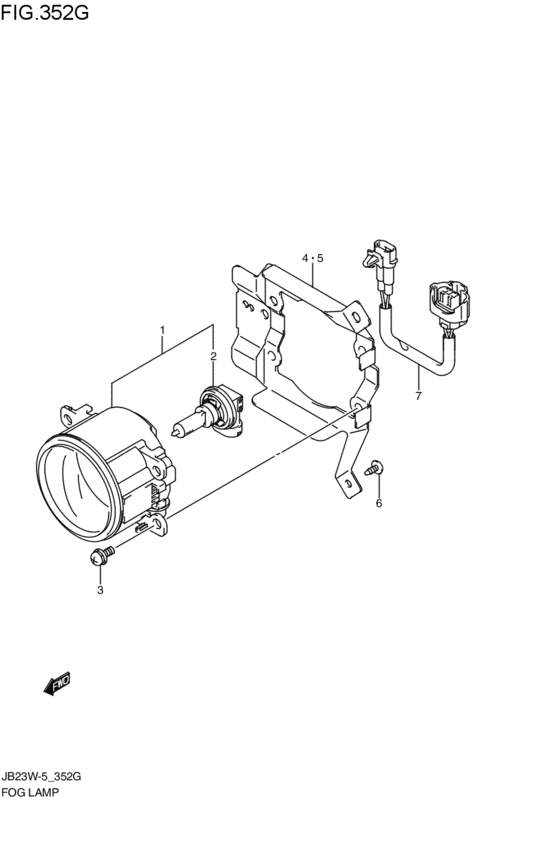

fog light (XC,XCA; 2004-10-01~2005-10-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XC
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-72J00-000
ランプアッシ,フォグ
XC,XCA; 2004-10-01~2005-10-01 |
35500-72J00-000 |
— | ||
|
2
|
2
09471-12211-000 BULB(12V35W,H8)XC,XCA; 2004-10-01~2005-10-01 |
09471-12211-000 |
from US $19.60 |
||
|
3
|
3
02112-75163-000
Screw
XC,XCA; 2004-10-01~2005-10-01 |
02112-75163-000 |
— | ||
| replacements | |||||
|
3
|
3
02112-7516B-000 SCREWXC,XCA; 2004-10-01~2005-10-01 |
02112-7516B-000 |
from US $1.12 |
||
|
3
|
3
02112-7516A-000 SCREWScrew, gear shift XC,XCA; 2004-10-01~2005-10-01 |
02112-7516A-000 |
from US $0.96 |
||
|
4
|
4
35526-81A20-000
ブラケット,フォグランプ,ライト
XC,XCA; 2004-10-01~2005-10-01 |
35526-81A20-000 |
— | ||
|
5
|
5
35566-81A20-000
ブラケット,フォグランプ,レフト
XC,XCA; 2004-10-01~2005-10-01 |
35566-81A20-000 |
— | ||
|
6
|
6
03541-05123-000
Screw
XC,XCA; 2004-10-01~2005-10-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0512B-000 SCREWXC,XCA; 2004-10-01~2005-10-01 |
03541-0512B-000 |
from US $0.76 |
||
|
7
|
7
36813-54G20-000 WIRE,FR FOG LAMPXC,XCA; 2004-10-01~ |
36813-54G20-000 |
from US $19.85 |
||
