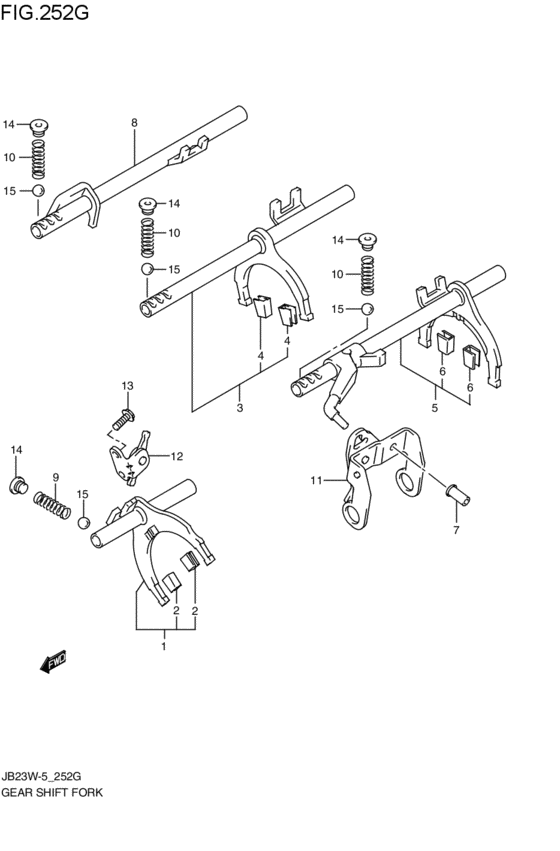

mt - gearlever fork (MT; 2004-10-01~2005-10-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XC
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25210-76J00-000
FORK ASSYLOW SPEED GEAR SHIFT
MT; 2004-10-01~2005-10-01 |
25210-76J00-000 |
— | ||
| replacement | |||||
|
1
|
1
25210-76J01-000 FORK ASSY,LOW SPEED GEAR SHIFTMT; 2004-10-01~2005-10-01 |
25210-76J01-000 |
from US $60.80 |
||
|
2
|
2
25212-76J00-000
BUSH GEAR SHIFT FORK
MT; 2004-10-01~2005-10-01 |
25212-76J00-000 |
— | ||
|
3
|
3
25220-76J00-000
FORK ASSYHIGH SPEED GR SHIFT
MT; 2004-10-01~2005-10-01 |
25220-76J00-000 |
— | ||
| replacement | |||||
|
3
|
3
25220-76J02-000 FORK ASSY,HIGH SPEED GR SHIFTMT; 2004-10-01~2005-10-01 |
25220-76J02-000 |
from US $53.39 |
||
|
4
|
4
25212-76J00-000
BUSH GEAR SHIFT FORK
MT; 2004-10-01~2005-10-01 |
25212-76J00-000 |
— | ||
|
5
|
5
25230-76J00-000
FORK ASSY5TH REV GEAR SHIFT
MT; 2004-10-01~2005-10-01 |
25230-76J00-000 |
— | ||
| replacement | |||||
|
5
|
5
25230-76J01-000 FORK ASSY,5TH&REV GEAR SHIFTMT; 2004-10-01~2005-10-01 |
25230-76J01-000 |
from US $51.98 |
||
|
6
|
6
25212-76J00-000
BUSH GEAR SHIFT FORK
MT; 2004-10-01~2005-10-01 |
25212-76J00-000 |
— | ||
|
7
|
7
25250-77A00-000 LOCATINGMT; 2004-10-01~2005-10-01 |
25250-77A00-000 |
from US $4.68 |
||
|
8
|
8
25410-76J00-000 SHAFT,LOW SPEED GEAR SHIFTMT; 2004-10-01~2005-10-01 |
25410-76J00-000 |
from US $44.73 |
||
|
9
|
9
25415-76J00-000 SPRING,LOW SPEED LOCATINGMT; 2004-10-01~2005-10-01 |
25415-76J00-000 |
from US $2.50 |
||
|
10
|
10
25425-76J00-000 SPRING,HIGH&5TH LOCATINGMT; 2004-10-01~2005-10-01 |
25425-76J00-000 |
from US $2.50 |
||
|
11
|
11
25460-76J00-000 LEVER,REV GEAR SHFMT; 2004-10-01~2005-10-01 |
25460-76J00-000 |
from US $19.53 |
||
|
12
|
12
25470-84A01-000
LEVER LOW GR SHF INVERSE
MT; 2004-10-01~2005-10-01 |
25470-84A01-000 |
— | ||
| replacement | |||||
|
12
|
12
25470-84A02-000 LEVER,LOW GR SHF INVERSEMT; 2004-10-01~2005-10-01 |
25470-84A02-000 |
from US $13.46 |
||
|
13
|
13
09103-08266-000 BOLT(8X20)Bolt, lower MT; 2004-10-01~2005-10-01 |
09103-08266-000 |
from US $0.91 |
||
|
14
|
14
09247-10012-000 BOLT(10X10.5)MT; 2004-10-01~2005-10-01 |
09247-10012-000 |
US $15.10 |
||
|
15
|
15
06111-10003-000 BALLMT; 2004-10-01~2005-10-01 |
06111-10003-000 |
from US $0.96 |
||
