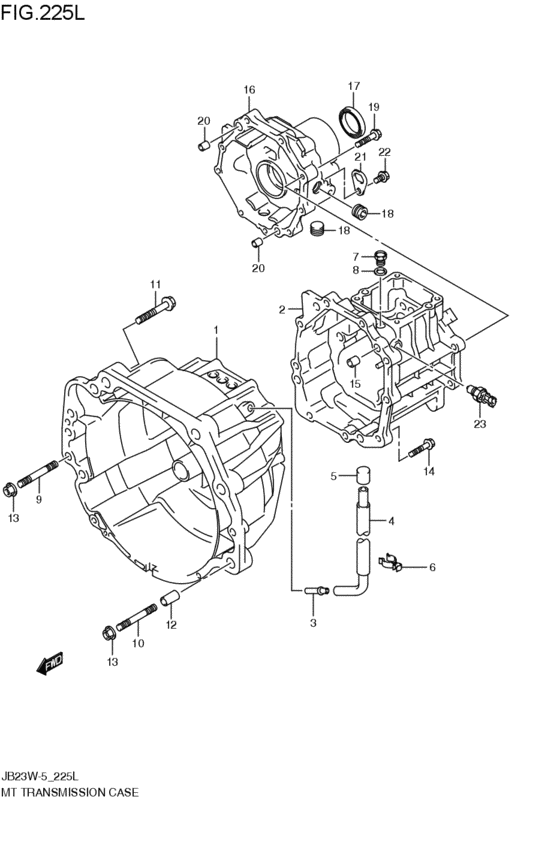

mt - transmission case (MT; 2004-10-01~2005-10-01) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XC
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-76J00-000
ケース,トランスミッション,フロント
MT; 2004-10-01~2005-10-01 |
24711-76J00-000 |
— | ||
| replacement | |||||
|
1
|
1
24711-76J02-000 CASE,T/M,FRMT; 2004-10-01~2005-10-01 |
24711-76J02-000 |
US $393.76 |
||
|
2
|
2
24721-76J00-000
CASE,T/M,RR
MT; 2004-10-01~2005-10-01 |
24721-76J00-000 |
— | ||
| replacement | |||||
|
2
|
2
24721-76J01-000 Case,transmission RearMT; 2004-10-01~2005-10-01 |
24721-76J01-000 |
from US $207.92 |
||
|
3
|
3
24821-59J00-000 UNION,BREATHERMT; 2004-10-01~2005-10-01 |
24821-59J00-000 |
from US $1.64 |
||
|
4
|
4
25585-84A00-000 HOSE,T/M BREATHERMT; 2004-10-01~2005-10-01 |
25585-84A00-000 |
from US $8.98 |
||
|
5
|
5
27991-65D01-000 PLUG,BREATHERMT; 2004-10-01~2005-10-01 |
27991-65D01-000 |
from US $1.92 |
||
|
6
|
6
09408-00236-000 CLAMPMT; 2004-10-01~2005-10-01 |
09408-00236-000 |
US $24.30 |
||
|
7
|
7
09247-14029-000 PLUGMT; 2004-10-01~2005-10-01 |
09247-14029-000 |
from US $1.60 |
||
|
8
|
8
09168-14011-000 GASKET(14X20X1.5)MT; 2004-10-01~2005-10-01 |
09168-14011-000 |
from US $0.72 |
||
|
9
|
9
01421-10403-000
New Genuine Part
MT; 2004-10-01~2005-10-01 |
01421-10403-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-1040A-000 BOLT,STUDMT; 2004-10-01~2005-10-01 |
01421-1040A-000 |
from US $1.52 |
||
|
10
|
10
01421-10453-000
Stud 10x45
MT; 2004-10-01~2005-10-01 |
01421-10453-000 |
— | ||
| replacement | |||||
|
10
|
10
01421-1045A-000 BOLT,STUDMT; 2004-10-01~2005-10-01 |
01421-1045A-000 |
US $16.20 |
||
|
11
|
11
01550-10503-000
Bolt
MT; 2004-10-01~2005-10-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1050B-000 BoltMT; 2004-10-01~2005-10-01 |
01550-1050B-000 |
US $1.22 |
||
|
12
|
12
04211-13149-000 PINMT; 2004-10-01~2005-10-01 |
04211-13149-000 |
from US $1.44 |
||
|
13
|
13
08316-10103-000
Nut
MT; 2004-10-01~2005-10-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1010B-000 NUTMT; 2004-10-01~2005-10-01 |
08316-1010B-000 |
from US $0.80 |
||
|
14
|
14
01550-08403-000
Bolt
MT; 2004-10-01~2005-10-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0840B-000 BoltMT; 2004-10-01~2005-10-01 |
01550-0840B-000 |
from US $1.12 |
||
|
14
|
14
01550-0840A-000 BoltMT; 2004-10-01~2005-10-01 |
01550-0840A-000 |
from US $1.12 |
||
|
15
|
15
04211-13149-000 PINMT; 2004-10-01~2005-10-01 |
04211-13149-000 |
from US $1.44 |
||
|
16
|
16
24770-76J00-000
Case comp,extension
MT; 2004-10-01~2005-10-01 |
24770-76J00-000 |
— | ||
| replacement | |||||
|
16
|
16
24770-76J01-000 CASE,EXTENSIONMT; 2004-10-01~2005-10-01 |
24770-76J01-000 |
from US $200.66 |
||
|
17
|
17
24780-83010-000 SEAL,EXTENSION CASE OILMT; 2004-10-01~2005-10-01 |
24780-83010-000 |
from US $6.17 |
||
|
18
|
18
09246-16010-000 PLUGMT; 2004-10-01~2005-10-01 |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
18
|
18
09246-16021-000 Plug,t/m Oil DrainMT; 2004-10-01~2005-10-01 |
09246-16021-000 |
from US $4.37 |
||
|
19
|
19
01550-08403-000
Bolt
MT; 2004-10-01~2005-10-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0840B-000 BoltMT; 2004-10-01~2005-10-01 |
01550-0840B-000 |
from US $1.12 |
||
|
19
|
19
01550-0840A-000 BoltMT; 2004-10-01~2005-10-01 |
01550-0840A-000 |
from US $1.12 |
||
|
20
|
20
04211-13149-000 PINMT; 2004-10-01~2005-10-01 |
04211-13149-000 |
from US $1.44 |
||
|
21
|
21
11851-72B21-000 HOOK,ENGINEMT; 2004-10-01~2005-10-01 |
11851-72B21-000 |
from US $1.78 |
||
|
22
|
22
01550-08163-000
Bolt, holder
MT; 2004-10-01~2005-10-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0816B-000 BoltMT; 2004-10-01~2005-10-01 |
01550-0816B-000 |
from US $0.91 |
||
|
22
|
22
01550-0816A-000 BoltBolt, rear MT; 2004-10-01~2005-10-01 |
01550-0816A-000 |
from US $0.91 |
||
|
23
|
23
37610-76G10-000 SWITCH ASSY,BACK UPMT; 2004-10-01~2005-10-01 |
37610-76G10-000 |
from US $18.09 |
||
